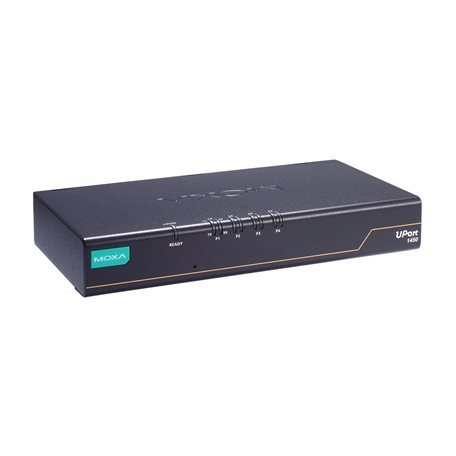

Moxa UPort 1450-G2-T

Moxa UPort 1450-G2-T

Artikelnummer: UPort 1450-G2-T
Kategorie: UPort 1400-G2 Series
Hersteller: Moxa

USB to 4-port RS-232/422/485 converter, -40 to 75°C operating temperature

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.

Beschreibung

UPort 1450-G2-T

UPort 1400-G2 Series

USB to 4-port RS-232/422/485 converter, -40 to 75°C operating temperature

USB Interface

USB Standards
- USB 3.2 Gen 1
  USB 1.1/2.0 compliant
Speed
- 5 Gbps, 480 Mbps, 12 Mbps
No. of USB Ports
- 1
USB Connector
- USB Type B

Serial Interface

Connector
- DB9 male
No. of Ports
- 4
Serial Standards
- RS-232/422/485
FIFO
- 512 bytes
Baudrate
- 50 bps to 921.6 kbps (supports non-standard baudrates)
Parity
- None, Even, Odd, Space, Mark
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Flow Control
- RTS/CTS, XON/XOFF
RS-485 Data Direction Control
- Automatic Data Direction Control (ADDC)
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
- 120 ohms
Surge
- 0.5 kV
Isolation
- 2 kV (I models)

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND

Serial Software Features

Windows Drivers
- Windows 11, 10, 8.1, 8 and 7
  Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2
Linux Drivers
- Kernel 6.x, 5.x and 4.x
Mac Drivers
- macOS version (Intel 64): 13, 12, 11 and 10.1x
Virtual Machine
- VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64)
  VMWare ESXi (Linux kernel 4)
  Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)
Arm®-based Platform Support
- Linux kernel 6.x, 5.x and 4.x
Android API
- Android 3.1.x and later

Power Parameters

Input Voltage
- 5 VDC by USB bus power or 12 to 48 VDC by external power adaptor
Input Current
- 266 mA @ USB 2.0
  452 mA @ USB 3.2
  240 mA @ 12 VDC

Physical Characteristics

Housing
- Metal
Dimensions
- 185 x 30 x 90.6 mm (7.28 x 1.18 x 3.57 in)
Weight
- 373 g (0.82 lb)
IP Rating
- IP20

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature
- -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV
  IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV
  IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz
  IEC 61000-4-8 PFMF
Safety
- IEC 62368-1
  EN 62368-1
  UL 62368-1 (CB)
  KC
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
  IEC 60068-2-64
Freefall
- IEC 60068-2-31

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Standards
- Telcordia Standard SR332, Telcordia Issue 2
Time
- 1,431,860 hrs
