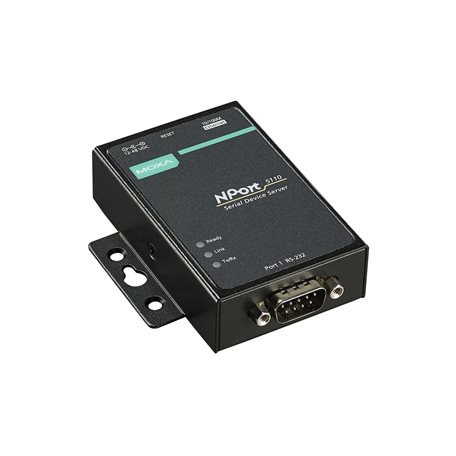

Moxa NPort 5110-T

Moxa NPort 5110-T

Artikelnummer: NPort 5110-T
Kategorie: NPort 5100 Series
Hersteller: Moxa

1-port RS-232 device server, -40 to 75°C operating temperature

217,66 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

NPort 5110-T

NPort 5100 Series

1-port RS-232 device server, -40 to 75°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 1
Magnetic Isolation Protection
- 1.5 kV (built-in)

Ethernet Software Features

Configuration Options
- Serial Console
  Windows Utility
  Telnet Console
  Web Console (HTTP)
Management
- DHCP Client
  IPv4
  SMTP
  SNMPv1
  Telnet
  DNS
  HTTP
  ARP
  BOOTP
  UDP
  TCP/IP
  ICMP
Windows Real COM Drivers
- Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
  Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
  Windows Embedded CE 6.0 and 5.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Fixed TTY Drivers
- macOS versions: 14, 13, 12, 11, and 10.1x
  SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support
- Windows 11
  Linux kernel 6.x, 5.x, and 4.x
  macOS 14, 13, 12, and 11
Virtual Machine
- VMWare ESXi (Windows 11/10)
  VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
  Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
Android API
- Android 3.1.x and later
MIB
- RFC1213, RFC1317

Security Functions

Authentication
- Local database (password only)

Serial Interface

Connector
- DB9 male
No. of Ports
- 1
Serial Standards
- RS-232
Operation Modes
- Disabled
  Ethernet Modem
  Pair Connection
  Real COM
  Reverse Telnet
  TCP Client
  TCP Server
  UDP
Baudrate
- 110 bps to 230.4 kbps
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- RTS/CTS (RS-232 only)
  DTR/DSR (RS-232 only)
  XON/XOFF

Power Parameters

Input Current
- 128.7 mA @ 12 VDC
Input Voltage
- 12 to 48 VDC
No. of Power Inputs
- 1
Source of Input Power
- Power input jack

Physical Characteristics

Housing
- Metal
Installation
- Desktop
  DIN-rail mounting (with optional kit)
  Wall mounting
Dimensions (with ears)
- 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)
Dimensions (without ears)
- 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
Weight
- 340 g (0.75 lb)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Safety
- EN 62368-1
  IEC 62368-1
  UL 60950-1

MTBF

Time
- 3,126,448 hrs
Standards
- Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
