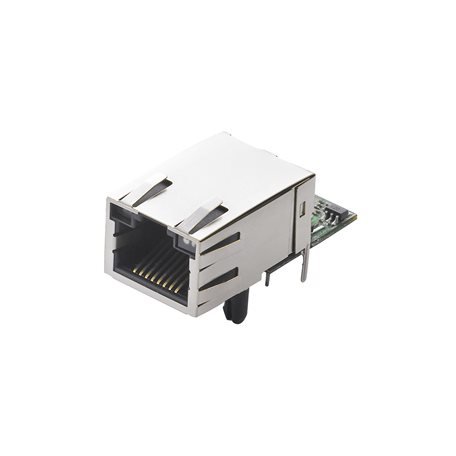

Moxa MiiNePort E1-T

Moxa MiiNePort E1-T

Artikelnummer: MiiNePort E1-T
Kategorie: MiiNePort E1 Series
Hersteller: Moxa

Embedded device server for TTL devices, drop-in module, 10/100M with RJ45 connector, -40 to 85°C operating temperature

87,22 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

MiiNePort E1-T

MiiNePort E1 Series

Embedded device server for TTL devices, drop-in module, 10/100M with RJ45 connector, -40 to 85°C operating temperature

Embedded System

CPU
- 32-bit Arm Core

Memory

Flash
- 2 MB
SDRAM
- 4 MB

Input/Output Interface

Configurable DIO Channels (by software)
- 1
Digital Input Channels
- 1
Digital Output Channels
- 1

Ethernet Interface

10/100BaseT(X) Ports, Auto MDI/MDI-X
- 8-pin RJ45
Magnetic Isolation Protection
- 1.5 kV (built-in)

Ethernet Software Features

Configuration Options
- Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
Management
- ARP, BOOTP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, ICMP
Windows Real COM Drivers
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
- SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API
- Android 3.1.x and later

Serial Interface

No. of Ports
- 1
Serial Standards
- TTL
Operation Modes
- Real COM mode, TCP Client, TCP Server, UDP mode, RFC2217
Baudrate
- 50 bps to 230.4 kbps
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- None, RTS/CTS, XON/XOFF

Serial Signals

TTL
- • TxD, RxD, RTS, CTS, RST (reset circuit), GND

NetEZ Technology

NetEZ Functions
- ExTrigger, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-Channel Serial Communication)

Power Parameters

Input Current
- 160 mA @ 3.3 VDC
Input Voltage
- 3.3 VDC

Physical Characteristics

Dimensions
- 33.9 x 16.25 x 13.5 mm (1.33 x 0.64 x 0.53 in)
Weight
- 9 g (0.02 lb)
Form Factor Type
- Drop-in modules

Environmental Limits

Operating Temperature
- -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
- -40 to 60°C (-40 to 140°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class B
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-3
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 5,515,294 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
