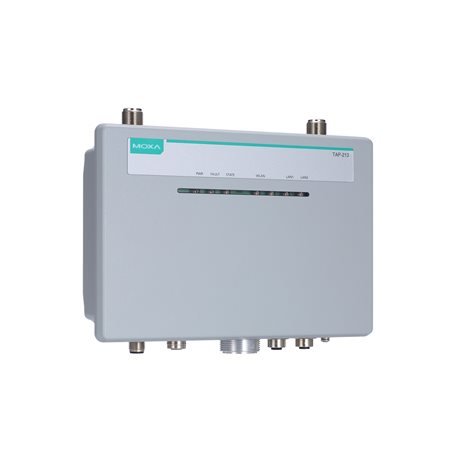

Moxa TAP-213-US-CT-T

Artikelnummer: TAP-213-US-CT-T
Kategorie: TAP-213 Series
Hersteller: Moxa

802.11n railway onboard outdoor single radio access point/client, M12, US band, IP68, -40 to 75°C operating temperature, conformal coating

3.084,06 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TAP-213-US-CT-T

TAP-213 Series

802.11n railway onboard outdoor single radio access point/client, M12, US band, IP68, -40 to 75°C operating temperature, conformal coating

WLAN Interface

Channel Bandwidth
- 20 MHz, 40 MHz
Frequency Band for US (20 MHz operating channels)
- 2.412 to 2.462 GHz (11 channels)
  5.180 to 5.240 GHz (4 channels)
  5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5.500 to 5.700 GHz (8 channels) Excludes 5.600 to 5.640 DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5745 to 5825 GHz (5 channels)
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
- Typ. -90 @ 6 Mbps
  Typ. -88 @ 9 Mbps
  Typ. -88 @ 12 Mbps
  Typ. -85 @ 18 Mbps
  Typ. -81 @ 24 Mbps
  Typ. -78 @ 36 Mbps
  Typ. -74 @ 48 Mbps
  Typ. -74 @ 54 Mbps
  Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
- Typ. -88 dBm @ MCS0 20 MHz
  Typ. -85 dBm @ MCS1 20 MHz
  Typ. -82 dBm @ MCS2 20 MHz
  Typ. -79 dBm @ MCS3 20 MHz
  Typ. -76 dBm @ MCS4 20 MHz
  Typ. -71 dBm @ MCS5 20 MHz
  Typ. -70 dBm @ MCS6 20 MHz
  Typ. -69 dBm @ MCS7 20 MHz
  Typ. -95 dBm @ MCS8 20 MHz
  Typ. -91 dBm @ MCS9 20 MHz
  Typ. -87 dBm @ MCS10 20 MHz
  Typ. -80 dBm @ MCS11 20 MHz
  Typ. -78 dBm @ MCS12 20 MHz
  Typ. -74 dBm @ MCS13 20 MHz
  Typ. -72 dBm @ MCS14 20 MHz
  Typ. -71 dBm @ MCS15 20 MHz
  Typ. -84 dBm @ MCS0 40 MHz
  Typ. -81 dBm @ MCS1 40 MHz
  Typ. -77 dBm @ MCS2 40 MHz
  Typ. -75 dBm @ MCS3 40 MHz
  Typ. -71 dBm @ MCS4 40 MHz
  Typ. -67 dBm @ MCS5 40 MHz
  Typ. -64 dBm @ MCS6 40 MHz
  Typ. -63 dBm @ MCS7 40 MHz
  Typ. -90 dBm @ MCS8 40 MHz
  Typ. -85 dBm @ MCS9 40 MHz
  Typ. -82 dBm @ MCS10 40 MHz
  Typ. -81 dBm @ MCS11 40 MHz
  Typ. -77 dBm @ MCS12 40 MHz
  Typ. -73 dBm @ MCS13 40 MHz
  Typ. -71 dBm @ MCS14 40 MHz
  Typ. -68 dBm @ MCS15 40 MHz
  Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
- Typ. -93 dBm @ 1 Mbps
  Typ. -93 dBm @ 2 Mbps
  Typ. -93 dBm @ 5.5 Mbps
  Typ. -88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
- Typ. -90 dBm @ 6 Mbps
  Typ. -88 dBm @ 9 Mbps
  Typ. -88 dBm @ 12 Mbps
  Typ. -85 dBm @ 18 Mbps
  Typ. -81 dBm @ 24 Mbps
  Typ. -78 dBm @ 36 Mbps
  Typ. -74 dBm @ 48 Mbps
  Typ. -74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
- Typ. -89 dBm @ MCS0 20 MHz
  Typ. -85 dBm @ MCS1 20 MHz
  Typ. -85 dBm @ MCS2 20 MHz
  Typ. -82 dBm @ MCS3 20 MHz
  Typ. -78 dBm @ MCS4 20 MHz
  Typ. -74 dBm @ MCS5 20 MHz
  Typ. -72 dBm @ MCS6 20 MHz
  Typ. -70 dBm @ MCS7 20 MHz
  Typ. -95 dBm @ MCS8 20 MHz
  Typ. -90 dBm @ MCS9 20 MHz
  Typ. -87 dBm @ MCS10 20 MHz
  Typ. -83 dBm @ MCS11 20 MHz
  Typ. -80 dBm @ MCS12 20 MHz
  Typ. -74 dBm @ MCS13 20 MHz
  Typ. -71 dBm @ MCS14 20 MHz
  Typ. -69 dBm @ MCS15 20 MHz
  Typ. -87 dBm @ MCS0 40 MHz
  Typ. -83 dBm @ MCS1 40 MHz
  Typ. -83 dBm @ MCS2 40 MHz
  Typ. -80 dBm @ MCS3 40 MHz
  Typ. -76 dBm @ MCS4 40 MHz
  Typ. -73 dBm @ MCS5 40 MHz
  Typ. -69 dBm @ MCS6 40 MHz
  Typ. -67 dBm @ MCS7 40 MHz
  Typ. -93 dBm @ MCS8 40 MHz
  Typ. -88 dBm @ MCS9 40 MHz
  Typ. -85 dBm @ MCS10 40 MHz
  Typ. -82 dBm @ MCS11 40 MHz
  Typ. -78 dBm @ MCS12 40 MHz
  Typ. -73 dBm @ MCS13 40 MHz
  Typ. -69 dBm @ MCS14 40 MHz
  Typ. -67 dBm @ MCS15 40 MHz
Modulation Type
- DSSS
  MIMO-OFDM
  OFDM
Transmission Rate
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  802.11b: 1, 2, 5.5, 11 Mbps
  802.11n HT20: 6.5 to 144.4 Mbps (MCS0 to MCS15)
  802.11n HT40: 13.5 to 300 Mbps (MCS0 to MCS15)
Transmitter Power for 802.11a
- 23±1.5 dBm @ 6 Mbps
  23±1.5 dBm @ 12 Mbps
  23±1.5 dBm @ 24 Mbps
  21±1.5 dBm @ 36 Mbps
  20±1.5 dBm @ 48 Mbps
  18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz)
- 23±1.5 dBm @ MCS0 20 MHz
  20±1.5 dBm @ MCS1 20 MHz
  20±1.5 dBm @ MCS2 20 MHz
  20±1.5 dBm @ MCS3 20 MHz
  19±1.5 dBm @ MCS4 20 MHz
  18±1.5 dBm @ MCS5 20 MHz
  18±1.5 dBm @ MCS6 20 MHz
  18±1.5 dBm @ MCS7 20 MHz
  23±1.5 dBm @ MCS8 20 MHz
  20±1.5 dBm @ MCS9 20 MHz
  20±1.5 dBm @ MCS10 20 MHz
  20±1.5 dBm @ MCS11 20 MHz
  19±1.5 dBm @ MCS12 20 MHz
  19±1.5 dBm @ MCS13 20 MHz
  18±1.5 dBm @ MCS14 20 MHz
  18±1.5 dBm @ MCS15 20 MHz
  23±1.5 dBm @ MCS0 40 MHz
  20±1.5 dBm @ MCS1 40 MHz
  20±1.5 dBm @ MCS2 40 MHz
  20±1.5 dBm @ MCS3 40 MHz
  19±1.5 dBm @ MCS4 40 MHz
  18±1.5 dBm @ MCS5 40 MHz
  18±1.5 dBm @ MCS6 40 MHz
  18±1.5 dBm @ MCS7 40 MHz
  23±1.5 dBm @ MCS8 40 MHz
  20±1.5 dBm @ MCS9 40 MHz
  20±1.5 dBm @ MCS10 40 MHz
  20±1.5 dBm @ MCS11 40 MHz
  19±1.5 dBm @ MCS12 40 MHz
  19±1.5 dBm @ MCS13 40 MHz
  18±1.5 dBm @ MCS14 40 MHz
  18±1.5 dBm @ MCS15 40 MHz
Transmitter Power for 802.11b
- 26±1.5 dBm @ 1 Mbps
  26±1.5 dBm @ 2 Mbps
  26±1.5 dBm @ 5.5 Mbps
  25±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g
- 23±1.5 dBm @ 6 Mbps
  23±1.5 dBm @ 12 Mbps
  23±1.5 dBm @ 24 Mbps
  21±1.5 dBm @ 36 Mbps
  20±1.5 dBm @ 48 Mbps
  18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz)
- 23±1.5 dBm @ MCS0 20 MHz
  21±1.5 dBm @ MCS1 20 MHz
  21±1.5 dBm @ MCS2 20 MHz
  21±1.5 dBm @ MCS3 20 MHz
  20±1.5 dBm @ MCS4 20 MHz
  19±1.5 dBm @ MCS5 20 MHz
  18±1.5 dBm @ MCS6 20 MHz
  18±1.5 dBm @ MCS7 20 MHz
  23±1.5 dBm @ MCS8 20 MHz
  21±1.5 dBm @ MCS9 20 MHz
  21±1.5 dBm @ MCS10 20 MHz
  21±1.5 dBm @ MCS11 20 MHz
  20±1.5 dBm @ MCS12 20 MHz
  19±1.5 dBm @ MCS13 20 MHz
  18±1.5 dBm @ MCS14 20 MHz
  18±1.5 dBm @ MCS15 20 MHz
  23±1.5 dBm @ MCS0 40 MHz
  20±1.5 dBm @ MCS1 40 MHz
  20±1.5 dBm @ MCS2 40 MHz
  20±1.5 dBm @ MCS3 40 MHz
  19±1.5 dBm @ MCS4 40 MHz
  19±1.5 dBm @ MCS5 40 MHz
  18±1.5 dBm @ MCS6 40 MHz
  17±1.5 dBm @ MCS7 40 MHz
  23±1.5 dBm @ MCS8 40 MHz
  20±1.5 dBm @ MCS9 40 MHz
  20±1.5 dBm @ MCS10 40 MHz
  20±1.5 dBm @ MCS11 40 MHz
  20±1.5 dBm @ MCS12 40 MHz
  19±1.5 dBm @ MCS13 40 MHz
  18±1.5 dBm @ MCS14 40 MHz
  17±1.5 dBm @ MCS15 40 MHz
Wireless Security
- WEP encryption (64-bit and 128-bit)
  WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
  WPA/WPA2-Personal
WLAN Antenna Connector
- 2 N-type female
WLAN Operation Mode
- Access point, Client, Client-Router, Sniffer
WLAN Standards
- 802.11a/b/g/n
  802.11i Wireless Security
Frequency Band
- 2.4 GHz
  5 GHz

Input/Output Interface

Buttons
- Reset button

Ethernet Interface

1000BaseSFP Slots
- 1
Standards
- IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3at for PoE
Total Port Count
- 2
Highest Speed
- 1G
Connections
- PoE
  M12
  Fiber
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)
- 1

Ethernet Software Features

Management
- SNMPv1/v2c/v3, DHCP Server/Client, IPv4, LLDP, SMTP, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console, Wireless Search Utility
Security
- HTTPS/SSL, RADIUS, SSH
Time Management
- NTP Client, SNTP
Unicast Routing
- Static Route

Switch Properties

VLAN ID Range
- VID 1 to 4094

USB Interface

M12 Connector
- M12 A-coded 5-pin female (for ABC-02 USB storage)

Firewall

Filter
- IP address, MAC address, Ports

NAT

Features
- Port forwarding

Serial Interface

Console Port
- USB-M12 console (M12 B-coded 5-pin female connector)
Flow Control
- RTS/CTS, XON/XOFF
Parity
- None, Even, Odd, Space, Mark

Power Parameters

Input Current
- 0.65 A @ 24 VDC, 0.16 A @ 110 VDC
Input Voltage
- 24 to 110 VDC, Redundant dual inputs
Power Connector
- M12 A-coded 4-pin male connector
Power Consumption
- 17.6 W (max.)
Reverse Polarity Protection
- Supported
Source of Input Power
- PoE (IEEE 802.3at)

Physical Characteristics

Housing
- Metal
IP Rating
- IP68
Dimensions (without ears)
- 220 x 150 x 50.5 mm (8.66 x 5.91 x 1.99 in)
Weight
- 1,500 g (3.31 lb)
Installation
- Wall mounting (standard), DIN-rail mounting (optional), Pole mounting (optional)
Protection
- PCB conformal coating

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Radio Frequency
- EN 300 328, EN 301 489-1/17, EN 301 893, FCC, IC, WPC
Railway
- EN 50121-4, EN 50155
Railway Fire Protection
- EN 45545-2
Safety
- EN 60950-1, UL 60950-1, IEC 60950-1

MTBF

Time
- 758,369 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
