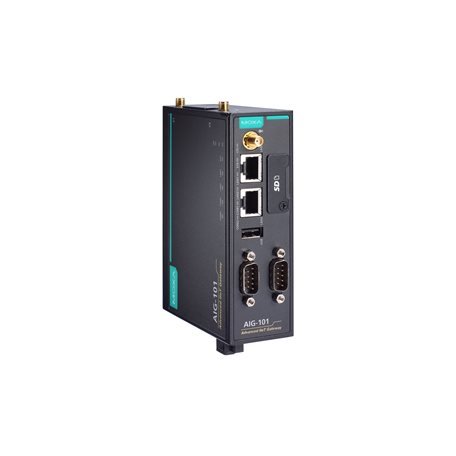

Moxa AIG-101-T-AP

Artikelnummer: AIG-101-T-AP
Kategorie: AIG-101 Series
Hersteller: Moxa

2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS cloud-ready gateway with built-in LTE Cat. 1 module for the Asia-Pacific region, -40 to 70°C operating temperature

931,00 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

AIG-101-T-AP

AIG-101 Series

2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS cloud-ready gateway with built-in LTE Cat. 1 module for the Asia-Pacific region, -40 to 70°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2, Auto MDI/MDI-X connection
Magnetic Isolation Protection
- 1.5 kV (built-in)

Ethernet Software Features

Industrial Protocols
- Modbus TCP Client (Master) / Server (Slave)
  Generic MQTT
  Azure IoT Device
  AWS IoT Core
Configuration Options
- Web Console (HTTP/HTTPS)
Time Management
- NTP Client
  GPS

Serial Interface

No. of Ports
- 2
Connector
- DB9 male
Serial Standards
- RS-232/422/485
Baudrate
- 300 bps to 921.6 kbps
Data Bits
- 7, 8
Parity
- None, Even, Odd, Space, Mark
Stop Bits
- 1, 2
Flow Control
- RTS/CTS

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND

Cellular Interface

Cellular Standards
- LTE Cat. 1
Cellular Antenna Connectors
- SMA x 2
SIM Format
- Nano SIM
No. of SIMs
- 2
GPS Antenna Connectors
- SMA x 1
Band Options
- US Model:
  LTE Bands: Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 66 (1700 MHz) / Band 71 (600 MHz)
  UMTS Bands: 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz)
  Carrier Approval: Verizon, AT&T

  EU Model:
  LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 7 (2600 MHz) / Band 8 (900 MHz) / Band 20 (800 MHz) / Band 28 (700 MHz)
  UMTS Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) Band 8 (900 MHz)

  AP Model:
  LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz) / Band 28 (700 MHz)
  UMTS Bands: Band 1 (2100 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz)

Serial Software Features

Industrial Protocols
- Modbus RTU/ASCII Master

Modbus RTU/ASCII

Mode
- Master
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands
- 256 per port

Modbus TCP

Mode
- Server (Slave)
  Client (Master)
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Client Connections
- 4
Max. No. of Server Connections
- 64
Max. No. of Commands
- 1500

Generic MQTT Client

Versions Supported
- v3.1.1
  v3.1
QoS Levels
- 0, 1, 2
Authentication Methods
- Username and password
Secure Transmission
- TLS 1.0
  TLS 1.1
  TLS 1.2
Native Capabilities
- Keep Alive
  Retain Message
  Clean Session
  Will and Testament
Moxa Functions
- Store and Forward
  Custom Payload
  Remote API Invocation

Azure IoT Device

Connection Protocols Supported
- MQTT
  MQTT over WebSockets
  AMQP
  AMQP over WebSockets
Authentication Methods
- Symmetric Key
  X.509 Certificate
Azure Direct Methods
- Reboot
  Software Upgrade
  Remote API Invocation
Moxa Functions
- Store and Forward
  Custom Payload

AWS IoT Core

QoS Levels
- 0,1
Authentication Methods
- X.509 Certificate
  Private Key
  Trusted Root CA
Native Capabilities
- Keep Alive
Moxa Functions
- Store and Forward
  Custom Payload
Commands Invokable Via Jobs
- Reboot
  Software Upgrade
  Remote API Invocation

Memory

microSD Slot
- Up to 32 GB (SD 2.0 compatible)
  Max. No. of Tags Supported: 1500

Power Parameters

Input Voltage
- 9 to 36 VDC
Power Connector
- Screw-fastened Euroblock terminal
Power Consumption
- 8 W (max.)

Physical Characteristics

Dimensions
- 128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in)
Housing
- Metal
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)
Weight
- AIG-101-T: 492 g (1.08 lb)
  AIG-101-T-AP/EU/US: 512 g (1.13 lb)

Environmental Limits

Ambient Relative Humidity
- 5 to 95% (non-condensing)
Operating Temperature
- -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Safety
- IEC 62368-1
  UL 62368-1
  EN 62368-1
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-64
  5 Grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached)
Cellular Standards
- EN 303 413 (GPS)
  EN 301 908-1 (WCDMA/LTE)
  EN 301 908-2/-13 (WCDMA/LTE)
  EN 301 489-1/-19
  EN 301 489-1/-52
  EN 62311
Radio Frequency
- FCC
  PTCRB
  RCM
Carrier Approvals
- Verizon
  AT&T
Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 566,458 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
