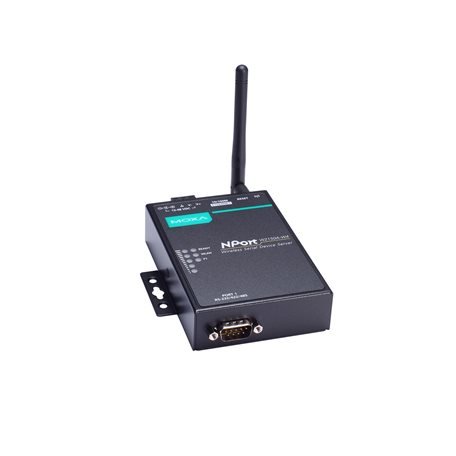

Moxa NPort W2150A-W4-US

Artikelnummer: NPort W2150A-W4-US
Kategorie: NPort W2150A-W4/W2250A-W4 Series
Hersteller: Moxa

1-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN US band, US plug, 12 to 48 VDC, 0 to 55°C operating temperature

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.

Beschreibung

NPort W2150A-W4-US

NPort W2150A-W4/W2250A-W4 Series

1-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN US band, US plug, 12 to 48 VDC, 0 to 55°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 1
Magnetic Isolation Protection
- 1.5 kV (built-in)
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)

Ethernet Software Features

Configuration Options
- Web Console (HTTP/HTTPS)
  Windows Utility
Management
- DHCP Option 82
  HTTP
  IPv4
  SMTP
  SNMPv1/v2c/v3
  Syslog
  Telnet
  Web Console
Windows Real COM Drivers
- Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
  Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT
  Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
Fixed TTY Drivers
- macOS Versions: 10.12 to 10.15, 11.x
  SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support
- Linux kernel 5.x/4.x
Virtual Machine
- VMWare ESXi (Windows 11/10)
  VMware Fusion (Windows on macOS 10.12 to 11.x)
  Parallels Desktop (Windows on macOS 10.12 to 11.x)
Android API
- Android 3.1.x and later
MIB
- Device Settings MIB
  RFC1213, RFC1317
Security
- HTTPS/SSL
  User Authentication Management: local database, RADIUS
  Secure Protocols: HTTPS (TLSv1.3), SSH, SNMPv3
  Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256
Time Management
- NTP Client
  SNTP Client

WLAN Interface

WLAN Standards
- 802.11a/b/g/n
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
- Typ. -91 @ 6 Mbps
  Typ. -74 @ 54 Mbps
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
- Typ. -92 dBm @ 1 Mbps
  Typ. -84 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
- Typ. -91 dBm @ 6 Mbps
  Typ. -73 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
- Typ. -89 dBm @ 6.5 Mbps (20 MHz)
  Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
- Typ. -89 dBm @ 6.5 Mbps (20 MHz)
  Typ. -71 dBm @ 72.2 Mbps (20 MHz)
  Typ. -85 dBm @ 13.5 Mbps (40 MHz)
  Typ. -67 dBm @ 150 Mbps (40 MHz)
Modulation Type
- DSSS
  OFDM
Transmission Distance
- Up to 100 meters (in open areas)
Transmission Rate
- 802.11a/g: 54 Mbps
  802.11b: 11 Mbps
  802.11n: 6.5 to 150 Mbps
Transmitter Power for 802.11b
- 16±1.5 dBm @ 1 Mbps
  16±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g
- 16±1.5 dBm @ 6 Mbps
  14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11a
- 15±1.5 dBm @ 6 Mbps
  14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz)
- 16 dBm @ 1.5 Mbps (6.5 MHz)
  12 dBm @ 1.5 Mbps (72.2 MHz)
Transmitter Power for 802.11n (5 GHz)
- 15 dBm @ 1.5 Mbps (6.5 MHz)
  12 dBm @ 1.5 Mbps (150 MHz)
Frequency Band for CN (20 MHz operating channels)
- 2.412 to 2.472 GHz (13 channels)
  5.180 to 5.240 GHz (4 channels)
  5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5.745 to 5.825 GHz (5 channels)
Frequency Band for EU (20 MHz operating channels)
- 2.412 to 2.472 GHz (13 channels)
  5.180 to 5.240 GHz (4 channels)
  5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
Frequency Band for JP (20 MHz operating channels)
- 2.412 to 2.472 GHz (13 channels)
  5.180 to 5.240 GHz (4 channels)
  5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
Frequency Band for US (20 MHz operating channels)
- 2.412 to 2.462 GHz (11 channels)
  5.180 to 5.240 GHz (4 channels)
  5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5.745 to 5.825 GHz (5 channels)
Wireless Security
- WEP encryption (64-bit and 128-bit)
  WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
  WPA/WPA2-Personal
WLAN Modes
- Infrastructure mode

Antenna Characteristics

Connector
- RP-SMA (male)
Antenna Type
- Omni-directional

Security Functions

Authentication
- Local database
  RADIUS
Encryption
- AES-128
  AES-256
  HMAC
  RSA-1024
  SHA-1
  SHA-256
  SHA-384
Security Protocols
- SNMPv3
  SSHv2
  HTTPS (TLS 1.3)
Wireless Security
- WEP
  WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS support EAP-TLS 1.3)
  WPA/WPA2-Personal
Hardware-based Security
- Secure Boot

Serial Interface

Connector
- DB9 male
No. of Ports
- 1
Serial Standards
- RS-232
  RS-422
  RS-485
Operation Modes
- Real COM mode
  TCP Server mode
  TCP Client mode
  UDP mode
  RFC2217 mode
  Pair Connection mode
  Ethernet Modem mode
  Disabled
Baudrate
- 300 bps to 921.6 kbps
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- None
  RTS/CTS
  XON/XOFF
RS-485 Data Direction Control
- ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
- 120 ohms
Surge
- 1 kV

Physical Characteristics

Housing
- Metal
Installation
- Desktop
  DIN-rail mounting (with optional kit)
  Wall mounting
Dimensions (with ears, without antenna)
- 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
Dimensions (without ears or antenna)
- 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
Weight
- 185 g (0.41 lb)
Antenna Length
- 108 mm (4.25 in)

Environmental Limits

Operating Temperature
- Standard Models: 0 to 55°C (32 to 131°F)
  Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Power Parameters

Input Current
- 429 mA @ 12 VDC
Input Voltage
- 12 to 48 VDC

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Radio Frequency
- CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301489-1/-17), MIC, KC, RCM, WPC
Safety
- UL 62368-1
  IEC 62368-1

Reliability

Alert Tools
- RTC (real-time clock)
Automatic Reboot Trigger
- Built-in WDT

MTBF

Time
- 1,356,464 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
