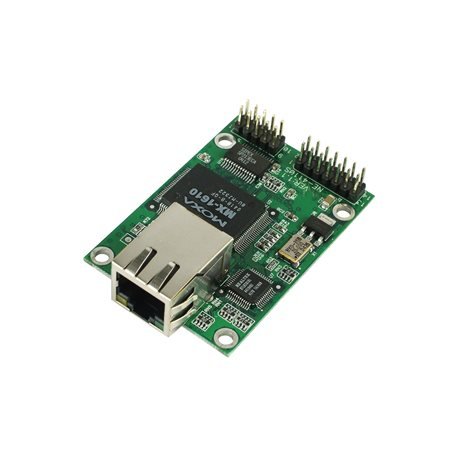

Moxa NE-4110A

Artikelnummer: NE-4110A
Kategorie: NE-4100 Series
Hersteller: Moxa

Device server module for RS-422/485 devices, supports 10/100BaseT(x) with RJ45 connector

69,09 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

NE-4110A

NE-4100 Series

Device server module for RS-422/485 devices, supports 10/100BaseT(x) with RJ45 connector

Platform

CPU
- 16-bit MCU

Memory

Flash
- 2 MB
SDRAM
- 1 MB

Input/Output Interface

Configurable DIO Channels (by software)
- 4

Ethernet Interface

10/100BaseT(X) Ports, Auto MDI/MDI-X
- 8-pin RJ45
Magnetic Isolation Protection
- 1.5 kV (built-in)
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3x for flow control

Ethernet Software Features

Configuration Options
- Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
Management
- ARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP
Windows Real COM Drivers
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
- SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API
- Android 3.1.x and later

Serial Interface

No. of Ports
- 2 (1 for serial interface, 1 for TTL console port)
Serial Standards
- RS-422, RS-485
Operation Modes
- Real COM mode, TCP Client mode, TCP Server mode, UDP mode
Baudrate
- 110 bps to 230.4 kbps
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- None, RTS/CTS, DTR/DSR, XON/XOFF

Serial Signals

RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND

Power Parameters

Input Voltage
- 5 VDC
Power Consumption
- 290 mA @ 5 VDC

Physical Characteristics

Dimensions
- 57 x 40 mm (2.24 x 1.57 in)
Weight
- 40 g (0.09 lb)
Form Factor Type
- Ready-to-go pin header modules

Environmental Limits

Operating Temperature
- 0 to 55°C (32 to 131°F)
Storage Temperature (package included)
- -40 to 60°C (-40 to 140°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-3
  IEC 60068-2-14

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 289,573 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
