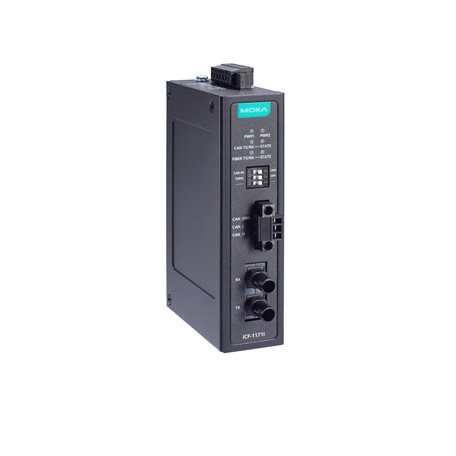

Moxa ICF-1171I-S-ST

Moxa ICF-1171I-S-ST

Artikelnummer: ICF-1171I-S-ST
Kategorie: ICF-1171I Series
Hersteller: Moxa

Industrial CAN-to-fiber converter for distance extension, ST single-mode

530,18 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

ICF-1171I-S-ST

ICF-1171I Series

Industrial CAN-to-fiber converter for distance extension, ST single-mode

Serial Interface

Optical Fiber
- 100Base-Fx ports (single-mode/multi-mode ST connector)

Optical Fiber

Fiber module optical interface		Multi-mode	Single-mode
Fiber Data Rate		100Base-Fx
Fiber Cable Requirements		62.5/125 µm	9/125 µm
Fiber Cable Requirements		OM1	OS1
Typical Distance		2 km	40 km
Wavelength	Typical (nm)	1310
	TX Range (nm)	1280 to 1340
	RX Range (nm)	1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20	0 to -5
	RX Range (dBm)	-3 to -32	-3 to -34
	Link Budget (dB)	12	29
	Dispersion Penalty (dB)	3	1

Optical Fiber
- Note: The “typical distance” of a specific fiber transceiver can be computer using Link budget (dB) > Dispersion penalty (dB) + Total link loss (dB).

CAN Interface

Isolation
- 2 kV (built-in)
No. of Ports
- 1
Signals
- CAN_L, CAN_H, CAN Signal GND
Terminator
- N/A, 120 ohms (by DIP)
Protocols
- CAN 2.0A, CAN 2.0B, CAN FD, compatible with ISO 11898 standard (DIP switch to select CAN 2.0/CAN FD setting)

Fiber Interface

No. of Ports
- 1
Connector
- Single-mode ST connector
Optical Fiber
- Single-mode, typical distance 40 km
  Multi-mode, typical distance 2 km

Power Parameters

Input Current
- 188.5 mA (max.)
Input Voltage
- 12 to 48 VDC
No. of Power Inputs
- 2
Power Connector
- Terminal block

Relays

Contact Current Rating
- Resistive load: 1 A @ 30 VDC
Pinouts
- NC, COM, NO

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
Weight
- 294 g (0.65 lb)
Installation
- DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF
International Approval
- KC
Safety
- UL 62368-1, EN 62368-1
Vibration
- IEC 60068-2-6

MTBF

Time
- 2,412,885 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
