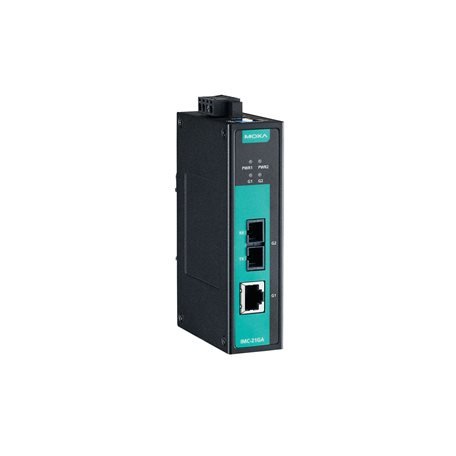

Moxa IMC-21GA-LX-SC

Moxa IMC-21GA-LX-SC

Artikelnummer: IMC-21GA-LX-SC
Kategorie: IMC-21GA Series
Hersteller: Moxa

Industrial 10/100/1000BaseT(X) to 100/1000Base SC media converter, 10 km, -10 to 60°C operating temperature

436,39 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

IMC-21GA-LX-SC

IMC-21GA Series

Industrial 10/100/1000BaseT(X) to 100/1000Base SC media converter, 10 km, -10 to 60°C operating temperature

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)
- 1
1000BaseLX Ports (single-mode SC connector)
- 1
Magnetic Isolation Protection
- 1.5 kV (built-in)

Optical Fiber

	1000BaseSX	1000BaseLX
Wavelength	850 nm	1310 nm
Tx Output (dBm)	-3 to -10	-3 to -9
Rx Sensitivity (dBm)	-3 to -20	-3 to -21
Link Budget (dBm)	10	12
Typical Distance	500 m	10 km

Power Parameters

Input Current
- 284.7 mA @ 12 to 48 VDC
Input Voltage
- 12 to 48 VDC
Overload Current Protection
- Supported
Power Connector
- Terminal block
Power Consumption
- 284.7 mA @ 12 to 48 VDC

Physical Characteristics

Housing
- Metal
Dimensions
- 30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in)
Weight
- 170 g (0.37 lb)
Installation
- DIN-rail mounting

Environmental Limits

Operating Temperature
- -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
- -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-2
  IEC 60068-2-3
Safety
- EN 60950-1, UL 60950-1
Vibration
- IEC 60068-2-6

MTBF

Time
- 2,762,058 hrs
Standards
- MIL-HDBK-217F

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
