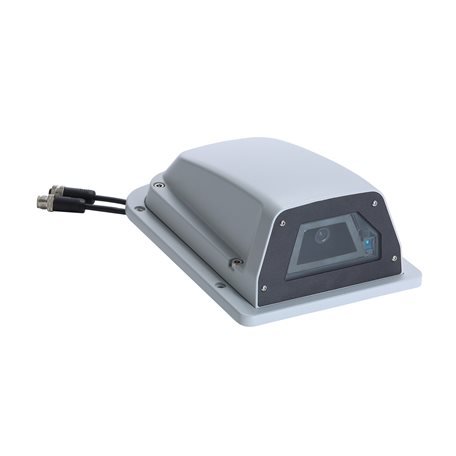

Moxa VPort 06EC-2V36M

Moxa VPort 06EC-2V36M

Artikelnummer: VPort 06EC-2V36M
Kategorie: VPort 06EC-2V Series
Hersteller: Moxa

EN50155, 1080P, day and night outdoor IP camera, 3.6 mm lens, -25 to 55°C operating temperature

1.753,22 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

VPort 06EC-2V36M

VPort 06EC-2V Series

EN50155, 1080P, day and night outdoor IP camera, 3.6 mm lens, -25 to 55°C operating temperature

Memory

microSD Slot
- SDXC

Input/Output Interface

Digital Output Channels
- 1
Contact Current Rating
- Resistive load: 1 A @ 24 VDC
Connector
- 5-pin A-coded male M12 connector with 20 cm cable

Ethernet Interface

PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)
- 1

Ethernet Software Features

Protocols
- TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Security Functions

Password
- User-level password protection
Filter
- IP address
Encryption
- HTTPS

Power Parameters

No. of Power Inputs
- 2
Source of Input Power
- PoE (IEEE 802.3af)
Input Voltage
- 24 VDC for front-window heater (for defrosting)
Input Current
- 0.167 A @ 48 VDC, 0.9 A @ 24 VDC
Power Connector
- M12 connector
Note
- PoE is for powering the camera; 24 VDC is for powering the heater

Camera Characteristics

Sensor
- 1/3-in 1080P progressive scan CMOS
Lens
- f=3.6 mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39°
Minimum Illumination
- Color: 0.2 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec)
  B/W: 0.05 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec)
Day & Night
- Auto/Color/BW; ICR control
ICR Control
- Auto
Synchronization
- Internal
White Balance
- ATW/AWB
Electronic Shutter
- Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio
- Maximum 50 dB (AGC off; DNR on)
DNR (digital noise reduction)
- Built-in 2D/3D DNR
WDR (wide dynamic range)
- 100 dB
AGC (auto gain control)
- 2X, 4X, 8X, 16X
Flickerless Control
- Automatic, 50 Hz, 60 Hz modes
Image Rotation
- Flip, Mirror, 90°, 180°, 270° rotation
Image Setting
- Manual tuning with saturation, sharpness, and contrast
Camera Angle
- Pan: ±5°, Tilt: +10/-5° (controlled manually)

Video Interface

Video Compression
- H.264 (ISO/IEC 14496-10) or MJPEG
Video Output
- via Ethernet
Video Streams
- 4 independent H.264 or MJPEG video streams
NTSC/PAL
- Auto-sensing or manual

Video Resolution and FPS (frames per second)

	NTSC		PAL
	Size	Max. FPS	Size	Max. FPS
QCIF	176 x 112	30	176 x 144	25
CIF	352 x 240	30	352 x 288	25
VGA	640 x 480	30	640 x 480	25
4CIF	704 x 480	30	704 x 576	25
Full D1	720 x 480	30	720 x 576	25
SVGA	800 x 600	30	800 x 600	25
HD	1280 x 720	30	1280 x 720	25
WXGA	1280 x 800	30	1280 x 800	25
Full HD	1920 x 1080	30	1920 x 1080	30

Video Viewing
- DynaStream™ support for changing the video frame rate automatically
  CBR Pro™ for good image quality in limited bandwidth transmissions
  3 privacy mask areas provided
  Adjustable image size and quality
  Timestamp and text overlay
  OSD (On Screen Display) position adjustable
  Maximum of 5 simultaneous unicast connections, 50 multicast clients
  Digital PTZ

Camera Software Development

Video Standards
- ONVIF Profile S

Camera Alarm Software Features

Intelligent Video
- Camera tampering detection
Video Motion Detection
- 3 independently configurable areas
Shock Detection
- Built-in G sensor
Humidity
- Detects camera’s internal humidity
Scheduling
- Daily repeat timing schedule
Imaging
- JPEG snapshots for pre/trigger/post alarm images
Custom Alarms
- HTTP event servers for setting customized alarm actions
Email/FTP Messaging
- Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-Alarm Buffer
- 50 MB video buffer for JPEG snapshot images
Video Recording
- Event recordings stored on the SD card

Software Requirements

Memory Size
- 2 GB
Operating System
- Windows 7 or above
Browser
- Internet Explorer 9.x or above
Multimedia
- DirectX 9.0C or above

Physical Characteristics

Housing
- Metal
  IP67
  Transparent Glass cover
Dimensions
- 83 x 168 x 233 mm (3.27 x 6.61 x 8.78 in)
Weight
- 1630 g (3.59 lb)
Installation
- Wall mounting (standard)

Environmental Limits

Operating Temperature
- -25 to 55°C (-13 to 131°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Ingress Protection
- IEC 60529, IP67
Salt Spray Test
- ASTM B368 (CASS), 125 hours
Altitude
- 2000 m

Standards and Certifications

EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Freefall
- IEC 60068-2-31
Railway Fire Protection
- EN 45545-2
Safety
- UL 60950-1
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155
Railway
- EN 50155 (complies with a portion of EN 50155 specifications)

MTBF

Time
- 480,269 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
  Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.
Details
- See www.moxa.com/warranty
