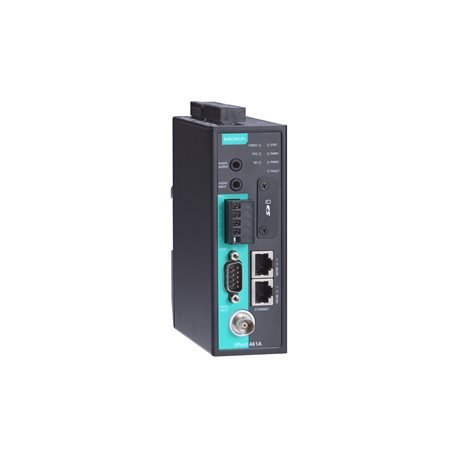

Moxa VPort 461A-T

Artikelnummer: VPort 461A-T
Kategorie: VPort 461A Series
Hersteller: Moxa

Full Motion, 1-ch industrial video encoder, 2 10/100BaseT(X) Ethernet ports, -40 to 75°C operating temperature

840,35 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

VPort 461A-T

VPort 461A Series

Full Motion, 1-ch industrial video encoder, 2 10/100BaseT(X) Ethernet ports, -40 to 75°C operating temperature

Memory

SD Slot
- SDXC

Input/Output Interface

Digital Input Channels
- 2
Digital Inputs
- +13 to +30 V for state 1
  -30 to +1 V for state 0
  Max. input current: 8 mA
Relay Channels
- 2
Contact Current Rating
- Resistive load: 1 A @ 24 VDC
Connector
- Terminal block

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2

Ethernet Software Features

Protocols
- TCP/IP
  IPv4/IPv6
  UDP
  HTTP
  RTP/RTSP
  ARP
  UPnP
  FTP
  TFTP
  NTP Client
  DNS
  QoS
  IGMP v3
  ICMP
  SNMPv1/v2c/v3
  Modbus TCP
  HTTPS
  802.1X
  NTCIP

Security Functions

Password
- User-level password protection
Filter
- IP address
Authentication
- 802.1X
Encryption
- HTTPS
  SSH

LED Interface

LED Indicators
- STAT: Indicates if system is booted up properly or not
  Power 1: Power 1 on/off
  Power 2: Power 2 on/off
  FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network
  Video: Video input signal
  PTZ: Indicates if PTZ or COM port data has been transmitted
  SD: Indicates if SD card was mounted successfully
  Network: 10 Mbps or 100 Mbps

Serial Interface

PTZ Port
- 1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps
COM Port
- 1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbps
Console Port
- 1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1)

Power Parameters

No. of Power Inputs
- 2
Input Voltage
- Redundant dual inputs
Operating Voltage
- 12 to 32 VDC, 18 to 30 VAC
Input Current
- 0.64 A @ 12 VDC, 0.18 A @ 32 VDC
  0.59 A @ 18 VAC
  0.35 A @ 30 VAC
Power Connector
- 2-pin terminal block

Video Interface

Video Compression
- H.264 (ISO/IEC 14496-10) or MJPEG
Video Input
- 1, BNC connector (1.0 Vpp, 75 ohm)
Video Output
- via Ethernet
Video Streams
- 4 independent H.264 or MJPEG video streams
NTSC/PAL
- Auto-sensing or manual

Video Resolution and FPS (frames per second)

	NTSC		PAL
	Size	Max. FPS	Size	Max. FPS
QCIF	176 x 112	30	176 x 144	25
CIF	352 x 240	30	352 x 288	25
VGA	640 x 480	30	640 x 480	25
4CIF	704 x 480	30	704 x 576	25
Full D1	720 x 480	30	720 x 576	25

Video Viewing
- DynaStream™ support for changing the video frame rate automatically
  CBR Pro™ for good image quality in limited bandwidth transmissions
  Adjustable image size and quality
  Timestamp and text overlay
  OSD (On Screen Display) position adjustable
  Image tuning: control brightness, contrast, saturation
  Maximum of 10 simultaneous unicast connections, 50 multicast clients

Audio Interface

Audio Inputs
- 1 Line-in or MIC-in with 3.5 mm phone jack
Audio Outputs
- 1 Line-out, with 3.5 mm phone jack
Audio Format
- Mono, PCM (G.711)

Camera Software Development

Video Standards
- ONVIF Profile S

Camera PAN/TILT/ZOOM

PTZ Camera Control
- Via PTZ port or COM port
PTZ Control Functions
- Pan, tilt, zoom, focus, move speed, preset position (max. 128 positions)
PTZ Function Updates
- Driver upload supported
Protocols
- Pelco D, Pelco P, Custom Camera

Camera Alarm Software Features

Intelligent Video
- Camera tampering detection
Video Motion Detection
- 3 independently configurable areas
Scheduling
- Daily repeat timing schedule
Imaging
- JPEG snapshots for pre/trigger/post alarm images
Custom Alarms
- HTTP event servers for setting customized alarm actions
FTP Messaging
- Automatic transfer of stored images via FTP as event-triggered actions
Pre-Alarm Buffer
- 50 MB video buffer for JPEG snapshot images
Video Recording
- Event recordings stored on the SD card

Software Requirements

Memory Size
- 1 GB
Operating System
- Windows 7 or above
Browser
- Internet Explorer 9.x or above
Multimedia
- DirectX 9.0C or above

Physical Characteristics

Housing
- Metal
Dimensions
- 46 x 134 x 105 mm (1.81 x 5.31 x 4.13 in)
Weight
- 710 g (1.57 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- 2000 m

Standards and Certifications

EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Freefall
- IEC 60068-2-31
Safety
- UL 60950-1
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6

MTBF

Time
- 862,568 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
