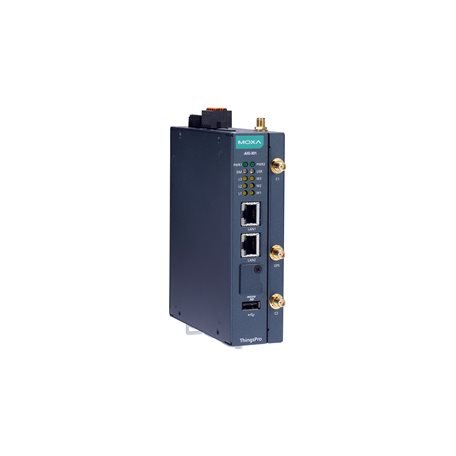

Moxa AIG-301-T-CN-AZU-LX

Artikelnummer: AIG-301-T-CN-AZU-LX
Kategorie: AIG-301 Series
Hersteller: Moxa

2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, mPCIe reserved for LTE module, -40 to 70°C operating temperature

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.

Beschreibung

AIG-301-T-CN-AZU-LX

AIG-301 Series

2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, mPCIe reserved for LTE module, -40 to 70°C operating temperature

Computer

CPU
- Armv7 Cortex-A7 dual-core 1 GHz
DRAM
- 2 GB DDR3L
Storage Pre-installed
- 16 GB eMMC
Pre-installed OS
- Moxa Industrial Linux (Debian 9, Kernel 4.4)
No. of Tags Supported
- 2048

Computer Interface

TPM
- TPM v2.0
USB 2.0
- USB 2.0 hosts x 1, type-A connectors
Wi-Fi Antenna Connector
- RP-SMA x 2
Cellular Antenna Connector
- SMA x 2
  (excluding AIG-301-AZU-LX/T-AZU-LX models)
GPS Antenna Connector
- SMA x 1 (excluding AIG-301-AZU-LX/T-AZU-LX models)
Expansion Slots
- AIG-301-CN-AZU-LX/T-CN-AZU-LX: mPCIe slot x 2
  All Other Models: mPCIe slot x 1
Buttons
- Reset button
  Reset to factory default
Digital Input
- DIs x 4
Digital Output
- DOs x 4
Number of SIMs
- 2
SIM Format
- Nano
  (excluding AIG-301-AZU-LX/T-AZU-LX models)

Ethernet Interface

Magnetic Isolation Protection
- 1.5 kV (built-in)
10/100/1000BaseT(X) Ports (RJ45 connector)
- 2

Ethernet Software Features

Industrial Protocols
- Modbus TCP Client (Master)
  Generic MQTT
  Azure IoT Device
  AWS IoT Core
  Azure IoT Edge
  OPC UA Server
  Sparkplug B Client
Configuration Options
- Web Console (HTTP/HTTPS)
  ThingsPro Proxy Utility
Time Management
- NTP Server/Client
  GPS

Serial Interface

Console Port
- 1 x 4-pin header
No. of Ports
- 2
Connector
- DB9 male
Baudrate
- 300 bps to 921.6 kbps
Data Bits
- 7, 8
Flow Control
- ADDC (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
Parity
- None, Even, Odd, Space, Mark
Stop Bits
- 1, 2

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial Protocols
- Modbus RTU/ASCII Master

CAN Interface

No. of Ports
- 1
Connector
- DB9 male
Baudrate
- 10 to 1000 kbps
Industrial Protocols
- CAN 2.0A
  CAN 2.0B
Signals
- CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
Isolation
- 2 kV (built-in)

Digital Inputs

Connector
- Spring-type Euroblock terminal
Sensor Type
- Wet contact (NPN)
  Dry contact
Dry Contact
- Off: open
  On: short to GND
Wet Contact (DI to COM)
- On: 10 to 30 VDC
  Off: 0 to 3 VDC
Isolation
- 3K VDC

Digital Outputs

Connector
- Spring-type Euroblock terminal
Current Rating
- 200 mA per channel
I/O Type
- Sink
Voltage
- 24 VDC
  nominal, open collector to 30 VDC

Cellular Interface

Cellular Standards
- LTE Cat. 4
Band Options (US)
- LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13
  (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz) / LTE Band 71 (600 MHz)
  UMTS/HSPA 850 MHz / 1900 MHz
  Carrier Approval: Verizon, AT&T
Band Options (EU)
- LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7
  (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz)
  UMTS/HSPA 900 MHz / 1800 MHz / 2100 MHz
Band Option (APAC)
- LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz)
  UMTS/HSPA 850 MHz / 900 MHz / 2100 MHz

GPS Interface

Receiver Types
- GPS/GLONASS/BeiDou/Galileo/QZSS
Accuracy
- 0.8 m
Acquisition
- -147 dBm
Sensitivity
- Cold starts: -145 dBm
  Tracking: -160 dBm

LED Indicators

System
- Power x 2
  User x 1
  SIM card indicator x 1
LAN
- 2 per port (10/100/1000 Mbps)
Wireless Signal Strength
- Cellular/Wi-Fi x 6

Azure IoT Edge

Versions Supported
- v1.4.10
Authentication Methods
- Manual / Connection String
  DPS / TPM
  DPS / Symmetric Encryption
  DPS / X.509 Certificate
Azure Direct Methods
- Reboot
  Software Upgrade
  Remote API Invocation
Azure Module Twin
- Device Configuration
Moxa Functions
- Custom Payload
  Message Group

Sparkplug B Client

Versions Supported
- v2.2
Node Commands (NCMD)
- Next Broker
  Reboot
  Rebirth
Moxa Functions
- Store and Forward
  Custom Payload

OPC UA Server

No. of Client Connections
- 10
Security
- Sign and encrypt with policies Basic128Rsa15, Basic256, and Basic256Sha256
User Authentication and Authorization
- Username/password
Supported Profiles
- OPC UA v1.02
No. of Supported Tags
- 1024

Generic MQTT Client

Versions Supported
- v3.1.1
  v3.1
QoS Levels
- 0, 1, 2
Authentication Methods
- Username and password
Secure Transmission
- TLS 1.0
  TLS 1.1
  TLS 1.2
Native Capabilities
- Keep Alive
  Retain Message
  Clean Session
  Will and Testament
Moxa Functions
- Store and Forward
  Custom Payload
  Remote API Invocation

Azure IoT Device

Connection Protocols Supported
- MQTT
  MQTT over WebSockets
  AMQP
  AMQP over WebSockets
Authentication Methods
- Symmetric Key
  X.509 Certificate
Azure Direct Methods
- Reboot
  Software Upgrade
  Remote API Invocation

AWS IoT Core

QoS Levels
- 0,1
Authentication Methods
- X.509 Certificate
  Private Key
  Trusted Root CA
Native Capabilities
- Keep Alive
Moxa Functions
- Store and Forward
  Custom Payload
Commands Invokable Via Jobs
- Reboot
  Software Upgrade
  Remote API Invocation

Modbus RTU/ASCII

Mode
- Master
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands
- 256 per port
Max. No of Connected Devices
- 62

Modbus TCP

Mode
- Client (Master)
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Server Connections
- 64
Max. No. of Commands
- 2048

Power Parameters

No. of Power Inputs
- Redundant dual inputs
Input Voltage
- 12 to 48 VDC
Power Connector
- 4-pin terminal block
Power Consumption
- AIG-301-AZU-LX/T-AZU-LX: 4.8 W
  AIG-301-CN-AZU-LX/T-CN-AZU-LX: 6.0 W
  All Other Models: 8.4 W
Input Current
- AIG-301-AZU-LX/T-AZU-LX: 0.4 A @ 12 VDC
  AIG-301-CN-AZU-LX/T-CN-AZU-LX: 0.5 A @ 12 VDC
  All Other Models: 0.7 A @ 12 VDC

Reliability

Automatic Reboot Trigger
- External WDT (watchdog timer)

Physical Characteristics

Housing
- Metal
  SECC
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)
IP Rating
- IP30
Weight
- AIG-301-AZU-LX/T-AZU-LX: 560 g (1.23 lb)
