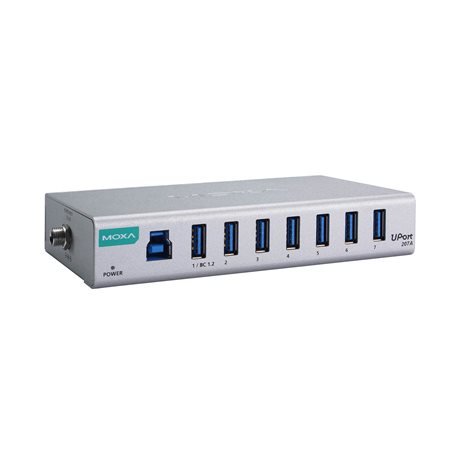

Moxa UPort 207A

Moxa UPort 207A

Artikelnummer: UPort 207A
Kategorie: UPort 200A Series
Hersteller: Moxa

7-port general-purpose USB 3.2 hubs

242,45 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

UPort 207A

UPort 200A Series

7-port general-purpose USB 3.2 hubs

USB Interface

USB Standards
- USB 1.1/2.0 compliant
  USB 3.2 Gen 1
Speed
- 5 Gbps
USB Connector
- UFP: type B
  DFP: type A
No. of USB Ports
- 8 (UFP: 1, DFP 7)

Power Parameters

Input Voltage
- No. of power inputs: 1, 12 VDC
Power Connector
- Power jack
Power Consumption
- 4.5 A @ 12 VDC
Reverse Polarity Protection
- Supported
Output Power Rating
- Port 1: 900 / 1500 mA @ 5 VDC (BC 1.2 compatible)
  Rest of ports: 900 mA @ 5 VDC

Physical Characteristics

Housing
- Metal
Dimensions
- 80 x 27 x 140 mm (3.15 x 1.06 x 5.51 in)
Weight
- 273 g (0.60 lb)
Installation
- DIN-rail mounting (with optional kit), Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature
- -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 1 kV
  IEC 61000-4-5 Surge: Power: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
  IEC 61000-4-8 PFMF
Safety
- EN 62368-1, UL 62368-1, KC
Environmental Testing
- IEC 60068-2-1
Freefall
- IEC 60068-2-34

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Standards
- Telcordia (Bellcore), GB
Time
- 1,957,123 hrs
