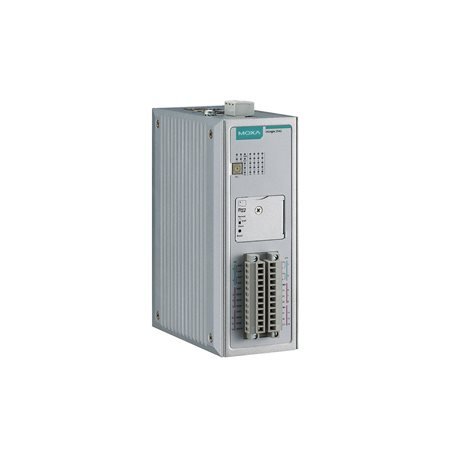

Moxa ioLogik 2542

Artikelnummer: ioLogik 2542
Kategorie: ioLogik 2500 Series
Hersteller: Moxa

Universal controller, 4 AIs, 12 DIOs, Click&Go Plus, -10 to 60°C operating temperature

765,38 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

ioLogik 2542

ioLogik 2500 Series

Universal controller, 4 AIs, 12 DIOs, Click&Go Plus, -10 to 60°C operating temperature

Memory

microSD Slot
- Up to 32 GB (SD 2.0 compatible)
  Note: For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.

Control Logic

Language
- Click&Go Plus

Input/Output Interface

Configurable DIO Channels (by software)
- 12
Analog Input Channels
- 4
Buttons
- Reset button
Isolation
- 3k VDC or 2k Vrms

Digital Inputs

Connector
- Screw-fastened Euroblock terminal
Sensor Type
- Dry contact
  Wet contact (NPN or PNP)
I/O Mode
- DI or event counter
Dry Contact
- On: short to GND
  Off: open
Wet Contact (DI to COM)
- On: 10 to 30 VDC
  Off: 0 to 3 VDC
Counter Frequency
- 2.5 kHz
Digital Filtering Time Interval
- Software configurable
Points per COM
- 6 channels

Digital Outputs

Connector
- Screw-fastened Euroblock terminal
I/O Type
- Sink
I/O Mode
- DO or pulse output
Current Rating
- 500 mA per channel
Pulse Output Frequency
- 5 kHz (max.)
DIO Output Leakage Current
- < 1 mA @ 30 VDC
Over-Current Protection
- 1.5 A per channel @ 25°C
Over-Temperature Shutdown
- 175°C (typical), 150°C (min.)
Over-Voltage Protection
- 45 VDC (typical)

Analog Inputs

Connector
- Screw-fastened Euroblock terminal
I/O Mode
- Voltage/Current
I/O Type
- Differential
Resolution
- 16 bits
Input Range
- ±10 VDC
  0 to 10 VDC
  0 to 20 mA
  4 to 20 mA
  4 to 20 mA (with burn-out detection)
Accuracy
- ±0.1% FSR @ 25°C
  ±0.3% FSR @ -10 to 60°C
Sampling Rate
- All channels: 400 samples/sec
  Per channel: 100 samples/sec
Built-in Resistor for Current Input
- 120 ohms
Input Impedance
- 1 mega-ohms (min.)
Over-Voltage Protection
- -25 to +30 VDC (power on)
  -35 to +35 VDC (power off)

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 4, 1 MAC address
Magnetic Isolation Protection
- 1.5 kV (built-in)

Ethernet Software Features

Configuration Options
- Web Console (HTTP/HTTPS)
  Windows Utility (IOxpress)
Industrial Protocols
- CGI commands
  Modbus TCP Client (Master)
  Modbus TCP Server (Slave)
  Moxa AOPC (Active Tag)
  MXIO Library
  RESTful API
  SNMPv1/v2c/v3
  SNMPv1/v2c Trap
Management
- BOOTP, IPv4, SMTP, TCP/IP, DHCP Client
MIB
- Device Settings MIB
Security
- HTTPS/SSL
Time Management
- SNTP

LED Interface

LED Indicators
- PWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15)

Serial Interface

Baudrate
- 300, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 bps
Connector
- 8-pin RJ45
Data Bits
- 5, 6, 7, 8
Flow Control
- None
  RTS/CTS
  XON/XOFF
No. of Ports
- 2
Parity
- None
  Even
  Odd
Serial Standards
- RS-232
  RS-422
  RS-485
Stop Bits
- 1, 2

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial Protocols
- Modbus RTU Master

Platform

Real-time Clock (RTC)
- Real-time clock with capacitor backup

Power Parameters

Power Connector
- Screw-fastened Euroblock terminal
No. of Power Inputs
- 1
Input Voltage
- 12 to 48 VDC
Power Consumption
- 281 mA @ 24 VDC
  589 mA @ 12 VDC
  144 mA @ 48 VDC

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
Weight
- 1,265 g (2.79 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)
Wiring
- I/O cable, 16 to 26 AWG
  Power cable, 12 to 24 AWG

Environmental Limits

Operating Temperature
- -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- 2000 m

Standards and Certifications

EMC
- EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 1 kV
  IEC 61000-4-6 CS: 3 V
  IEC 61000-4-8 PFMF
Vibration
- IEC 60068-2-6
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-32
Hazardous Locations
- ATEX
  Class I Division 2
Safety
- UL 508
Radio
- EN 301 489-1/17
Radio Frequency
- EN 301 908
  EN 301 489-24
  EN 301 511

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 375,439 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
