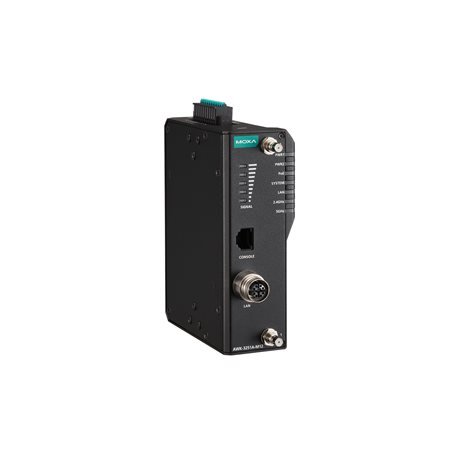

Moxa AWK-3251A-M12-RCC-US-CT-T

Artikelnummer: AWK-3251A-M12-RCC-US-CT-T
Kategorie: AWK-3251A-RCC Series
Hersteller: Moxa

Railway Wi-Fi 5 AP/client, US band, IP30, -40 to 75°C operating temperature, conformal coating

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.

Beschreibung

AWK-3251A-M12-RCC-US-CT-T

AWK-3251A-RCC Series

Railway Wi-Fi 5 AP/client, US band, IP30, -40 to 75°C operating temperature, conformal coating

WLAN Interface

WLAN Standards
- 2.4 GHz: 802.11b/g/n with 256 QAM support
  5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support
Frequency Band for US (20 MHz operating channels)
- 2.412 to 2.462 GHz (11 channels)
  5.180 to 5.240 GHz (4 channels)
  5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5.745 to 5.825 GHz (5 channels)
Wireless Security
- WEP encryption (64-bit and 128-bit)
  WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
  WPA/WPA2/WPA3-Personal
Transmission Rate
- 2.4 GHz:
  802.11b: 1 to 11 Mbps
  802.11g: 6 to 54 Mbps
  802.11n: 6.5 to 300 Mbps
  802.11ac: 6.5 to 400 Mbps

  5 GHz:
  802.11a: 6 to 54 Mbps
  802.11n: 6.5 to 300 Mbps
  802.11ac: 6.5 to 867 Mbps
Transmitter Power for 802.11a
- 22±1.5 dBm @ 6 Mbps
  22±1.5 dBm @ 9 Mbps
  22±1.5 dBm @ 12 Mbps
  20.5±1.5 dBm @ 18 Mbps
  20.5±1.5 dBm @ 24 Mbps
  20.5±1.5 dBm @ 36 Mbps
  20±1.5 dBm @ 48 Mbps
  20±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz)
- 22±1.5 dBm @ MCS0 20 MHz
  22±1.5 dBm @ MCS1 20 MHz
  22±1.5 dBm @ MCS2 20 MHz
  20±1.5 dBm @ MCS3 20 MHz
  19.5±1.5 dBm @ MCS4 20 MHz
  19.5±1.5 dBm @ MCS5 20 MHz
  19.5±1.5 dBm @ MCS6 20 MHz
  19±1.5 dBm @ MCS7 20 MHz
  22±1.5 dBm @ MCS8 20 MHz
  22±1.5 dBm @ MCS9 20 MHz
  22±1.5 dBm @ MCS10 20 MHz
  20±1.5 dBm @ MCS11 20 MHz
  19.5±1.5 dBm @ MCS12 20 MHz
  19.5±1.5 dBm @ MCS13 20 MHz
  19.5±1.5 dBm @ MCS14 20 MHz
  19±1.5 dBm @ MCS15 20 MHz
  21±1.5 dBm @ MCS0 40 MHz
  21±1.5 dBm @ MCS1 40 MHz
  21±1.5 dBm @ MCS2 40 MHz
  19.5±1.5 dBm @ MCS3 40 MHz
  19±1.5 dBm @ MCS4 40 MHz
  19±1.5 dBm @ MCS5 40 MHz
  19.5±1.5 dBm @ MCS6 40 MHz
  19±1.5 dBm @ MCS7 40 MHz
  21±1.5 dBm @ MCS8 40 MHz
  21±1.5 dBm @ MCS9 40 MHz
  21±1.5 dBm @ MCS10 40 MHz
  19.5±1.5 dBm @ MCS11 40 MHz
  19±1.5 dBm @ MCS12 40 MHz
  19±1.5 dBm @ MCS13 40 MHz
  19±1.5 dBm @ MCS14 40 MHz
  19±1.5 dBm @ MCS15 40 MHz
Transmitter Power for 802.11ac (5 GHz, Dual Chain)
- 21.5±1.5 dBm @ MCS0 20 MHz
  21.5±1.5 dBm @ MCS1 20 MHz
  21±1.5 dBm @ MCS2 20 MHz
  20±1.5 dBm @ MCS3 20 MHz
  19.5±1.5 dBm @ MCS4 20 MHz
  19.5±1.5 dBm @ MCS5 20 MHz
  19.5±1.5 dBm @ MCS6 20 MHz
  19±1.5 dBm @ MCS7 20 MHz
  19±1.5 dBm @ MCS8 20 MHz
  21±1.5 dBm @ MCS0 40 MHz
  21±1.5 dBm @ MCS1 40 MHz
  21±1.5 dBm @ MCS2 40 MHz
  19.5±1.5 dBm @ MCS3 40 MHz
  19±1.5 dBm @ MCS4 40 MHz
  19±1.5 dBm @ MCS5 40 MHz
  19±1.5 dBm @ MCS6 40 MHz
  19±1.5 dBm @ MCS7 40 MHz
  18.5±1.5 dBm @ MCS8 40 MHz
  18±1.5 dBm @ MCS9 40 MHz
  20±1.5 dBm @ MCS0 80 MHz
  20±1.5 dBm @ MCS1 80 MHz
  20±1.5 dBm @ MCS2 80 MHz
  17±1.5 dBm @ MCS3 80 MHz
  17±1.5 dBm @ MCS4 80 MHz
  17±1.5 dBm @ MCS5 80 MHz
  17±1.5 dBm @ MCS6 80 MHz
  17±1.5 dBm @ MCS7 80 MHz
  17±1.5 dBm @ MCS8 80 MHz
  17±1.5 dBm @ MCS9 80 MHz
Transmitter Power for 802.11b
- 25.5±1.5 dBm @ 1 Mbps
  25.5±1.5 dBm @ 2 Mbps
  26±1.5 dBm @ 5.5 Mbps
  26±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g
- 26±1.5 dBm @ 6 Mbps
  26±1.5 dBm @ 9 Mbps
  26±1.5 dBm @ 12 Mbps
  25±1.5 dBm @ 18 Mbps
  25±1.5 dBm @ 24 Mbps
  24.5±1.5 dBm @ 36 Mbps
  23.5±1.5 dBm @ 48 Mbps
  23±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz)
- 24.5±1.5 dBm @ MCS0 20 MHz
  24.5±1.5 dBm @ MCS1 20 MHz
  24±1.5 dBm @ MCS2 20 MHz
  24±1.5 dBm @ MCS3 20 MHz
  23.5±1.5 dBm @ MCS4 20 MHz
  23.5±1.5 dBm @ MCS5 20 MHz
  22.5±1.5 dBm @ MCS6 20 MHz
  22±1.5 dBm @ MCS7 20 MHz
  24±1.5 dBm @ MCS8 20 MHz
  24.5±1.5 dBm @ MCS9 20 MHz
  24±1.5 dBm @ MCS10 20 MHz
  24±1.5 dBm @ MCS11 20 MHz
  23.5±1.5 dBm @ MCS12 20 MHz
  23±1.5 dBm @ MCS13 20 MHz
  22±1.5 dBm @ MCS14 20 MHz
  21.5±1.5 dBm @ MCS15 20 MHz
  24±1.5 dBm @ MCS0 40 MHz
  24±1.5 dBm @ MCS1 40 MHz
  24±1.5 dBm @ MCS2 40 MHz
  24±1.5 dBm @ MCS3 40 MHz
  23.5±1.5 dBm @ MCS4 40 MHz
  23.5±1.5 dBm @ MCS5 40 MHz
  22.5±1.5 dBm @ MCS6 40 MHz
  22±1.5 dBm @ MCS7 40 MHz
  24±1.5 dBm @ MCS8 40 MHz
  24±1.5 dBm @ MCS9 40 MHz
  24±1.5 dBm @ MCS10 40 MHz
  24±1.5 dBm @ MCS11 40 MHz
  23.5±1.5 dBm @ MCS12 40 MHz
  23±1.5 dBm @ MCS13 40 MHz
  22.5±1.5 dBm @ MCS14 40 MHz
  21.5±1.5 dBm @ MCS15 40 MHz
Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)
- 25±1.5 dBm @ MCS0 20 MHz
  25±1.5 dBm @ MCS1 20 MHz
  25±1.5 dBm @ MCS2 20 MHz
  25±1.5 dBm @ MCS3 20 MHz
  24±1.5 dBm @ MCS4 20 MHz
  23.5±1.5 dBm @ MCS5 20 MHz
  22.5±1.5 dBm @ MCS6 20 MHz
  22±1.5 dBm @ MCS7 20 MHz
  21.5±1.5 dBm @ MCS8 20 MHz
  25±1.5 dBm @ MCS0 40 MHz
  25±1.5 dBm @ MCS1 40 MHz
  25±1.5 dBm @ MCS2 40 MHz
  25±1.5 dBm @ MCS3 40 MHz
  24±1.5 dBm @ MCS4 40 MHz
  23.5±1.5 dBm @ MCS5 40 MHz
  22.5±1.5 dBm @ MCS6 40 MHz
  22±1.5 dBm @ MCS7 40 MHz
  21.5±1.5 dBm @ MCS8 40 MHz
  21±1.5 dBm @ MCS9 40 MHz
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
- Typ. -88 @ 6 Mbps
  Typ. -88 @ 9 Mbps
  Typ. -85 @ 12 Mbps
  Typ. -84 @ 18 Mbps
  Typ. -81 @ 24 Mbps
  Typ. -77 @ 36 Mbps
  Typ. -74 @ 48 Mbps
  Typ. -72 @ 54 Mbps
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
- Typ. -88 dBm @ MCS0 20 MHz
  Typ. -84 dBm @ MCS1 20 MHz
  Typ. -83 dBm @ MCS2 20 MHz
  Typ. -80 dBm @ MCS3 20 MHz
  Typ. -76 dBm @ MCS4 20 MHz
  Typ. -72 dBm @ MCS5 20 MHz
  Typ. -70 dBm @ MCS6 20 MHz
  Typ. -68 dBm @ MCS7 20 MHz
  Typ. -89 dBm @ MCS8 20 MHz
  Typ. -87 dBm @ MCS9 20 MHz
  Typ. -85 dBm @ MCS10 20 MHz
  Typ. -81 dBm @ MCS11 20 MHz
  Typ. -78 dBm @ MCS12 20 MHz
  Typ. -74 dBm @ MCS13 20 MHz
  Typ. -73 dBm @ MCS14 20 MHz
  Typ. -71 dBm @ MCS15 20 MHz
  Typ. -85 dBm @ MCS0 40 MHz
  Typ. -82 dBm @ MCS1 40 MHz
  Typ. -79 dBm @ MCS2 40 MHz
  Typ. -77 dBm @ MCS3 40 MHz
  Typ. -73 dBm @ MCS4 40 MHz
  Typ. -69 dBm @ MCS5 40 MHz
  Typ. -68 dBm @ MCS6 40 MHz
  Typ. -66 dBm @ MCS7 40 MHz
  Typ. -87 dBm @ MCS8 40 MHz
  Typ. -84 dBm @ MCS9 40 MHz
  Typ. -82 dBm @ MCS10 40 MHz
  Typ. -79 dBm @ MCS11 40 MHz
  Typ. -75 dBm @ MCS12 40 MHz
  Typ. -72 dBm @ MCS13 40 MHz
  Typ. -70 dBm @ MCS14 40 MHz
  Typ. -69 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11ac (5 GHz, Dual Chain)
- Typ. -89 dBm @ MCS0 20 MHz
  Typ. -86 dBm @ MCS1 20 MHz
  Typ. -84 dBm @ MCS2 20 MHz
  Typ. -81 dBm @ MCS3 20 MHz
  Typ. -78 dBm @ MCS4 20 MHz
  Typ. -74 dBm @ MCS5 20 MHz
  Typ. -72 dBm @ MCS6 20 MHz
  Typ. -71 dBm @ MCS7 20 MHz
  Typ. -67 dBm @ MCS8 20 MHz
  Typ. -86 dBm @ MCS0 40 MHz
  Typ. -84 dBm @ MCS1 40 MHz
  Typ. -81 dBm @ MCS2 40 MHz
  Typ. -78 dBm @ MCS3 40 MHz
  Typ. -75 dBm @ MCS4 40 MHz
  Typ. -71 dBm @ MCS5 40 MHz
  Typ. -70 dBm @ MCS6 40 MHz
  Typ. -69 dBm @ MCS7 40 MHz
  Typ. -64 dBm @ MCS8 40 MHz
  Typ. -63 dBm @ MCS9 40 MHz
  Typ. -84 dBm @ MCS0 80 MHz
  Typ. -81 dBm @ MCS1 80 MHz
  Typ. -79 dBm @ MCS2 80 MHz
  Typ. -76 dBm @ MCS3 80 MHz
  Typ. -73 dBm @ MCS4 80 MHz
  Typ. -69 dBm @ MCS5 80 MHz
  Typ. -67 dBm @ MCS6 80 MHz
  Typ. -65 dBm @ MCS7 80 MHz
  Typ. -61 dBm @ MCS8 80 MHz
  Typ. -60 dBm @ MCS9 80 MHz
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
- Typ. -96 dBm @ 1 Mbps
  Typ. -92 dBm @ 2 Mbps
  Typ. -91 dBm @ 5.5 Mbps
  Typ. -88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
- Typ. -90 dBm @ 6 Mbps
  Typ. -89 dBm @ 9 Mbps
  Typ. -88 dBm @ 12 Mbps
  Typ. -86 dBm @ 18 Mbps
  Typ. -82 dBm @ 24 Mbps
  Typ. -79 dBm @ 36 Mbps
  Typ. -75 dBm @ 48 Mbps
  Typ. -73 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
- Typ. -89 dBm @ MCS0 20 MHz
  Typ. -86 dBm @ MCS1 20 MHz
  Typ. -84 dBm @ MCS2 20 MHz
  Typ. -81 dBm @ MCS3 20 MHz
  Typ. -77 dBm @ MCS4 20 MHz
  Typ. -73 dBm @ MCS5 20 MHz
  Typ. -72 dBm @ MCS6 20 MHz
  Typ. -70 dBm @ MCS7 20 MHz
  Typ. -91 dBm @ MCS8 20 MHz
  Typ. -88 dBm @ MCS9 20 MHz
  Typ. -86 dBm @ MCS10 20 MHz
  Typ. -82 dBm @ MCS11 20 MHz
  Typ. -80 dBm @ MCS12 20 MHz
  Typ. -75 dBm @ MCS13 20 MHz
  Typ. -74 dBm @ MCS14 20 MHz
  Typ. -73 dBm @ MCS15 20 MHz
  Typ. -87 dBm @ MCS0 40 MHz
  Typ. -84 dBm @ MCS1 40 MHz
  Typ. -82 dBm @ MCS2 40 MHz
  Typ. -78 dBm @ MCS3 40 MHz
  Typ. -75 dBm @ MCS4 40 MHz
  Typ. -71 dBm @ MCS5 40 MHz
  Typ. -70 dBm @ MCS6 40 MHz
  Typ. -68 dBm @ MCS7 40 MHz
  Typ. -88 dBm @ MCS8 40 MHz
  Typ. -85 dBm @ MCS9 40 MHz
  Typ. -83 dBm @ MCS10 40 MHz
  Typ. -80 dBm @ MCS11 40 MHz
  Typ. -77 dBm @ MCS12 40 MHz
  Typ. -73 dBm @ MCS13 40 MHz
  Typ. -71 dBm @ MCS14 40 MHz
  Typ. -70 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11ac (2.4 GHz, Dual Chain)
- Typ. -90 dBm @ MCS0 20 MHz
  Typ. -87 dBm @ MCS1 20 MHz
  Typ. -85 dBm @ MCS2 20 MHz
  Typ. -82 dBm @ MCS3 20 MHz
  Typ. -79 dBm @ MCS4 20 MHz
  Typ. -75 dBm @ MCS5 20 MHz
  Typ. -73 dBm @ MCS6 20 MHz
  Typ. -72 dBm @ MCS7 20 MHz
  Typ. -68 dBm @ MCS8 20 MHz
  Typ. -88 dBm @ MCS0 40 MHz
  Typ. -85 dBm @ MCS1 40 MHz
  Typ. -83 dBm @ MCS2 40 MHz
  Typ. -80 dBm @ MCS3 40 MHz
  Typ. -77 dBm @ MCS4 40 MHz
  Typ. -72 dBm @ MCS5 40 MHz
  Typ. -71 dBm @ MCS6 40 MHz
  Typ. -70 dBm @ MCS7 40 MHz
  Typ. -66 dBm @ MCS8 40 MHz
  Typ. -64 dBm @ MCS9 40 MHz
WLAN Operation Mode
- Access point
  Client
  Client-Router
  Master
  Slave
  Sniffer
  ACC
Antenna Connectors
- QMA

Ethernet Interface

Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3at for PoE
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1X for authentication
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)
- 1
  Supports IEEE 802.3at PoE

Ethernet Software Features

Management
- DHCP Server/Client
  DNS
  HTTP
  IPv4
  LLDP
  SMTP
  SNMPv1/v2c/v3
  Syslog
  TCP/IP
  Telnet
  UDP
  VLAN
  MXconfig
Security
- HTTPS/SSL
  RADIUS
  SSH
Time Management
- SNTP Client

Firewall

Filter
- ICMP
  MAC address
  IP protocol
  Port-based

Serial Interface

Console Port
- RS-232
  8-pin RJ45

LED Interface

LED Indicators
- PWR1, PWR2, PoE, System, LAN, 2.4GHz, 5GHz, SIG

Input/Output Interface

Digital Inputs
- 2
  Max. input current: 8 mA
  +13 to +30 V for state 1
  +3 to -30 V for state 0
Alarm Contact Channels
- Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons
- Reset button

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 45 x 130 x 118 mm (1.77 x 5.12 x 4.65 in)
Weight
- 800 g (1.76 lb)
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)

Power Parameters

Input Current
- 12-48 VDC, 2.01-0.5 A
Input Voltage
- 12 to 48 VDC
  Redundant dual inputs
  48 VDC Power-over-Ethernet
Power Connector
- 1 removable 10-contact terminal block(s)
Power Consumption
- 24.12 W (max.)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V/m
  IEC 61000-4-8 PFMF: 30 A/m
Safety
- IEC 60950-1
  IEC 62368-1
  UL 62368-1
Railway
- EN 50121-4
  EN 50155
Railway Fire Protection
- EN 45545-2
Radio
- EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, TELEC, NCC, RCM, SRRC, IC

MTBF

Time
- 838,684 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
