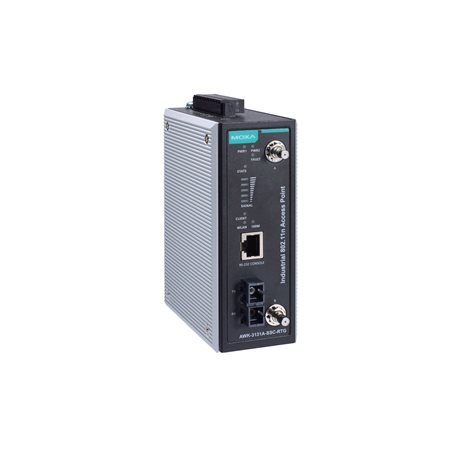

Moxa AWK-3131A-SSC-RTG-US-CT-T

Artikelnummer: AWK-3131A-SSC-RTG-US-CT-T
Kategorie: AWK-3131A-RTG Series
Hersteller: Moxa

802.11n railway trackside indoor single radio access point/client, SC, US band, IP30, -40 to 75°C operating temperature, conformal coating

1.852,20 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

AWK-3131A-SSC-RTG-US-CT-T

AWK-3131A-RTG Series

802.11n railway trackside indoor single radio access point/client, SC, US band, IP30, -40 to 75°C operating temperature, conformal coating

WLAN Interface

WLAN Standards
- 802.11a/b/g/n
  802.11i Wireless Security
Modulation Type
- DSSS
  OFDM
  802.11b: CCK @ 11/5.5 Mbps
  802.11b: DQPSK @ 2 Mbps
  802.11b: DBPSK @ 1 Mbps
  802.11a/g: 64QAM @ 54/48 Mbps
  802.11a/g: 16QAM @ 36/24 Mbps
  802.11a/g: QPSK @ 18/12 Mbps
  802.11a/g: BPSK @ 9/6 Mbps
  802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps
Frequency Band for US (20 MHz operating channels)
- 2.412 to 2.462 GHz (11 channels)
  5.180 to 5.240 GHz (4 channels)
  5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5.500 to 5.700 GHz (8 channels)excluding 5.600 to 5.640 GHz DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5.745 to 5.825 GHz (5 channels)
Wireless Security
- SSID broadcast enable/disable
  WEP encryption (64-bit and 128-bit)
  WPA/WPA2-Personal
  WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
Transmission Rate
- 802.11b: 1 to 11 Mbps
  802.11a/g: 6 to 54 Mbps
  802.11n: 6.5 to 300 Mbps
Transmitter Power for 802.11a
- 23±1.5 dBm @ 6 to 24 Mbps
  21±1.5 dBm @ 36 Mbps
  20±1.5 dBm @ 48 Mbps
  18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz)
- 23±1.5 dBm @ MCS0 20 MHz
  20±1.5 dBm @ MCS1 20 MHz
  20±1.5 dBm @ MCS2 20 MHz
  20±1.5 dBm @ MCS3 20 MHz
  19±1.5 dBm @ MCS4 20 MHz
  18±1.5 dBm @ MCS5 20 MHz
  18±1.5 dBm @ MCS6 20 MHz
  18±1.5 dBm @ MCS7 20 MHz
  23±1.5 dBm @ MCS8 20 MHz
  20±1.5 dBm @ MCS9 20 MHz
  20±1.5 dBm @ MCS10 20 MHz
  20±1.5 dBm @ MCS11 20 MHz
  19±1.5 dBm @ MCS12 20 MHz
  19±1.5 dBm @ MCS13 20 MHz
  18±1.5 dBm @ MCS14 20 MHz
  18±1.5 dBm @ MCS15 20 MHz
  23±1.5 dBm @ MCS0 40 MHz
  20±1.5 dBm @ MCS1 40 MHz
  20±1.5 dBm @ MCS2 40 MHz
  20±1.5 dBm @ MCS3 40 MHz
  19±1.5 dBm @ MCS4 40 MHz
  18±1.5 dBm @ MCS5 40 MHz
  18±1.5 dBm @ MCS6 40 MHz
  18±1.5 dBm @ MCS7 40 MHz
  23±1.5 dBm @ MCS8 40 MHz
  20±1.5 dBm @ MCS9 40 MHz
  20±1.5 dBm @ MCS10 40 MHz
  20±1.5 dBm @ MCS11 40 MHz
  19±1.5 dBm @ MCS12 40 MHz
  19±1.5 dBm @ MCS13 40 MHz
  18±1.5 dBm @ MCS14 40 MHz
  18±1.5 dBm @ MCS15 40 MHz
Transmitter Power for 802.11b
- 26±1.5 dBm @ 1 Mbps
  26±1.5 dBm @ 2 Mbps
  26±1.5 dBm @ 5.5 Mbps
  25±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g
- 23±1.5 dBm @ 6 to 24 Mbps
  21±1.5 dBm @ 36 Mbps
  19±1.5 dBm @ 48 Mbps
  18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz)
- 23±1.5 dBm @ MCS0 20 MHz
  21±1.5 dBm @ MCS1 20 MHz
  21±1.5 dBm @ MCS2 20 MHz
  21±1.5 dBm @ MCS3 20 MHz
  20±1.5 dBm @ MCS4 20 MHz
  19±1.5 dBm @ MCS5 20 MHz
  18±1.5 dBm @ MCS6 20 MHz
  18±1.5 dBm @ MCS7 20 MHz
  23±1.5 dBm @ MCS8 20 MHz
  21±1.5 dBm @ MCS9 20 MHz
  21±1.5 dBm @ MCS10 20 MHz
  21±1.5 dBm @ MCS11 20 MHz
  20±1.5 dBm @ MCS12 20 MHz
  19±1.5 dBm @ MCS13 20 MHz
  18±1.5 dBm @ MCS14 20 MHz
  18±1.5 dBm @ MCS15 20 MHz
  23±1.5 dBm @ MCS0 40 MHz
  20±1.5 dBm @ MCS1 40 MHz
  20±1.5 dBm @ MCS2 40 MHz
  20±1.5 dBm @ MCS3 40 MHz
  19±1.5 dBm @ MCS4 40 MHz
  19±1.5 dBm @ MCS5 40 MHz
  18±1.5 dBm @ MCS6 40 MHz
  17±1.5 dBm @ MCS7 40 MHz
  23±1.5 dBm @ MCS8 40 MHz
  20±1.5 dBm @ MCS9 40 MHz
  20±1.5 dBm @ MCS10 40 MHz
  20±1.5 dBm @ MCS11 40 MHz
  20±1.5 dBm @ MCS12 40 MHz
  19±1.5 dBm @ MCS13 40 MHz
  18±1.5 dBm @ MCS14 40 MHz
  17±1.5 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
- Typ. -90 @ 6 Mbps
  Typ. -88 @ 9 Mbps
  Typ. -88 @ 12 Mbps
  Typ. -85 @ 18 Mbps
  Typ. -81 @ 24 Mbps
  Typ. -78 @ 36 Mbps
  Typ. -74 @ 48 Mbps
  Typ. -74 @ 54 Mbps
  Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
- Typ. -88 dBm @ MCS0 20 MHz
  Typ. -85 dBm @ MCS1 20 MHz
  Typ. -82 dBm @ MCS2 20 MHz
  Typ. -79 dBm @ MCS3 20 MHz
  Typ. -76 dBm @ MCS4 20 MHz
  Typ. -71 dBm @ MCS5 20 MHz
  Typ. -70 dBm @ MCS6 20 MHz
  Typ. -69 dBm @ MCS7 20 MHz
  Typ. -95 dBm @ MCS8 20 MHz
  Typ. -91 dBm @ MCS9 20 MHz
  Typ. -87 dBm @ MCS10 20 MHz
  Typ. -80 dBm @ MCS11 20 MHz
  Typ. -78 dBm @ MCS12 20 MHz
  Typ. -74 dBm @ MCS13 20 MHz
  Typ. -72 dBm @ MCS14 20 MHz
  Typ. -71 dBm @ MCS15 20 MHz
  Typ. -84 dBm @ MCS0 40 MHz
  Typ. -81 dBm @ MCS1 40 MHz
  Typ. -77 dBm @ MCS2 40 MHz
  Typ. -75 dBm @ MCS3 40 MHz
  Typ. -71 dBm @ MCS4 40 MHz
  Typ. -67 dBm @ MCS5 40 MHz
  Typ. -64 dBm @ MCS6 40 MHz
  Typ. -63 dBm @ MCS7 40 MHz
  Typ. -90 dBm @ MCS8 40 MHz
  Typ. -85 dBm @ MCS9 40 MHz
  Typ. -82 dBm @ MCS10 40 MHz
  Typ. -81 dBm @ MCS11 40 MHz
  Typ. -77 dBm @ MCS12 40 MHz
  Typ. -73 dBm @ MCS13 40 MHz
  Typ. -71 dBm @ MCS14 40 MHz
  Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
  Typ. -68 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
- Typ. -93 dBm @ 1 Mbps
  Typ. -93 dBm @ 2 Mbps
  Typ. -93 dBm @ 5.5 Mbps
  Typ. -88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
- Typ. -88 dBm @ 6 Mbps
  Typ. -86 dBm @ 9 Mbps
  Typ. -85 dBm @ 12 Mbps
  Typ. -85 dBm @ 18 Mbps
  Typ. -85 dBm @ 24 Mbps
  Typ. -82 dBm @ 36 Mbps
  Typ. -78 dBm @ 48 Mbps
  Typ. -74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
- Typ. -89 dBm @ MCS0 20 MHz
  Typ. -85 dBm @ MCS1 20 MHz
  Typ. -85 dBm @ MCS2 20 MHz
  Typ. -82 dBm @ MCS3 20 MHz
  Typ. -78 dBm @ MCS4 20 MHz
  Typ. -74 dBm @ MCS5 20 MHz
  Typ. -72 dBm @ MCS6 20 MHz
  Typ. -70 dBm @ MCS7 20 MHz
  Typ. -95 dBm @ MCS8 20 MHz
  Typ. -90 dBm @ MCS9 20 MHz
  Typ. -87 dBm @ MCS10 20 MHz
  Typ. -83 dBm @ MCS11 20 MHz
  Typ. -80 dBm @ MCS12 20 MHz
  Typ. -74 dBm @ MCS13 20 MHz
  Typ. -71 dBm @ MCS14 20 MHz
  Typ. -69 dBm @ MCS15 20 MHz
  Typ. -87 dBm @ MCS0 40 MHz
  Typ. -83 dBm @ MCS1 40 MHz
  Typ. -83 dBm @ MCS2 40 MHz
  Typ. -80 dBm @ MCS3 40 MHz
  Typ. -76 dBm @ MCS4 40 MHz
  Typ. -73 dBm @ MCS5 40 MHz
  Typ. -69 dBm @ MCS6 40 MHz
  Typ. -67 dBm @ MCS7 40 MHz
  Typ. -93 dBm @ MCS8 40 MHz
  Typ. -88 dBm @ MCS9 40 MHz
  Typ. -85 dBm @ MCS10 40 MHz
  Typ. -82 dBm @ MCS11 40 MHz
  Typ. -78 dBm @ MCS12 40 MHz
  Typ. -73 dBm @ MCS13 40 MHz
  Typ. -69 dBm @ MCS14 40 MHz
  Typ. -67 dBm @ MCS15 40 MHz
WLAN Operation Mode
- Access point, Client, Client-Router, Sniffer
Antenna Connectors
- QMA

Ethernet Interface

PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)
- 1, AWK-3131A-M12-RTG only
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3af for PoE
  IEEE 802.1Q for VLAN Tagging
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
- 1, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection (AWK-3131A-M12-RTG only)
100BaseFX Ports (single-mode SC connector)
- 1, AWK-3131A-SSC-RTG only
Optical Fiber
- 100BaseFX

  Wavelength 1310 nm

  Max. TX 0 dBm

  Min. TX -5 dBm

  RX Sensitivity -34 dBm

  Link Budget 29 dB

  Typical Distance 40 km

Ethernet Software Features

Management
- General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP
  AP-only: ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w)
Security
- RADIUS

Firewall

Filter
- MAC/IP Protocol/Port-based

Serial Interface

Console Port
- RS-232 (RJ45-type)

LED Interface

LED Indicators
- PWR1, PWR2, PoE*, FAULT, STATE, SIGNAL, CLIENT, WLAN, LAN (AWK-3131A-M12-RTG only),100M (AWK-3131A-SSC-RTG only)
  *PoE is only available for the AWK-3131A-M12-RTG

Input/Output Interface

Digital Inputs
- 2
  +13 to +30 V for state 1
  +3 to -30 V for state 0
  Max. input current: 8 mA
Alarm Contact Channels
- Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons
- Reset button

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 52.9 x 151.9 x 127.4 mm (2.08 x 5.98 x 5.02 in)
Weight
- 850 g (1.87 lb)
Installation
- DIN-rail mounting, Wall mounting (with optional kit)

Power Parameters

Input Current
- AWK-3131A-M12-RTG: 0.85 A @ 12 VDC, 0.22 A @ 48 VDC
  AWK-3131A-SSC-RTG: 1.0 A @ 12 VDC, 0.27 A @ 48 VDC
Input Voltage
- 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Connector
- 1 removable 10-contact terminal block(s)
Power Consumption
- AWK-3131A-M12-RTG: Maximum 10.5 W
  AWK-3131A-SSC-RTG: Maximum 13 W
Reverse Polarity Protection
- Supported

Environmental Limits

Operating Temperature
- Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class B
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8
Railway
- EN 50155, EN 50121-4
Railway Fire Protection
- EN 45545-2
Radio
- EN 301 489-1/17, EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, SRRC, NCC, IDA
Safety
- UL 60950-1, IEC 60950-1, EN 60950-1 (LVD)

MTBF

Time
- AWK-3131A-M12-RTG: 552,454 hrs
  AWK-3131A-SSC-RTG: 528,478 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty

	100BaseFX
Wavelength	1310 nm
Max. TX	0 dBm
Min. TX	-5 dBm
RX Sensitivity	-34 dBm
Link Budget	29 dB
Typical Distance	40 km
