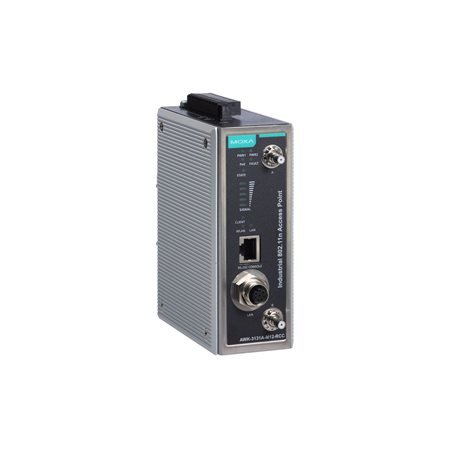

Moxa AWK-3131A-M12-RCC-US-T

Artikelnummer: AWK-3131A-M12-RCC-US-T
Kategorie: AWK-3131A-RCC Series
Hersteller: Moxa

802.11n rail onboard indoor single-radio AP/client, IP30, US band, -40 to 75°C operating temperature

1.608,18 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

AWK-3131A-M12-RCC-US-T

AWK-3131A-RCC Series

802.11n rail onboard indoor single-radio AP/client, IP30, US band, -40 to 75°C operating temperature

WLAN Interface

WLAN Standards
- 802.11a/b/g/n
  802.11i Wireless Security
Modulation Type
- DSSS
  OFDM
  802.11b: CCK @ 11/5.5 Mbps
  802.11b: DQPSK @ 2 Mbps
  802.11b: DBPSK @ 1 Mbps
  802.11a/g: 64QAM @ 54/58 Mbps
  802.11a/g: 16QAM @ 36/24 Mbps
  802.11a/g: QPSK @ 18/12 Mbps
  802.11a/g: BPSK @ 9/6 Mbps
  802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps
Frequency Band for US (20 MHz operating channels)
- 2.412 to 2.462 GHz (11 channels)
  5.180 to 5.240 GHz (4 channels)
  5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5.500 to 5.700 GHz (8 channels) excluding 5.600 to 5.640 GHz DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  5.745 to 5.825 GHz (5 channels)
Wireless Security
- SSID broadcast enable/disable
  WEP encryption (64-bit and 128-bit)
  WPA/WPA2-Personal
  WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
Transmission Rate
- 802.11b: 1 to 11 Mbps
  802.11a/g: 6 to 54 Mbps
  802.11n: 6.5 to 300 Mbps
Transmitter Power for 802.11a
- 23±1.5 dBm @ 6 to 24 Mbps
  21±1.5 dBm @ 36 Mbps
  20±1.5 dBm @ 48 Mbps
  18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz)
- 23±1.5 dBm @ MCS0 20 MHz
  20±1.5 dBm @ MCS1 20 MHz
  20±1.5 dBm @ MCS2 20 MHz
  20±1.5 dBm @ MCS3 20 MHz
  19±1.5 dBm @ MCS4 20 MHz
  18±1.5 dBm @ MCS5 20 MHz
  18±1.5 dBm @ MCS6 20 MHz
  18±1.5 dBm @ MCS7 20 MHz
  23±1.5 dBm @ MCS8 20 MHz
  20±1.5 dBm @ MCS9 20 MHz
  20±1.5 dBm @ MCS10 20 MHz
  20±1.5 dBm @ MCS11 20 MHz
  19±1.5 dBm @ MCS12 20 MHz
  19±1.5 dBm @ MCS13 20 MHz
  18±1.5 dBm @ MCS14 20 MHz
  18±1.5 dBm @ MCS15 20 MHz
  23±1.5 dBm @ MCS0 40 MHz
  20±1.5 dBm @ MCS1 40 MHz
  20±1.5 dBm @ MCS2 40 MHz
  20±1.5 dBm @ MCS3 40 MHz
  19±1.5 dBm @ MCS4 40 MHz
  18±1.5 dBm @ MCS5 40 MHz
  18±1.5 dBm @ MCS6 40 MHz
  18±1.5 dBm @ MCS7 40 MHz
  23±1.5 dBm @ MCS8 40 MHz
  20±1.5 dBm @ MCS9 40 MHz
  20±1.5 dBm @ MCS10 40 MHz
  20±1.5 dBm @ MCS11 40 MHz
  19±1.5 dBm @ MCS12 40 MHz
  19±1.5 dBm @ MCS13 40 MHz
  18±1.5 dBm @ MCS14 40 MHz
  18±1.5 dBm @ MCS15 40 MHz
Transmitter Power for 802.11b
- 26±1.5 dBm @ 1 Mbps
  26±1.5 dBm @ 2 Mbps
  26±1.5 dBm @ 5.5 Mbps
  25±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g
- 23±1.5 dBm @ 6 to 24 Mbps
  21±1.5 dBm @ 36 Mbps
  19±1.5 dBm @ 48 Mbps
  18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz)
- 23±1.5 dBm @ MCS0 20 MHz
  21±1.5 dBm @ MCS1 20 MHz
  21±1.5 dBm @ MCS2 20 MHz
  21±1.5 dBm @ MCS3 20 MHz
  20±1.5 dBm @ MCS4 20 MHz
  19±1.5 dBm @ MCS5 20 MHz
  18±1.5 dBm @ MCS6 20 MHz
  18±1.5 dBm @ MCS7 20 MHz
  23±1.5 dBm @ MCS8 20 MHz
  21±1.5 dBm @ MCS9 20 MHz
  21±1.5 dBm @ MCS10 20 MHz
  21±1.5 dBm @ MCS11 20 MHz
  20±1.5 dBm @ MCS12 20 MHz
  19±1.5 dBm @ MCS13 20 MHz
  18±1.5 dBm @ MCS14 20 MHz
  18±1.5 dBm @ MCS15 20 MHz
  23±1.5 dBm @ MCS0 40 MHz
  20±1.5 dBm @ MCS1 40 MHz
  20±1.5 dBm @ MCS2 40 MHz
  20±1.5 dBm @ MCS3 40 MHz
  19±1.5 dBm @ MCS4 40 MHz
  19±1.5 dBm @ MCS5 40 MHz
  18±1.5 dBm @ MCS6 40 MHz
  17±1.5 dBm @ MCS7 40 MHz
  23±1.5 dBm @ MCS8 40 MHz
  20±1.5 dBm @ MCS9 40 MHz
  20±1.5 dBm @ MCS10 40 MHz
  20±1.5 dBm @ MCS11 40 MHz
  20±1.5 dBm @ MCS12 40 MHz
  19±1.5 dBm @ MCS13 40 MHz
  18±1.5 dBm @ MCS14 40 MHz
  17±1.5 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
- Typ. -90 @ 6 Mbps
  Typ. -88 @ 9 Mbps
  Typ. -88 @ 12 Mbps
  Typ. -85 @ 18 Mbps
  Typ. -81 @ 24 Mbps
  Typ. -78 @ 36 Mbps
  Typ. -74 @ 48 Mbps
  Typ. -74 @ 54 Mbps
  Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
- Typ. -88 dBm @ MCS0 20 MHz
  Typ. -85 dBm @ MCS1 20 MHz
  Typ. -82 dBm @ MCS2 20 MHz
  Typ. -79 dBm @ MCS3 20 MHz
  Typ. -76 dBm @ MCS4 20 MHz
  Typ. -71 dBm @ MCS5 20 MHz
  Typ. -70 dBm @ MCS6 20 MHz
  Typ. -69 dBm @ MCS7 20 MHz
  Typ. -95 dBm @ MCS8 20 MHz
  Typ. -91 dBm @ MCS9 20 MHz
  Typ. -87 dBm @ MCS10 20 MHz
  Typ. -80 dBm @ MCS11 20 MHz
  Typ. -78 dBm @ MCS12 20 MHz
  Typ. -74 dBm @ MCS13 20 MHz
  Typ. -72 dBm @ MCS14 20 MHz
  Typ. -71 dBm @ MCS15 20 MHz
  Typ. -84 dBm @ MCS0 40 MHz
  Typ. -81 dBm @ MCS1 40 MHz
  Typ. -77 dBm @ MCS2 40 MHz
  Typ. -75 dBm @ MCS3 40 MHz
  Typ. -71 dBm @ MCS4 40 MHz
  Typ. -67 dBm @ MCS5 40 MHz
  Typ. -64 dBm @ MCS6 40 MHz
  Typ. -63 dBm @ MCS7 40 MHz
  Typ. -90 dBm @ MCS8 40 MHz
  Typ. -85 dBm @ MCS9 40 MHz
  Typ. -82 dBm @ MCS10 40 MHz
  Typ. -81 dBm @ MCS11 40 MHz
  Typ. -77 dBm @ MCS12 40 MHz
  Typ. -73 dBm @ MCS13 40 MHz
  Typ. -71 dBm @ MCS14 40 MHz
  Typ. -68 dBm @ MCS15 40 MHz
  Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
- Typ. -93 dBm @ 1 Mbps
  Typ. -93 dBm @ 2 Mbps
  Typ. -93 dBm @ 5.5 Mbps
  Typ. -88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
- Typ. -88 dBm @ 6 Mbps
  Typ. -86 dBm @ 9 Mbps
  Typ. -85 dBm @ 12 Mbps
  Typ. -85 dBm @ 18 Mbps
  Typ. -85 dBm @ 24 Mbps
  Typ. -82 dBm @ 36 Mbps
  Typ. -78 dBm @ 48 Mbps
  Typ. -74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
- Typ. -89 dBm @ MCS0 20 MHz
  Typ. -85 dBm @ MCS1 20 MHz
  Typ. -85 dBm @ MCS2 20 MHz
  Typ. -82 dBm @ MCS3 20 MHz
  Typ. -78 dBm @ MCS4 20 MHz
  Typ. -74 dBm @ MCS5 20 MHz
  Typ. -72 dBm @ MCS6 20 MHz
  Typ. -70 dBm @ MCS7 20 MHz
  Typ. -95 dBm @ MCS8 20 MHz
  Typ. -90 dBm @ MCS9 20 MHz
  Typ. -87 dBm @ MCS10 20 MHz
  Typ. -83 dBm @ MCS11 20 MHz
  Typ. -80 dBm @ MCS12 20 MHz
  Typ. -74 dBm @ MCS13 20 MHz
  Typ. -71 dBm @ MCS14 20 MHz
  Typ. -69 dBm @ MCS15 20 MHz
  Typ. -87 dBm @ MCS0 40 MHz
  Typ. -83 dBm @ MCS1 40 MHz
  Typ. -83 dBm @ MCS2 40 MHz
  Typ. -80 dBm @ MCS3 40 MHz
  Typ. -76 dBm @ MCS4 40 MHz
  Typ. -73 dBm @ MCS5 40 MHz
  Typ. -69 dBm @ MCS6 40 MHz
  Typ. -67 dBm @ MCS7 40 MHz
  Typ. -93 dBm @ MCS8 40 MHz
  Typ. -88 dBm @ MCS9 40 MHz
  Typ. -85 dBm @ MCS10 40 MHz
  Typ. -82 dBm @ MCS11 40 MHz
  Typ. -78 dBm @ MCS12 40 MHz
  Typ. -73 dBm @ MCS13 40 MHz
  Typ. -69 dBm @ MCS14 40 MHz
  Typ. -67 dBm @ MCS15 40 MHz
WLAN Operation Mode
- Access point, Client, Client-Router, Sniffer
Antenna Connectors
- QMA

Ethernet Interface

PoE Ports (10/100/1000BaseT(X), M12 A-coded 8-pin female connector)
- 1
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3ab for 1000BaseT
  IEEE 802.3af for PoE
  IEEE 802.1Q for VLAN Tagging
10/100/1000BaseT(X) Ports (M12 A-coded 8-pin female connector)
- 1, M12 A-coded 8-pin female connector, 10/100/1000BaseT(X) auto negotiation speed, F/H duplex mode, auto MDI/MDI-X connection

Ethernet Software Features

Management
- General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, DHCP
  AP-only: ARP, BOOTP, DHCP
Security
- RADIUS

Firewall

Filter
- MAC/IP Protocol/Port-based

Serial Interface

Console Port
- RS-232 (RJ45-type)

LED Interface

LED Indicators
- PWR1, PWR2, PoE, FAULT, STATE, SIGNAL, Client, WLAN, LAN

Input/Output Interface

Digital Inputs
- 2
  +13 to +30 V for state 1
  +3 to -30 V for state 0
  Max. input current: 8 mA
Alarm Contact Channels
- Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons
- Reset button

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 52.9 x 151.9 x 127.4 mm (2.08 x 5.98 x 5.02 in)
Weight
- 850 g (1.87 lb)
Installation
- DIN-rail mounting, Wall mounting (with optional kit)

Power Parameters

Input Current
- 0.67 A @ 12 VDC, 0.17 A @ 48 VDC
Input Voltage
- 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Connector
- 1 removable 10-contact terminal block(s)
Power Consumption
- Maximum 8.03 W
Reverse Polarity Protection
- Supported

Environmental Limits

Operating Temperature
- Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class B
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Railway
- EN 50155, EN 50121-4
Railway Fire Protection
- EN 45545-2
Radio
- EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, IDA
Safety
- UL 60950-1, IEC 60950-1, EN 60950-1 (LVD)

MTBF

Time
- 742,649 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
