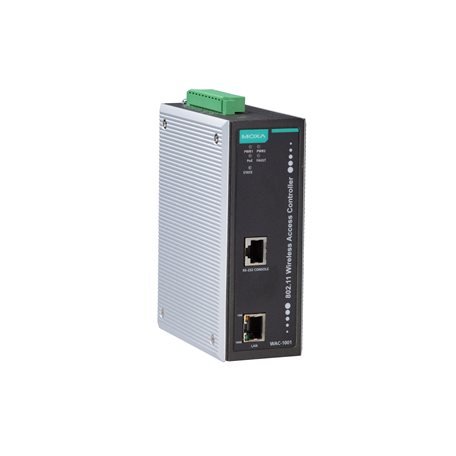

Moxa WAC-1001-T

Moxa WAC-1001-T

Artikelnummer: WAC-1001-T
Kategorie: WAC-1001 Series
Hersteller: Moxa

Industrial wireless access controller, -40 to 75°C operating temperature

3.006,64 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

WAC-1001-T

WAC-1001 Series

Industrial wireless access controller, -40 to 75°C operating temperature

Input/Output Interface

Alarm Contact Channels
- 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)
- 1
Standards
- IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3af for PoE
  IEEE 802.3u for 100BaseT(X)
Total Port Count
- 1
Highest Speed
- 1G
Connections
- PoE

Ethernet Software Features

Management
- IPv4, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, TFTP, Web Console, Wireless Search Utility
Security
- HTTPS/SSL, RADIUS, SSH
Time Management
- NTP Client, SNTP

Serial Interface

Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Flow Control
- RTS/CTS, XON/XOFF
Parity
- None, Even, Odd, Space, Mark

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Wireless Access Control

Controller Failover Mode
- 1-on-1 hot backup
Handover Time
- 50 ms
WLAN Products Supported
- 110 radios

Power Parameters

Input Current
- 0.6 A @ 12 VDC, 0.15 A @ 48 VDC
Input Voltage
- 12 to 48 VDC, Redundant dual inputs
Source of Input Power
- PoE (IEEE 802.3af)

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions (without ears)
- 52.85 x 135 x 105 mm (2.08 x 5.32 x 4.13 in)
Weight
- 1,060 g (2.34 lb)
Installation
- DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Railway
- EN 50121-4, EN 50155
Safety
- EN 60950-1, IEC 60950-1, UL 60950-1

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 447,425 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
