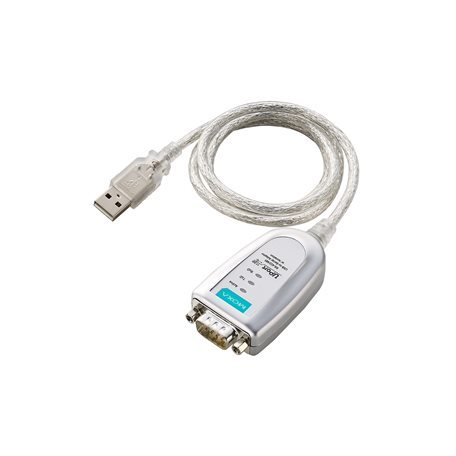

Moxa UPort 1130I

Moxa UPort 1130I

Artikelnummer: UPort 1130I
Kategorie: UPort 1000 Series
Hersteller: Moxa

1-port RS-422/485 USB-to-serial converter with 2 kV optical isolation

142,10 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

UPort 1130I

UPort 1100 Series

1-port RS-422/485 USB-to-serial converter with 2 kV optical isolation

USB Interface

Speed
- 12 Mbps
USB Connector
- USB Type A
USB Standards
- USB 2.0 compatible, USB 1.0/1.1 compliant

Serial Interface

No. of Ports
- 1
Connector
- DB9 male
Baudrate
- 50 bps to 921.6 kbps
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- None
  RTS/CTS
  XON/XOFF
Isolation
- 2 kV
Serial Standards
- RS-422/485

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND

Serial Software Features

Windows Drivers
- Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP
  Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
Linux Drivers
- Kernel 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Mac Drivers
- macOS 10.12 to 10.15
Arm®-based Platform Support
- Linux kernel 6.x, 5.x, and 4.x
  Windows 11
Virtual Machine
- VMware Fusion (Windows on macOS 10.12 to 10.15)
  VMWare ESXi (Windows 7 to 10, Windows Server 2008 R2 to 2019)
  VMWare ESXi (Linux kernel 5 and 4)
  Parallels Desktop (Windows on macOS 10.12 to 10.15)
Android API
- Android 3.1.x and later

Power Parameters

Input Voltage
- 5 VDC
Input Current
- 65 mA

Physical Characteristics

Housing
- ABS + Polycarbonate
Dimensions
- 37.5 x 20.5 x 60 mm (1.48 x 0.81 x 2.36 in)
Weight
- 200 g (0.44 lb)

Environmental Limits

Operating Temperature
- 0 to 55°C (32 to 131°F)
Storage Temperature (package included)
- -20 to 70°C (-4 to 158°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class 1
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 2 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
  IEC 61000-4-8 PFMF

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 1,949,025 hrs
Standards
- MIL-HDBK-217F
  Telcordia (Bellcore), GB
