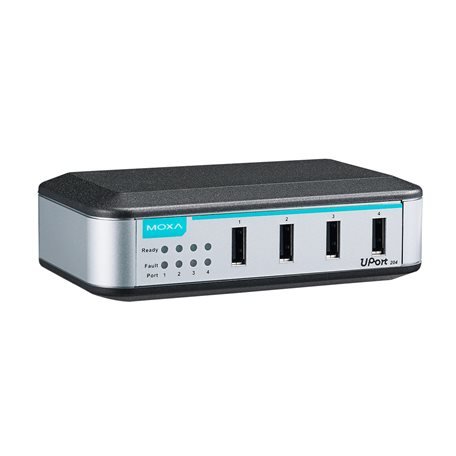

Moxa UPort 204

Artikelnummer: UPort 204
Kategorie: UPort 204/207 Series
Hersteller: Moxa

4-port entry-level USB hub, adaptor included

187,77 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

UPort 204

UPort 204/207 Series

4-port entry-level USB hub, adaptor included

USB Interface

Speed
- 12 Mbps, 480 Mbps
USB Connector
- USB Type B
USB Standards
- USB 1.1/2.0 compliant
No. of USB Ports
- 4

Power Parameters

Input Voltage
- 12 to 40 VDC
Input Current
- 1.21 A @ 12 VDC

Physical Characteristics

Housing
- Polycarbonate (PC)
Dimensions
- 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
Weight
- Packaged: 805 g (1.77 lb)
  Product only: 800 g (1.76 lb)

Environmental Limits

Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature (package included)
- -20 to 75°C (-4 to 167°F)

Standards and Certifications

EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV
  IEC 61000-4-5 Surge: Power: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-3
Freefall
- IEC 60068-2-34

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 1,577,573 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
