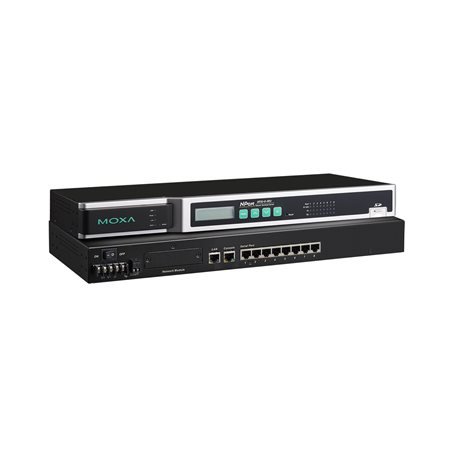

Moxa NPort 6610-8-48V

Moxa NPort 6610-8-48V

Artikelnummer: NPort 6610-8-48V
Kategorie: NPort 6400/6600 Series
Hersteller: Moxa

8-port RS-232 to Ethernet secure device server, ±48 VDC input

1.159,34 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

NPort 6610-8-48V

NPort 6400/6600 Series

8-port RS-232 to Ethernet secure device server, ±48 VDC input

Memory

SD Slot
- Up to 32 GB (SD 2.0 compatible)

Input/Output Interface

Alarm Contact Channels
- Resistive load: 1 A @ 24 VDC

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 1
  Auto MDI/MDI-X connection
Magnetic Isolation Protection
- 1.5 kV (built-in)
Compatible Modules
- NM Series expansion modules for optional extension of RJ45 and fiber Ethernet ports

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Ethernet Software Features

Configuration Options
- Web Console (HTTP/HTTPS)
  Windows Utility
  Device Search Utility (DSU)
  MCC Tool
  Serial Console
  Telnet/SSH Console
Management
- ARP
  BOOTP
  DHCP Client
  DNS
  HTTP
  ICMP
  IPv4/IPv6
  LLDP
  PPPOE
  SMTP
  SNMPv1/v2c/v3
  SNTP
  TCP/IP
  Telnet
  UDP
Windows Real COM Drivers
- Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
  Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
  Windows Embedded CE 6.0/5.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Fixed TTY Drivers
- macOS Versions: 11.x, 10.12 to 10.15

  SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support
- Linux Kernel 5.x/4.x
Virtual Machine
- VMWare ESXi (Windows 11/10)
  VMware Fusion (Windows on macOS 10.12 to 11.x)
  Parallels Desktop (Windows on macOS 10.12 to 11.x)
Android API
- Android 3.1.x and later
MIB
- MIB-II
Time Management
- SNTP Client
Unicast Routing
- RIPV1/V2
  Static Route

Security Functions

Authentication
- Local database
  RADIUS
  TACACS+
Encryption
- HTTPS
  AES-128
  AES-256
  HMAC
  RSA-1024
  SHA-1
  SHA-256
  SHA-384
Security Protocols
- HTTPS (TLS 1.2)
  SNMPv3
  SSHv2

Serial Interface

Connector
- 8-pin RJ45
No. of Ports
- 8
Serial Standards
- RS-232
Secure Operation Modes
- Reverse SSH
  Secure Pair Connection
  Secure Real COM
  Secure TCP Client
  Secure TCP Server
  SSH
Standard Operation Modes
- Disabled
  Ethernet Modem
  Pair Connection
  PPP
  Printer
  Real COM
  Reverse Telnet
  RFC2217
  TCP Client
  TCP Server
  Terminal
  UDP
Baudrate
- 50 bps to 921.6 kbps (supports non-standard baudrates)
Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None
  Even
  Odd
  Space
  Mark
Flow Control
- RTS/CTS
  DTR/DSR
  XON/XOFF

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Power Parameters

Input Current
- 293 mA @ 48 VDC
Input Voltage
- ±48 VDC, 20 to 72 VDC, -20 to -72 VDC

Reliability

Automatic Reboot Trigger
- Built-in WDT
Alert Tools
- Built-in buzzer and RTC (real-time clock)

Physical Characteristics

Housing
- Metal
Installation
- Rack mounting
Dimensions (with ears)
- 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)
Dimensions (without ears)
- 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
Weight
- 3460 g (7.63 lb)
Interactive Interface
- LCD panel display
  Push buttons for configuration

Environmental Limits

Operating Temperature
- 0 to 55°C (32 to 131°F)
Storage Temperature (package included)
- -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
Safety
- UL 60950-1
Traffic Control
- NEMA TS2
Vibration
- IEC 60068-2-6
Freefall
- IEC 60068-2-34

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 135,891 hrs
Standards
- Telcordia (Bellcore) Standard

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
