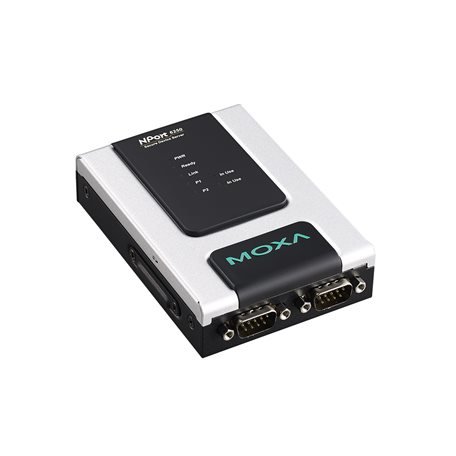

Moxa NPort 6250-T

Moxa NPort 6250-T

Artikelnummer: NPort 6250-T
Kategorie: NPort 6100/6200 Series
Hersteller: Moxa

2-port RS-232/422/485 to Ethernet secure device server, -40 to 75°C operating temperature

582,12 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

NPort 6250-T

NPort 6100/6200 Series

2-port RS-232/422/485 to Ethernet secure device server, -40 to 75°C operating temperature

Memory

SD Slot
- Up to 32 GB (SD 2.0 compatible)

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 1
Magnetic Isolation Protection
- 1.5 kV (built-in)

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Ethernet Software Features

Configuration Options
- Web Console (HTTP/HTTPS)
  Windows Utility
  Device Search Utility (DSU)
  MCC Tool
  Serial Console
  Telnet/SSH Console
Management
- ARP
  BOOTP
  DHCP Client
  DNS
  HTTP
  ICMP
  IPv4/IPv6
  LLDP
  PPPOE
  SMTP
  SNMPv1/v2c/v3
  SNTP
  TCP/IP
  Telnet
  UDP
Windows Real COM Drivers
- Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
  Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
  Windows Embedded CE 6.0/5.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Fixed TTY Drivers
- macOS Versions: 11.x, 10.12 to 10.15
  SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support
- Linux Kernel 5.x/4.x
Virtual Machine
- VMWare ESXi (Windows 11/10)
  VMware Fusion (Windows on macOS 10.12 to 11.x)
  Parallels Desktop (Windows on macOS 10.12 to 11.x)
Android API
- Android 3.1.x and later
Time Management
- SNTP Client
MIB
- MIB-II
Unicast Routing
- RIPV1/V2
  Static Route

Security Functions

Authentication
- Local database
  RADIUS
  TACACS+
Encryption
- HTTPS
  AES-128
  AES-256
  HMAC
  RSA-1024
  SHA-1
  SHA-256
  SHA-384
Security Protocols
- HTTPS (TLS 1.2)
  SNMPv3
  SSHv2

Serial Interface

Connector
- DB9 male
No. of Ports
- 2
Serial Standards
- RS-232
  RS-422
  RS-485
Secure Operation Modes
- Reverse SSH
  Secure Pair Connection
  Secure Real COM
  Secure TCP Client
  Secure TCP Server
  SSH
Standard Operation Modes
- Disabled
  Ethernet Modem
  Pair Connection
  PPP
  Printer
  Real COM
  Reverse Telnet
  RFC2217
  TCP Client
  TCP Server
  Terminal
  UDP
Baudrate
- 50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Flow Control
- RTS/CTS
  DTR/DSR
  XON/XOFF
Parity
- None, Even, Odd, Space, Mark
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control
- Automatic Data Direction Control (ADDC)
Terminator for RS-485
- 120 ohms

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND

Power Parameters

Input Current
- 430 mA @ 12 to 48 VDC
Input Voltage
- 12 to 48 VDC

Reliability

Automatic Reboot Trigger
- Built-in WDT
Alert Tools
- Built-in buzzer and RTC (real-time clock)

Physical Characteristics

Housing
- Metal
Dimensions (with ears)
- 101 x 111 x 29 mm (3.98 x 4.37 x 1.1 in)
Dimensions (without ears)
- 77 x 111 x 29 mm (3.30 x 4.37 x 1.1 in)
Weight
- 240 g (0.53 lb)
Installation
- Desktop
  DIN-rail mounting (with optional kit)
  Wall mounting

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 1 kV
  IEC 61000-4-6 CS: 3 V
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Traffic Control
- NEMA TS2
Vibration
- IEC 60068-2-6
Freefall
- IEC 60068-2-34
Safety
- UL 60950-1
  UL 62368-1

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 1,606,182 hrs
Standards
- Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
