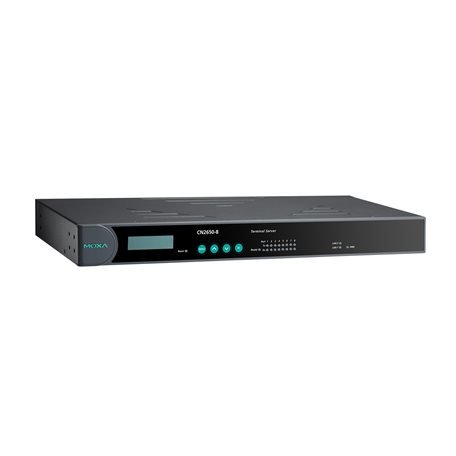

Moxa CN2650I-8

Artikelnummer: CN2650I-8
Kategorie: CN2600 Series
Hersteller: Moxa

Dual-LAN terminal server with 8 RS-232/422/485 ports, 2 kV optical isolation

1.680,70 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

CN2650I-8

CN2600 Series

Dual-LAN terminal server with 8 RS-232/422/485 ports, 2 kV optical isolation

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2
Magnetic Isolation Protection
- 1.5 kV (built-in)

Ethernet Software Features

Configuration Options
- Serial Console, Telnet Console, Windows Utility, Device Search Utility (DSU), Web Console (HTTP/HTTPS)
Management
- ARP, BOOTP, DDNS, DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP, SLIP
MIB
- MIB-II
Security
- HTTPS/SSL, RADIUS, SSH, PAP, CHAP
Unicast Routing
- RIPV1/V2, Static Route
Windows Real COM Drivers
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
- SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API
- Android 3.1.x and later

Security Functions

Authentication
- Local database (password only)
  RADIUS
Encryption
- HTTPS, AES-128, AES-256, HMAC, RSA-1024, SHA-1
Security Protocols
- SNMPv3
  SSHv2

Serial Interface

Connector
- DB9 male
No. of Ports
- 8
Serial Standards
- RS-232, RS-422, RS-485
Operation Modes
- Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Terminal mode, Reverse Telnet mode, PPP mode, DRDAS mode, Redundant COM mode, Disabled
Baudrate
- 50 bps to 921.6 kbps
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- None, RTS/CTS, DTR/DSR, XON/XOFF
Isolation
- 2 kV
RS-485 Data Direction Control
- ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
- 120 ohms
Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND

Power Parameters

No. of Power Inputs
- 1
Input Current
- 130 mA @ 110 VAC
Input Voltage
- 100 to 240 VAC (50/60 Hz)

Reliability

Automatic Reboot Trigger
- Built-in WDT
Alert Tools
- Built-in buzzer and RTC (real-time clock)

Physical Characteristics

Housing
- Metal
Installation
- 19-inch rack mounting
Dimensions (with ears)
- 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in)
Dimensions (without ears)
- 440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in)
Weight
- 3,907 g (8.61 lb)

Environmental Limits

Operating Temperature
- 0 to 55°C (32 to 131°F)
Storage Temperature (package included)
- 0 to 55°C (32 to 131°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Safety
- UL 62368-1
Vibration
- IEC 60068-2-6
Freefall
- IEC 60068-2-32

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 374,652 hrs
Standards
- Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
