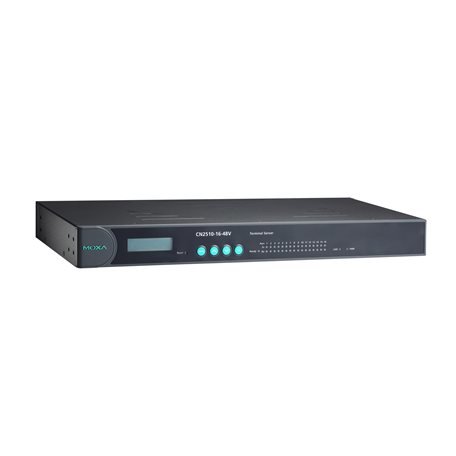

Moxa CN2510-16-48V

Moxa CN2510-16-48V

Artikelnummer: CN2510-16-48V
Kategorie: CN2510 Series
Hersteller: Moxa

16-port RS-232 Async Server, +/-48 VDC power input

1.255,38 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

CN2510-16-48V

CN2510 Series

16-port RS-232 Async Server, +/-48 VDC power input

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 1

Ethernet Software Features

Management
- Device Search Utility (DSU), DHCP Client, TCP/IP, UDP
MIB
- MIB-II
Security
- RADIUS
Unicast Routing
- RIPV1/V2, Static Route
Windows Real COM Drivers
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
- SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15

Serial Interface

Connector
- 8-pin RJ45
No. of Ports
- 16
Serial Standards
- RS-232
Operation Modes
- Terminal mode
Baudrate
- 50 bps to 921.6 kbps
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- None, RTS/CTS, XON/XOFF

Power Parameters

Input Current
- 180 mA @ 48 VDC
Input Voltage
- ±48 VDC (38 to 72 VDC, -38 to -72 VDC)

Physical Characteristics

Housing
- Metal
Installation
- 19-inch rack mounting
Dimensions
- 440 x 198 x 45 mm (17.3 x 7.8 x 1.77 in)
Weight
- 2,480 g (5.27 lb)

Environmental Limits

Operating Temperature
- 0 to 55°C (32 to 131°F)
Storage Temperature (package included)
- -20 to 70°C (-4 to 158°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
Safety
- EN 60950-1, UL 60950-1

MTBF

Time
- 650,342 hrs
Standards
- Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
