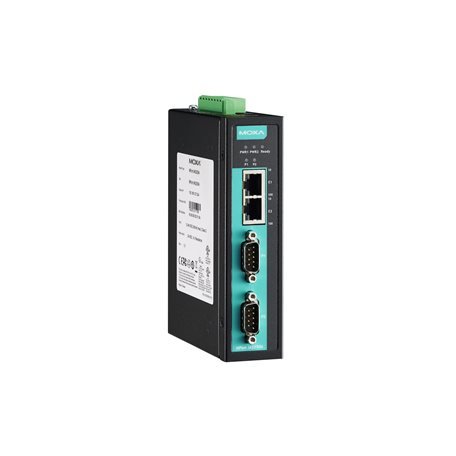

Moxa NPort IA5250A

Artikelnummer: NPort IA5250A
Kategorie: NPort IA5000A Series
Hersteller: Moxa

2-port RS-232/422/485 industrial automation device server with serial/LAN/power surge protection, 2 10/100BaseT(X) ports with single IP, 0 to 60°C operating temperature

391,31 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

NPort IA5250A

NPort IA5000A Series

2-port RS-232/422/485 industrial automation device server with serial/LAN/power surge protection, 2 10/100BaseT(X) ports with single IP, 0 to 60°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- Supports 2 IP addresses
  Auto MDI/MDI-X connection
Magnetic Isolation Protection
- 1.5 kV (built-in)

Ethernet Software Features

Configuration Options
- Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Serial Console, Telnet Console
Management
- ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Filter
- IGMP v1/v2
Linux Real TTY Drivers
- Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
- SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
Android API
- Android 3.1.x and later
Time Management
- SNTP
Windows Real COM Drivers
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded

Security Functions

Authentication
- Local database
Encryption
- HTTPS, AES-128, RSA-1024, SHA-1, SHA-256

Serial Interface

Connector
- DB9 male
No. of Ports
- 2
Serial Standards
- RS-232, RS-422, RS-485
Operation Modes
- Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
Baudrate
- Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
- 120 ohms
RS-485 Data Direction Control
- ADDC (automatic data direction control)

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND

Power Parameters

Input Current
- 250 mA @ 12 VDC
Input Voltage
- 12 to 48 VDC
No. of Power Inputs
- 2
Power Connector
- Terminal block

Physical Characteristics

Housing
- Metal
Dimensions
- 36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in)
Weight
- 485 g (1.07 lb)
Installation
- DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature (package included)
- -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Hazardous Locations
- ATEX Zone 2, UL/cUL Class I Division 2 Groups A/B/C/D
Safety
- UL 508
Vibration
- IEC 60068-2-6
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-32

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 262,805 hrs
Standards
- Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
