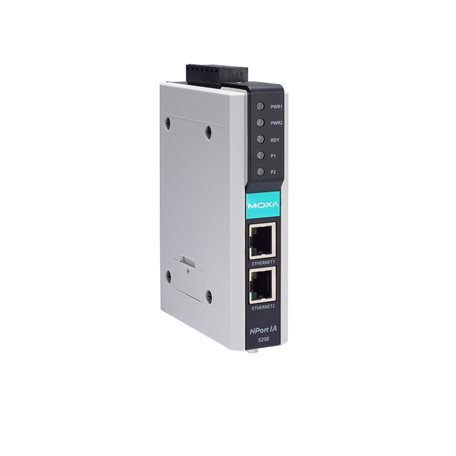

Moxa NPort IA-5250I-T

2-port RS-232/422/485 device server with 2 100BaseT(X) ports (RJ45 connectors, single IP), 2 KV optical isolation, -40 to 75°C operating temperature

623,28 €

exkl. 19% USt. , zzgl. (Standard)

Stk

2-port RS-232/422/485 device server with 2 100BaseT(X) ports (RJ45 connectors, single IP), 2 KV optical isolation, -40 to 75°C operating temperature

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Configuration Options
- Web Console (HTTP)
  Windows Utility
  Telnet Console
  Serial Console
Management
- DHCP Client
  IPv4
  SMTP
  SNMPv1
  Telnet
  ARP
  BOOTP
  DNS
  HTTP
  TCP/IP
  UDP
  ICMP
  Rtelnet
Windows Real COM Drivers
- Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95
  Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NT
  Windows Embedded CE 5.0 and 6.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Fixed TTY Drivers
- macOS versions: 14, 13, 12, 11, and 10.1x
  SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support
- Windows 11
  Linux Kernel 6.x, 5.x, and 4.x
  macOS 14, 13, 12, and 11
Virtual Machine
- VMWare ESXi (Windows 11/10)
  VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
  Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
Android API
- Android 3.1.x and later
Time Management
- SNTP
MIB
- RFC1213, RFC1317

Connector
- 2 x DB9 male
No. of Ports
- 2
Serial Standards
- RS-232
  RS-422
  RS-485
Baudrate
- Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
Data Bits
- 5, 6, 7, 8
Parity
- None, Even, Odd, Space, Mark
Stop Bits
- 1, 1.5, 2
Flow Control
- RTS/CTS (RS-232 only)
  DTR/DSR (RS-232 only)
  XON/XOFF
Terminator for RS-485
- 120 ohms
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Isolation
- 2 kV
RS-485 Data Direction Control
- ADDC (automatic data direction control)
