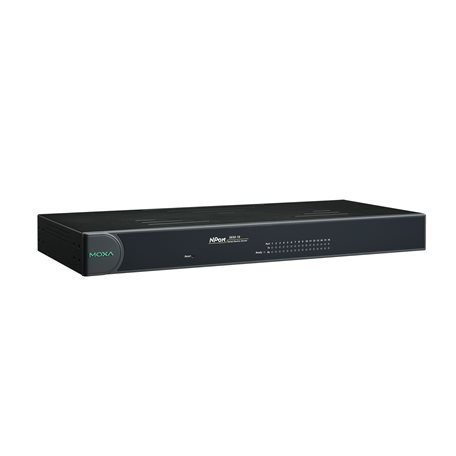

Moxa NPort 5650-16-HV-T

16-port RS-232/422/485 rackmount device server with RJ45 connectors and 88 to 300 VDC power input, -40 to 85°C operating temperature

2.124,64 €

exkl. 19% USt. , (Standard)

Stk

16-port RS-232/422/485 rackmount device server with RJ45 connectors and 88 to 300 VDC power input, -40 to 85°C operating temperature

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Configuration Options
- Telnet Console
  Web Console (HTTP/HTTPS)
  Windows Utility
Management
- ARP
  BOOTP
  DHCP Client
  DNS
  HTTP
  HTTPS
  ICMP
  IPv4
  LLDP
  RFC2217
  Rtelnet
  PPP
  SLIP
  SMTP
  SNMPv1/v2c
  TCP/IP
  Telnet
  UDP
Filter
- IGMP v1/v2c
Windows Real COM Drivers
- Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
  Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
  Windows Embedded CE 6.0/5.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Fixed TTY Drivers
- macOS Versions: 11.x, 10.12 to 10.15
Arm®-based Platform Support
- Linux Kernel 5.x/4.x
Virtual Machine
- VMWare ESXi (Windows 11/10)
  VMware Fusion (Windows on macOS 10.12 to 11.x)
  Parallels Desktop (Windows on macOS 10.12 to 11.x)
Android API
- Android 3.1.x and later
Time Management
- SNTP

Connector
- 8-pin RJ45
No. of Ports
- 16
Serial Standards
- RS-232
  RS-422
  RS-485
Operation Modes
- Disabled
  Ethernet Modem
  Pair Connection
  Real COM
  Reverse Telnet
  RFC2217
  TCP Client
  TCP Server
  UDP
Baudrate
- Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- None
  RTS/CTS (RS-232 only)
  DTR/DSR (RS-232 only)
  XON/XOFF
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
- 120 ohms
RS-485 Data Direction Control
- Automatic Data Direction Control (ADDC)

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
Safety
- UL 62368-1
Medical
- EN 55011: 2007+A2: 2007 Class A (Group 1) compliant
  EN 60601-1-2: 2007 compliant
