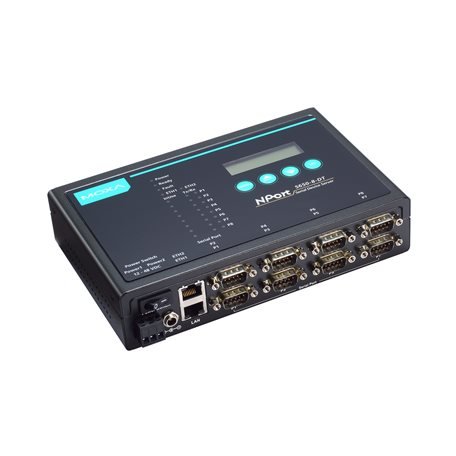

Moxa NPort 5650I-8-DT

8-port RS-232/422/485 desktop device server with DB9 male connectors, 48 VDC power input, and 2 kV optical isolation

1.546,44 €

exkl. 19% USt. , (Standard)

Stk

8-port RS-232/422/485 desktop device server with DB9 male connectors, 48 VDC power input, and 2 kV optical isolation

Configuration Options
- Serial Console
  Telnet Console
  Web Console (HTTP/HTTPS)
  Windows Utility
Management
- ARP
  BOOTP
  DHCP Client
  DNS
  HTTP
  HTTPS
  ICMP
  IPv4
  LLDP
  Rtelnet
  SMTP
  SNMPv1/v2c
  TCP/IP
  Telnet
  UDP
Filter
- IGMP v1/v2
Windows Real COM Drivers
- Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
  Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
  Windows Embedded CE 6.0/5.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Fixed TTY Drivers
- macOS Versions: 11.x, 10.12 to 10.15

  SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support
- Linux Kernel 5.x/4.x
Virtual Machine
- VMWare ESXi (Windows 11/10)
  VMware Fusion (Windows on macOS 10.12 to 11.x)
  Parallels Desktop (Windows on macOS 10.12 to 11.x)
Android API
- Android 3.1.x and later
Time Management
- SNTP
MIB
- RFC1213, RFC1317

Connector
- DB9 male
No. of Ports
- 8
Serial Standards
- RS-232/422/485
Baudrate
- Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- RTS/CTS
  DTR/DSR
  XON/XOFF
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
- 120 ohms
RS-485 Data Direction Control
- Automatic Data Direction Control (ADDC)
Isolation
- -I models: 2 kV
Surge
- 0.5 kV
Console Port
- RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1)

Housing
- Metal
Installation
- Desktop
  DIN-rail mounting (with optional kit)
  Wall mounting (with optional kit)
Dimensions (with ears)
- 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)
Dimensions (without ears)
- 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)
Dimensions (with DIN-rail kit on bottom panel)
- 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)
Weight
- 1,660 g (3.66 lb)
Interactive Interface
- LCD panel display
  Push buttons for configuration
