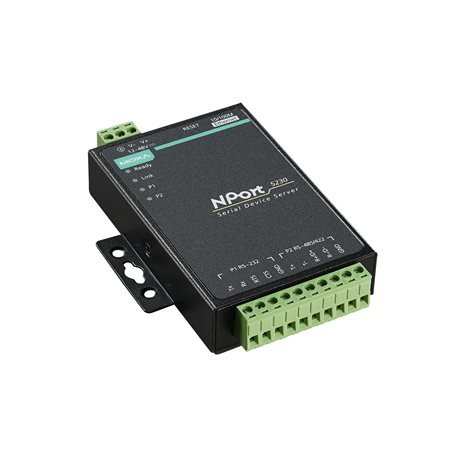

Moxa NPort 5230-T

2-port device server with 1 RS-232 port and 1 RS-422/485 port, -40 to 75°C operating temperature

318,01 €

exkl. 19% USt. , zzgl. (Standard)

Stk

2-port device server with 1 RS-232 port and 1 RS-422/485 port, -40 to 75°C operating temperature

Configuration Options
- Windows Utility
  Serial Console
  Telnet Console
  Web Console (HTTP)
Management
- DHCP Client
  IPv4
  SNTP
  SMTP
  SNMPv1
  DNS
  HTTP
  ARP
  BOOTP
  UDP
  TCP/IP
  Telnet
  ICMP
Windows Real COM Drivers
- Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
  Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
  Windows Embedded CE 6.0 and 5.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Fixed TTY Drivers
- macOS versions: 14, 13, 12, 11, and 10.1x
  SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support
- Windows 11
  Linux Kernel 6.x, 5.x, and 4.x
  macOS 14, 13, 12, and 11
Virtual Machine
- VMWare ESXi (Windows 11/10)
  VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
  Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
Android API
- Android 3.1.x and later
MIB
- RFC1213, RFC1317

Connector
- Terminal block
No. of Ports
- 2
Serial Standards
- RS-232
  RS-422
  RS-485
  Note: The NPort 5230-T supports RS-232 on one port, and RS-422/485 on the other.
Operation Modes
- Disabled
  Ethernet Modem
  Pair Connection
  Real COM
  Reverse Telnet
  TCP Client
  TCP Server
  UDP
Baudrate
- Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- RTS/CTS (RS-232 only)
  DTR/DSR (RS-232 only)
  XON/XOFF
Pull High/Low Resistor for RS-485
- 1 kilo-ohms (fixed value)
RS-485 Data Direction Control
- ADDC (automatic data direction control)
