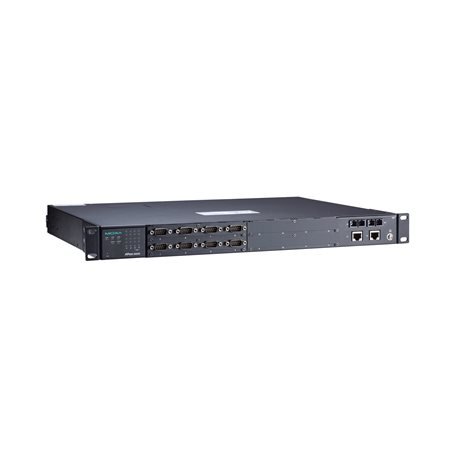

Moxa NPort S9650I-8-2HV-MSC-T

Artikelnummer: NPort S9650I-8-2HV-MSC-T
Kategorie: NPort S9650I Series
Hersteller: Moxa

8-port RS-232/422/485 rugged device server, 2 10/100BaseT(X) ports with IEEE 1588v2 support, 88 to 300 VDC or 85 to 264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet multi-mode SC connector fiber module

3.063,48 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

NPort S9650I-8-2HV-MSC-T

NPort S9650I Series

Input/Output Interface

Alarm Contact Channels
- Resistive load: 1 A @ 24 VDC

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2
100BaseFX Ports (multi-mode SC connector)
- 2
Magnetic Isolation Protection
- 1.5 kV (built-in)

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX

Switch Properties

IGMP Groups
- 256
Max. No. of VLANs
- 64
Priority Queues
- 4
VLAN ID Range
- VID 1 to 4094

Ethernet Software Features

Configuration Options
- Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Command Line Interface (CLI) through Serial/Telnet/SSH
Management
- DHCP Client, DHCP Option 82, HTTP, IEC 61850 MMS, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Web Console
Filter
- GMRP, GVRP, IGMP v1/v2
Windows Real COM Drivers
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
- Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
- SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API
- Android 3.1.x and later
Industrial Protocols
- Modbus TCP Server (Slave), DNP3 TCP Outstation
Time Management
- NTP Server/Client, SNTP, IEEE 1588v2 PTP (hardware-based), IRIG-B
MIB
- Bridge MIB, Device Settings MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RFC1213, RFC1317, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
- RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2
Security
- HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH

Serial Interface

Connector
- DB9 male
No. of Ports
- 8
Serial Standards
- RS-232, RS-422, RS-485
Operation Modes
- Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode, Modbus mode, DNP3 mode, DNP3 Raw Socket mode, Disabled
Baudrate
- 50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- None, RTS/CTS, XON/XOFF
Isolation
- 2 kV
Surge
- 4 kV
RS-485 Data Direction Control
- ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
- 120 ohms
Console Port
- RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND

DIP Switch Configuration

Ethernet Interface
- Turbo Ring, Master, Coupler, Reserved

Modbus TCP

Max. No. of Client Connections
- 32
Max. No. of Server Connections
- 16

DNP3 (Transparent)

Max. No. of Master Connections
- 16
Max. No. of Outstation Connections
- 32

Reliability

Automatic Reboot Trigger
- Built-in WDT
Alert Tools
- Built-in buzzer and RTC (real-time clock)

Power Parameters

No. of Power Inputs
- 2
Reverse Polarity Protection
- Supported
Input Current
- 0.65 A @ 100 VAC, 0.47A @ 100 VDC
Input Voltage
- 110/220 VAC/VDC (100 to 240 VAC, 100 to 250 VDC)

Physical Characteristics

Housing
- Metal
Installation
- 19-inch rack mounting
Dimensions
- 457 x 32 x 330 mm (18 x 1.25 x 12.99 in)
Weight
- Product only: 5.15 kg (11.35 lb)

Environmental Limits

Operating Temperature
- -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Environmental Testing
- IEC 60068-2-2
  IEC 60068-2-14
Power Substation
- IEC 61850-3, IEEE 1613
Safety
- EN 61010-2-201, UL 61010-2-201
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6, IEC 60068-2-64

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 220,944 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
