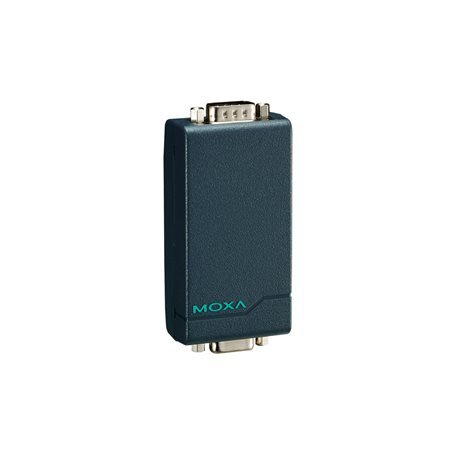

Moxa TCC-82

Artikelnummer: TCC-82
Kategorie: TCC-82
Hersteller: Moxa

Port-powered RS-232 isolator with 4 kV isolation and 15 KV serial ESD protection

75,56 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TCC-82

TCC-82

Port-powered RS-232 isolator with 4 kV isolation and 15 KV serial ESD protection

Serial Interface

Connector
- DB9 male
No. of Ports
- 2
Serial Standards
- RS-232
Baudrate
- 50 bps to 921.6 kbps (supports non-standard baudrates)

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, GND The DTR, DSR, and DCD pins are internally shorted.

Power Parameters

Input Current
- 5 to 12 VDC, 20 mA (max.)
Input Voltage
- 5 to 12 VDC
No. of Power Inputs
- 1
Overload Current Protection
- Supported
Source of Input Power
- Power input jack

Physical Characteristics

Housing
- Plastic
IP Rating
- IP30
Dimensions
- 42 x 80 x 23.6 mm (1.65 x 3.15 x 0.93 in)
Weight
- 60 g (0.13 lb)
Installation
- Desktop

Environmental Limits

Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature (package included)
- -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class B
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-2
  IEC 60068-2-3
Safety
- UL 60950-1
Vibration
- IEC 60068-2-6

MTBF

Time
- 959,780 hrs
Standards
- MIL-HDBK-217F

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
