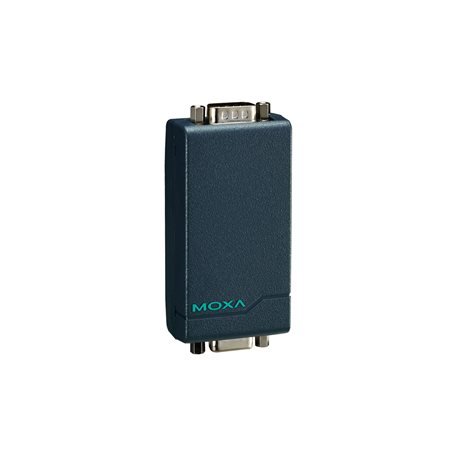

Moxa TCC-80-DB9

Moxa TCC-80-DB9

Artikelnummer: TCC-80-DB9
Kategorie: TCC-80/80I Series
Hersteller: Moxa

Port-powered RS-232 to RS-422/485 converter with 15 kV serial ESD protection and DB9 male connector on the RS-422/485 side

45,28 €

exkl. 19% USt. , zzgl. (Standard)

Bitte beachten Sie den Mindestbestellwert von 50 EUR.

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TCC-80-DB9

TCC-80/80I Series

Port-powered RS-232 to RS-422/485 converter with 15 kV serial ESD protection and DB9 male connector on the RS-422/485 side

Serial Interface

Connector
- DB9 male
No. of Ports
- 2
Serial Standards
- RS-232
  RS-422
  RS-485
RS-485 Data Direction Control
- ADDC (automatic data direction control)
Terminator for RS-485
- N/A, 120 ohms, 120 kilo-ohms
Baudrate
- 300 bps to 115.2 kbps

Serial Signals

RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND
RS-232
- TxD, RxD, GND The DTR, DSR, DCD, CTS, and RTS pins are internally shorted.

Power Parameters

Input Current
- 30 mA @ 5 to 12 VDC
Input Voltage
- 5 to 12 VDC
No. of Power Inputs
- 1
Overload Current Protection
- Supported
Source of Input Power
- Power input jack

Physical Characteristics

Housing
- Plastic top cover, metal bottom plate
IP Rating
- IP30
Dimensions
- 42 x 91 x 23.6 mm (1.65 x 3.58 x 0.93 in)
Weight
- 50 g (0.11 lb)
Installation
- Desktop

Environmental Limits

Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature (package included)
- -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-3
Safety
- UL 60950-1
Vibration
- IEC 60068-2-6

MTBF

Time
- 2,781,161 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
