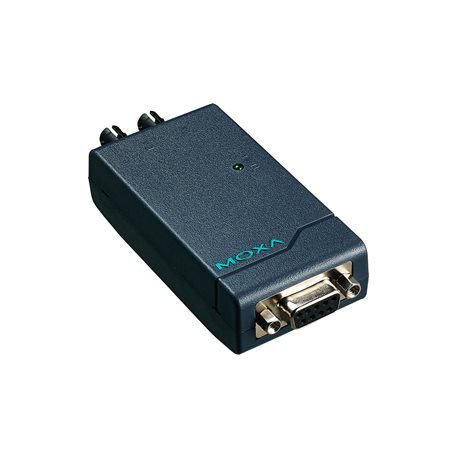

Moxa TCF-90-M-ST

Moxa TCF-90-M-ST

Artikelnummer: TCF-90-M-ST
Kategorie: TCF-90 Series
Hersteller: Moxa

RS-232 to multi-mode ST fiber optic converter, port powered

165,82 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TCF-90-M-ST

TCF-90 Series

RS-232 to multi-mode ST fiber optic converter, port powered

Serial Interface

No. of Ports
- 2
Serial Standards
- RS-232
Flow Control
- ADDC (automatic data direction control) for RS-485
Connector
- Multi-mode ST connector
Optical Fiber

Optical Fiber

Low-Speed Fiber Module		Multi-Mode	Single-Mode
Fiber Cable Requirements		50/125 µm, 800 MHz	G.652
Fiber Cable Requirements		62.5/125 µm, 500 MHz	G.652
Typical Distance		5 km	40 km
Wavelength	Typical (nm)	850	1310
	TX Range (nm)	840 to 860	1290 to 1330
	RX Range (nm)	800 to 900	1100 to 1650
Optical Power	TX Range (dBm)	0 to -5	0 to -5
	RX Range (dBm)	0 to -20	0 to -25
	Link Budget (dB)	15	20
	Dispersion Penalty (dB)	1	1
Note: When using a power meter to measure the fiber TX power, set the baudrate to 9,600 bps and send data (00, ..., 0h) to the serial converter’s serial port.

Baudrate
- 300 bps to 115.2 kbps

Serial Signals

RS-232
- TxD, RxD, GND The DTR, DSR, DCD, CTS, and RTS pins are internally shorted.

Power Parameters

Input Current
- 5 to 12 VDC, 20 mA (max.)
Input Voltage
- 5 to 12 VDC
No. of Power Inputs
- 1
Overload Current Protection
- Supported
Source of Input Power
- Power input jack

Physical Characteristics

Housing
- Plastic
IP Rating
- IP30
Dimensions
- 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
Weight
- 150 g (0.33 lb)
Installation
- Desktop

Environmental Limits

Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature (package included)
- -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV
  IEC 61000-4-6 CS: 3 V
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-14
  IEC 60068-2-2
  IEC 60068-2-3
Safety
- UL 60950-1
Vibration
- IEC 60068-2-6

MTBF

Time
- 2,272,562 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
