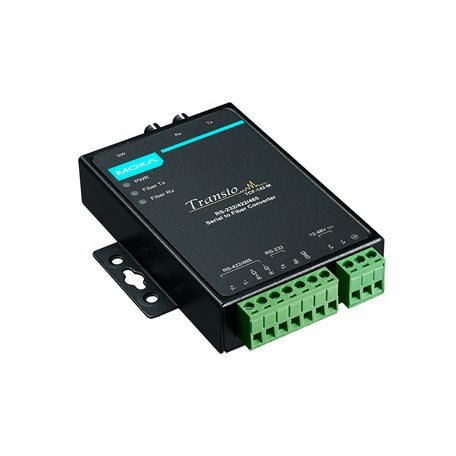

Moxa TCF-142-M-ST-T

Moxa TCF-142-M-ST-T

Artikelnummer: TCF-142-M-ST-T
Kategorie: TCF-142 Series
Hersteller: Moxa

RS-232/422/485 to multi-mode optical fiber media converter with fiber ring support and ST connector, -40 to 75°C operating temperature

284,20 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TCF-142-M-ST-T

TCF-142 Series

RS-232/422/485 to multi-mode optical fiber media converter with fiber ring support and ST connector, -40 to 75°C operating temperature

Serial Interface

No. of Ports
- 2
Serial Standards
- RS-232
  RS-422
  RS-485
Baudrate
- 50 bps to 921.6 kbps (supports non-standard baudrates)
Flow Control
- ADDC (automatic data direction control) for RS-485
Optical Fiber

Optical Fiber

Low-Speed Fiber Module		Multi-Mode	Single-Mode
Fiber Cable Requirements		50/125 µm, 800 MHz	G.652
Fiber Cable Requirements		62.5/125 µm, 500 MHz	G.652
Typical Distance		5 km	40 km
Wavelength	Typical (nm)	850	1310
	TX Range (nm)	840 to 860	1290 to 1330
	RX Range (nm)	800 to 900	1100 to 1650
Optical Power	TX Range (dBm)	0 to -5	0 to -5
	RX Range (dBm)	0 to -20	0 to -25
	Link Budget (dB)	15	20
	Dispersion Penalty (dB)	1	1
Note: When using a power meter to measure the fiber TX power, set the baudrate to 9,600 bps and send data (00, ..., 0h) to the serial converter’s serial port.

Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control
- ADDC (automatic data direction control)
Terminator for RS-485
- N/A, 120 ohms, 120 kilo-ohms
Connector
- Multi-mode ST connector
Latency
- 300 ns

Serial Signals

RS-232
- TxD, RxD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND

Power Parameters

No. of Power Inputs
- 1
Input Current
- 70 to 140 mA @ 12 to 48 VDC
Input Voltage
- 12 to 48 VDC
Overload Current Protection
- Supported
Power Connector
- Terminal block
Power Consumption
- 70 to 140 mA @ 12 to 48 VDC
Reverse Polarity Protection
- Supported

Physical Characteristics

IP Rating
- IP30
Housing
- Metal
Dimensions (with ears)
- 90 x 100 x 22 mm (3.54 x 3.94 x 0.87 in)
Dimensions (without ears)
- 67 x 100 x 22 mm (2.64 x 3.94 x 0.87 in)
Weight
- 320 g (0.71 lb)
Installation
- Wall mounting

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 1 kV
  IEC 61000-4-5 Surge: Power: 1 kV
  IEC 61000-4-6 CS: 3 V
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-2
  IEC 60068-2-3
Safety
- UL 60950-1
Vibration
- IEC 60068-2-6

MTBF

Time
- 780,480 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
