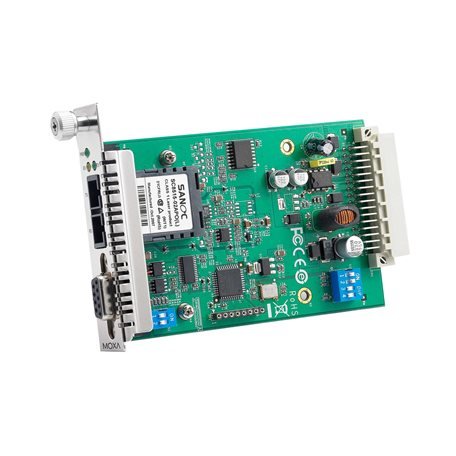

Moxa TCF-142-S-SC-RM

Moxa TCF-142-S-SC-RM

Artikelnummer: TCF-142-S-SC-RM
Kategorie: TCF-142-RM Series
Hersteller: Moxa

RS-232/422/485 to single-mode fiber slide-in module converter, SC connector

449,92 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TCF-142-S-SC-RM

TCF-142-RM Series

RS-232/422/485 to single-mode fiber slide-in module converter, SC connector

Serial Interface

No. of Ports
- 2
Serial Standards
- RS-232, RS-422, RS-485
Baudrate
- 50 bps to 921.6 kbps (supports non-standard baudrates)
Flow Control
- ADDC® (automatic data direction control) for RS-485
Connector
- Single-mode SC connector

Optical Fiber

Low-Speed Fiber Module		Multi-Mode	Single-Mode
Fiber Cable Requirements		50/125 µm, 800 MHz	G.652
Fiber Cable Requirements		62.5/125 µm, 500 MHz	G.652
Typical Distance		5 km	40 km
Wavelength	Typical (nm)	850	1310
	TX Range (nm)	840 to 860	1290 to 1330
	RX Range (nm)	800 to 900	1100 to 1650
Optical Power	TX Range (dBm)	0 to -5	0 to -5
	RX Range (dBm)	0 to -20	0 to -25
	Link Budget (dB)	15	20
	Dispersion Penalty (dB)	1	1
Note: When using a power meter to measure the fiber TX power, set the baudrate to 9,600 bps and send data (00, ..., 0h) to the serial converter’s serial port.

Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control
- ADDC® (automatic data direction control)
Terminator for RS-485
- N/A, 120 ohms, 120 kilo-ohms

Serial Signals

RS-232
- TxD, RxD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND

Power Parameters

Input Current
- 150 mA @ 12 VDC
Overload Current Protection
- Supported
Power Consumption
- 150 mA @ 12 VDC

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 86.8 x 136.5 x 21 mm (3.42 x 5.37 x 0.83 in)
Weight
- 105 g (0.23 lb)

Environmental Limits

Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature (package included)
- -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC)
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-2
  IEC 60068-2-3
Safety
- EN 60950-1, IEC 60950-1
Vibration
- IEC 60068-2-6

MTBF

Time
- 514,926 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
