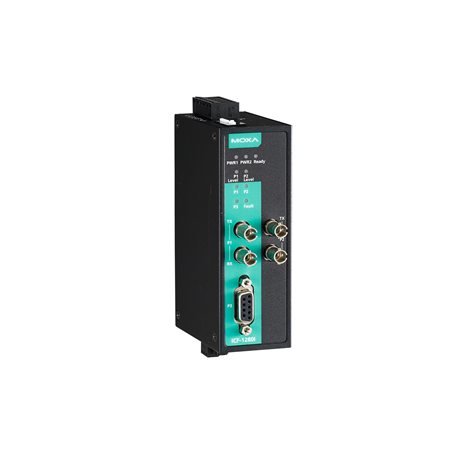

Moxa ICF-1280I-M-ST-T

Moxa ICF-1280I-M-ST-T

Artikelnummer: ICF-1280I-M-ST-T
Kategorie: ICF-1280I Series
Hersteller: Moxa

PROFIBUS to fiber converter, multi-mode, 2 ST connectors, -40 to 75°C operating temperature

938,35 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

ICF-1280I-M-ST-T

ICF-1280I Series

PROFIBUS to fiber converter, multi-mode, 2 ST connectors, -40 to 75°C operating temperature

Serial Interface

Optical Fiber
- ICF-1280I-M-ST Series: 100BaseFX ports (multi-mode ST connector)
  ICF-1280I-S-ST Series: 100BaseFX ports (single-mode ST connector)
Optical Fiber
- Multi-Mode Single-Mode

  Wavelength 820 nm 1310 nm

  Tx Output -14 dBm -7 dBm

  Rx Sensitivity -28 dBm -29 dBm

  Link Budget 14 dBm 21 dBm

  Typical Distance 4 km 45 km

PROFIBUS Interface

Baudrate
- 9600 bps to 12 Mbps
Connector
- DB9 female
Industrial Protocols
- PROFIBUS DP
Isolation
- 2 kV (built-in)
No. of Ports
- 1

Power Parameters

Input Current
- 370 mA @ 12 to 48 VDC
Input Voltage
- 12 to 48 VDC
No. of Power Inputs
- 2
Overload Current Protection
- Supported
Power Connector
- Terminal block (for DC models)
Power Consumption
- 370 mA @ 12 to 48 VDC

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 39 x 115 x 70 mm (1.54 x 4.53 x 2.76 in)
Weight
- 225 g (0.49 lb)
Installation
- DIN-rail mounting

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 0.5 kV
  IEC 61000-4-5 Surge: Power: 0.5 kV
  IEC 61000-4-6 CS: 3 V
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-2
  IEC 60068-2-3
Hazardous Locations
- ATEX
  Class I Division 2
  IECEx
Maritime
- DNV
Safety
- IEC 60950-1
  UL 508
Vibration
- IEC 60068-2-6

MTBF

Time
- 1,870,854 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
