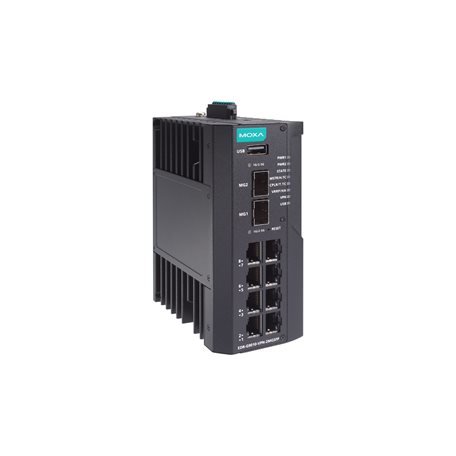

Moxa EDR-G9010-VPN-2MGSFP

Moxa EDR-G9010-VPN-2MGSFP

Artikelnummer: EDR-G9010-VPN-2MGSFP
Kategorie: EDR-G9010 Series
Hersteller: Moxa

8 GbE copper + 2 GbE SFP multiport industrial secure router with firewall/NAT/VPN, 12/24/48 VDC input voltage, -10 to 60°C operating temperature

2.740,08 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

EDR-G9010-VPN-2MGSFP

EDR-G9010 Series

8 GbE copper + 2 GbE SFP multiport industrial secure router with firewall/NAT/VPN, 12/24/48 VDC input voltage, -10 to 60°C operating temperature

Input/Output Interface

Alarm Contact Channels
- Resistive load: 1 A @ 24 VDC
Buttons
- Reset button
Digital Input Channels
- +13 to +30 V for state 1
  -30 to +3 V for state 0
  Max. input current: 8 mA

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)
- 8
1000BaseSFP Slots
- 2
Standards
- IEEE 802.1Q for VLAN Tagging
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  Static Port Trunk
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3x for flow control
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
  IEEE 802.1X for authentication
DMZ
- User-configurable DMZ ports

Ethernet Software Features

Broadcast Forwarding
- IP directed broadcast, broadcast forwarding
Management
- Back Pressure Flow Control
  DDNS
  DHCP Server/Client
  Web Console (HTTP/HTTPS)
  LLDP
  QoS/CoS/ToS
  SNMPv1/v2c/v3
  Telnet
  TFTP
  HTTPS
  SSH
Redundancy Protocols
- RSTP
  STP
  Turbo Ring v2
  Turbo Chain
Routing Throughput
- Max. 350K packets per second / 2 Gbps (based on RFC 2544)
Routing Table
- Max. 4K routing rules
Concurrent Connections
- Max. 400K (based on RFC 3511)
Connections Per Second
- Max. 20K (based on RFC 3511)
Routing Redundancy
- VRRP
Security
- Secure Boot
  IPsec
  L2TP (server)
  RADIUS
  Trust access control
  TACACS+
Time Management
- NTP Server/Client
  SNTP
Unicast Routing
- OSPF
  RIPV1/V2
  Static Route
Multicast Routing
- Static Route
Filter
- IGMP v1/v2/v3

Switch Properties

VLAN ID Range
- VID 1 to 4094
IGMP Groups
- 256
Max. No. of VLANs
- 16

LED Interface

LED Indicators
- PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB

DoS and DDoS Protection

Technology
- ARP-Flood
  FIN Scan
  ICMP Flood
  TCP Sessions Without SYN
  NMAP-ID Scan
  NMAP-Xmas Scan
  Null Scan
  SYN/FIN Scan
  SYN/RST Scan
  SYN-Flood
  Xmas Scan

Firewall

Filter
- DDoS
  Ethernet protocols
  ICMP
  IP address
  MAC address
  Ports
Stateful Inspection
- Router firewall
  Transparent (bridge) firewall
Deep Packet Inspection
- DNP3
  EtherNet/IP
  IEC 60870-5-104
  IEC 61850 MMS
  Modbus TCP
  Modbus UDP
  Omron FINS
  Siemens S7 Comm.
  Additional protocols will be supported through future firmware updates.
Intrusion Prevention System
- Requires an additional license.
Throughput
- Firewall:
  Max. 350K packets per second / 2 Gbps (based on RFC 2544)

  IPS:
  Max. 200K packets per second / 2 Gbps (based on RFC 2544)

IPsec VPN

Authentication
- MD5 and SHA (SHA-256)
  RSA (key size: 1024-bit, 2048-bit)
  X.509 v3 certificate
Concurrent VPN Tunnels
- Max. 250 IPsec VPN tunnels
Encryption
- DES
  3DES
  AES-128
  AES-192
  AES-256
Protocols
- IPsec
  L2TP (server)
  PPTP (client)
Throughput
- Conditions: AES-256, SHA-256
  Max. 100K packets per second / 800 Mbps (based on RFC 2544)

NAT

Features
- 1-to-1
  N-to-1
  NAT loopback
  Port forwarding

Real-Time Firewall / VPN Event Log

Event Type
- Firewall event
  VPN event
Media
- Local storage
  SNMP Trap
  Syslog server

Serial Interface

Console Port
- RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
Connector
- USB Type-C

Power Parameters

Connection
- Removable terminal block
Input Voltage
- 12/24/48 VDC (DNV-certified for 24 VDC)
  Redundant dual inputs
Operating Voltage
- 9.6 to 60 VDC
Input Current
- 1.51 A @ 12 VDC
  0.70 A @ 24 VDC
  0.35 A @ 48 VDC
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Metal
Dimensions
- 58 x 135 x 105 mm (2.28 x 5.31 x 4.13 in)
Weight
- 1030 g (2.27 lb)
Installation
- DIN-rail mounting (DNV-certified)
  Wall mounting (with optional kit)

Environmental Limits

Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- IEC 62368-1
  UL 62368-1
  IEC 60950-1
  UL 60950-1
EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Industrial Cybersecurity
- IEC 62443-4-1
  IEC 62443-4-2
Railway
- EN 50121-4
Traffic Control
- NEMA TS2
Maritime
- IEC 60945
  DNV
Power Substation
- IEEE 1613
  IEC 61850-3 Edition 2.0
Hazardous Locations
- ATEX
  Class I Division 2
Shock
- IEC 60068-2-27
Freefall
- IEC 60068-2-32
Vibration
- IEC 60068-2-6

MTBF

Time
- 1,080,807 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
