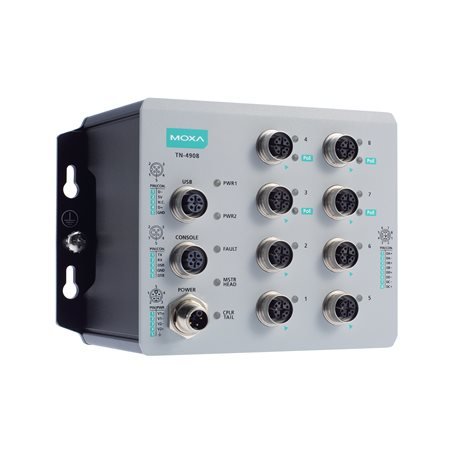

Moxa TN-4908-4GPoE-4GTX-WV-CT-T

Artikelnummer: TN-4908-4GPoE-4GTX-WV-CT-T
Kategorie: TN-4900 Series
Hersteller: Moxa

Industrial secure router with 8 Gigabit Ethernet ports including 4 Gigabit PoE+ ports, total 50 W power budget, 24 to 110 VDC power input, IP40, -40 to 70°C operating temperature, conformal coating

5.566,40 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

TN-4908-4GPoE-4GTX-WV-CT-T

TN-4900 Series

Industrial secure router with 8 Gigabit Ethernet ports including 4 Gigabit PoE+ ports, total 50 W power budget, 24 to 110 VDC power input, IP40, -40 to 70°C operating temperature, conformal coating

Ethernet Interface

PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)
- 4
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)
- 4
Standards
- IEEE 802.1Q for VLAN Tagging
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.3af/at for PoE/PoE+ output
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.1X for authentication
  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.3x for flow control
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.1p for Class of Service
  IEEE 802.3 for 10BaseT

Ethernet Software Features

Configuration Options
- Command Line Interface (CLI) through Serial/Telnet/SSH
  Web Console (HTTP/HTTPS)
  Windows Utility
Filter
- IGMP v1/v2
  Static Multicast
  802.1Q
Management
- Back Pressure Flow Control
  SNMP Inform
  LLDP
  Syslog
  HTTP
  HTTPS
  Flow control
  SMTP
  QoS/CoS/ToS
  Port Mirror
  SNMP Trap
  SNMPv1/v2c/v3
  IPv4
  Telnet
  DHCP Server
  SFTP
  SCP
  TFTP
  RARP
  Account Management
  DHCP Client (Option 1/3/12/50/51/53/54/55/57/61/66/67/124/255)
  DHCP Server (Option 1/3/6/12/15/28/42/50/55)
  DHCP Relay Agent
Redundancy Protocols
- RSTP
  Static Port Trunk
  Turbo Ring v2
  STP
Routing Redundancy
- VRRP
Security
- Secure Boot
  IPsec
  L2TP (server)
  RADIUS
  Trust access control
Time Management
- SNTP
  NTP Server/Client
Unicast Routing
- RIPV1/V2
  OSPF
  Static Route
Railway
- TRDP
Multicast Routing
- Static Route
Routing Throughput
- 450,000 FPS (pure routing)

DoS and DDoS Protection

Technology
- NMAP-ID Scan
  ARP-Flood
  SYN/FIN Scan
  Null Scan
  ICMP-Death
  FIN Scan
  SYN-Flood
  NEWWithout-SYN Scan
  Xmas Scan
  NMAP-Xmas Scan
  SYN/RST Scan

Firewall

Filter
- ICMP
  MAC address
  Ethernet protocols
  Ports
  IP address
  DDoS
Quick Automation Profiles
- DNP
  DPI
  EtherCAT
  EtherNet/IP
  FOUNDATION Fieldbus
  FTP
  HTTP
  IEC 60870-104
  IPsec
  L2TP
  LonWorks
  Modbus TCP
  PPTP
  PROFINET
  RADIUS
  SSH
  Telnet
  VPN
Stateful Inspection
- Router firewall
  Transparent (bridge) firewall
Throughput
- Max. 350,000 packets per second

IPsec VPN

Authentication
- MD5 and SHA (SHA-256)
  RSA (key size: 1024-bit, 2048-bit)
  X.509 v3 certificate
Encryption
- 3DES
  DES
  AES-128
  AES-192
  AES-256
Concurrent VPN Tunnels
- Max. 250 IPsec VPN tunnels

Switch Properties

IGMP Groups
- 1024
MAC Table Size
- 16 K
Max. No. of VLANs
- 32
VLAN ID Range
- VID 1 to 4094

LED Interface

LED Indicators
- STATE, PWR1, PWR2, FAULT, 10/100/1000M, PoE

NAT

Features
- 1-to-1
  Port forwarding
  N-to-1

Serial Interface

Console Port
- RS-232 (M12 B-coded 5-pin female connector)

USB Interface

M12 Connector
- M12 A-coded 5-pin female (for ABC-02 USB storage)

Power Parameters

Input Current
- 3.6 A @ 24 V
Input Voltage
- 24/36/48/72/96/110 VDC
  Redundant dual inputs
  No. of power inputs: 2
Operating Voltage
- 16.8 to 137.5 VDC
Power Connector
- M12 K-coded 5-pin male connector
Total PoE Power Budget
- 50 W
Overload Current Protection
- Supported
Reverse Polarity Protection
- Supported

Physical Characteristics

Housing
- Metal
Dimensions
- 160 x 115 x 100 mm (6.30 x 4.53 x 3.94 in)
IP Rating
- IP40
Weight
- 1640 g (3.62 lb)
Installation
- Wall mounting
Protection
- PCB conformal coating

Environmental Limits

Operating Temperature
- -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- 3,000 m

Standards and Certifications

EMC
- EN 55032, EN 55035
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Radio Frequency
- FCC
Railway
- EN 50121-4
  EN 50155
  IEC 60068-2-1, EN 50155
  IEC 60068-2-14, EN 50155
  IEC 60068-2-2, EN 50155
  IEC 60068-2-30, EN 50155
  IEC 60068-2-78
  IEC 60571
Railway Fire Protection
- EN 45545-2
Safety
- IEC 62368, UL 62368
Salt Spray Test
- EN 50155
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155
Package Drop Test
- ISTA 1A
Package Vibration Test
- ISTA 1A

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 644,898 hrs
Standards
- Telcordia SR332 Issue 2

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
