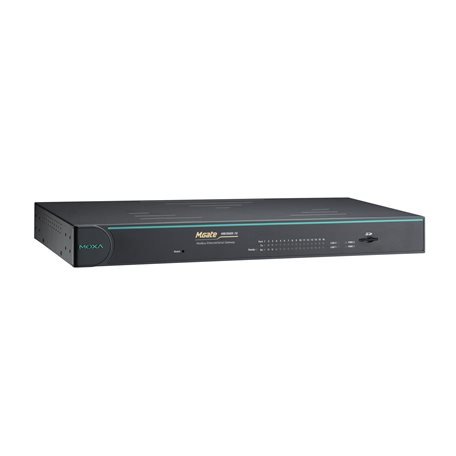

Moxa MGate MB3660I-16-2AC

Moxa MGate MB3660I-16-2AC

Artikelnummer: MGate MB3660I-16-2AC
Kategorie: MGate MB3660 Series
Hersteller: Moxa

Modbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature, 2 kV isolation

2.741,06 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

MGate MB3660I-16-2AC

MGate MB3660 Series

Modbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature, 2 kV isolation

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2 IP addresses
  Auto MDI/MDI-X connection

Ethernet Software Features

Industrial Protocols
- Modbus TCP Client (Master)
  Modbus TCP Server (Slave)
Configuration Options
- Web Console (HTTP/HTTPS)
  Device Search Utility (DSU)
  MCC Tool
  Telnet Console
Management
- ARP
  DHCP Client
  DNS
  HTTP
  HTTPS
  SMTP
  SNMP Trap
  SNMPv1/v2c/v3
  TCP/IP
  Telnet
  UDP
  NTP Client
  RADIUS
MIB
- RFC1213, RFC1317
Time Management
- NTP Client

Security Functions

Authentication
- Local database
  RADIUS
Encryption
- HTTPS
  AES-128
  AES-256
  SHA-256
Security Protocols
- SNMPv3
  HTTPS (TLS 1.2)

Serial Interface

No. of Ports
- 16
Connector
- DB9 male
Serial Standards
- RS-232/422/485 (software-selectable)
Baudrate
- 50 bps to 921.6 kbps
Data Bits
- 7, 8
Stop Bits
- 1, 2
Parity
- None
  Even
  Odd
  Space
  Mark
Flow Control
- RTS/CTS
  DTR/DSR
  RTS Toggle (RS-232 only)
Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Isolation
- 2 kV (I models)
RS-485 Data Direction Control
- ADDC (automatic data direction control)
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
- 120 ohms

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial Protocols
- Modbus RTU/ASCII Master
  Modbus RTU/ASCII Slave
Configuration Options
- Serial Console

Modbus RTU/ASCII

Mode
- Master, Slave
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands
- 256 per serial port
Memory Size
- 65535 bytes

Modbus TCP

Mode
- Client (Master), Server (Slave)
Max. No. of Client Connections
- 256
Max. No. of Server Connections
- 128
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands
- 256
Memory Size
- 65535 bytes

Modbus (Transparent)

Max. No. of Client Connections
- 256
Max. No. of Server Connections
- 128

Power Parameters

Input Voltage
- Redundant dual inputs
  100 to 240 VAC (47 to 63 Hz)
No. of Power Inputs
- 2
Power Connector
- Terminal block (for DC models)
Power Consumption
- 310 mA @ 110 VAC

Relays

Contact Current Rating
- Resistive load: 2 A @ 30 VDC

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions (with ears)
- 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
Dimensions (without ears)
- 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
Weight
- 2820 g (6.22 lb)

Environmental Limits

Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
Safety
- IEC 62368-1, UL 62368-1, IEC 60950-1, UL 60950-1
Freefall
- IEC 60068-2-31
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
  IEC 60068-2-64

MTBF

Time
- 256,208 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
