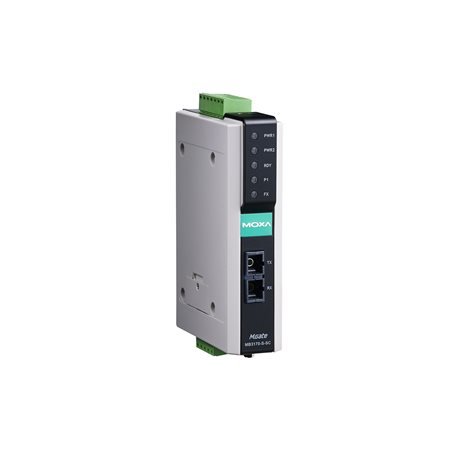

Moxa MGate MB3170-M-SC-T

Moxa MGate MB3170-M-SC-T

Artikelnummer: MGate MB3170-M-SC-T
Kategorie: MGate MB3170/MB3270 Series
Hersteller: Moxa

1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors), -40 to 75°C operating temperature

597,31 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

MGate MB3170-M-SC-T

MGate MB3170/MB3270 Series

1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors), -40 to 75°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2 (1 IP, Ethernet cascade)
  Auto MDI/MDI-X connection
Magnetic Isolation Protection
- 1.5 kV (built-in)

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Ethernet Software Features

Industrial Protocols
- Modbus TCP Client (Master)
  Modbus TCP Server (Slave)
Configuration Options
- Web Console (HTTP/HTTPS)
  Device Search Utility (DSU)
  MGate Manager
  MCC Tool
  Telnet Console
Management
- ARP
  DHCP Client
  DNS
  HTTP
  HTTPS
  SMTP
  SNMP Trap
  SNMPv1/v2c/v3
  TCP/IP
  Telnet
  UDP
  NTP Client
MIB
- RFC1213, RFC1317
Time Management
- NTP Client

Security Functions

Authentication
- Local database
Encryption
- HTTPS
  AES-128
  AES-256
  SHA-256
Security Protocols
- SNMPv3
  HTTPS (TLS 1.2)

Serial Interface

No. of Ports
- 1
Connector
- DB9 male for RS-232 and terminal block for RS-422/485
Serial Standards
- RS-232/422/485 (software selectable)
Baudrate
- 50 bps to 921.6 kbps
Data Bits
- 7, 8
Parity
- None
  Even
  Odd
  Space
  Mark
Stop Bits
- 1, 2
Flow Control
- DTR/DSR
  RTS Toggle (RS-232 only)
  RTS/CTS
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
- 120 ohms
RS-485 Data Direction Control
- ADDC (automatic data direction control)

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial Protocols
- Modbus RTU/ASCII Master
  Modbus RTU/ASCII Slave

Modbus (Transparent)

Max. No. of Client Connections
- 32
Max. No. of Server Connections
- 32

Power Parameters

Input Voltage
- 12 to 48 VDC
Input Current
- 510 mA @ 12 VDC
Power Connector
- 7-pin terminal block

Relays

Contact Current Rating
- Resistive load: 1 A @ 30 VDC

Physical Characteristics

Housing
- Plastic
IP Rating
- IP30
Dimensions (with ears)
- 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)
Dimensions (without ears)
- 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
Weight
- 360 g (0.79 lb)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Hazardous Locations
- ATEX
  Class I Division 2
  IECEx
Maritime
- DNV
Freefall
- IEC 60068-2-32
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
  IEC 60068-2-64
Safety
- UL 60950-1
  IEC 60950-1
  EN 62368-1
  UL 508

MTBF

Time
- 1,580,051 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
