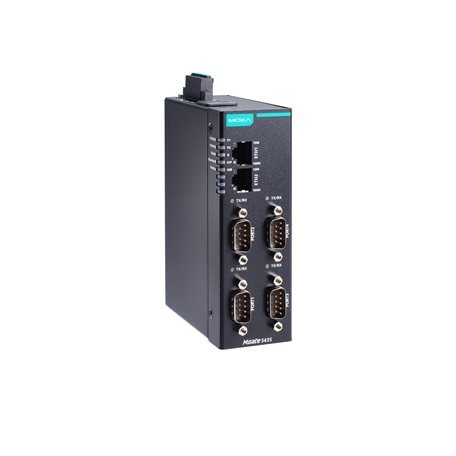

Moxa MGate 5435

Moxa MGate 5435

Artikelnummer: MGate 5435
Kategorie: MGate 5135/5435 Series
Hersteller: Moxa

4-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperature

1.122,10 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

MGate 5435

MGate 5135/5435 Series

4-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2
  Auto MDI/MDI-X connection
Magnetic Isolation Protection
- 1.5 kV (built-in)

Ethernet Software Features

Industrial Protocols
- Modbus TCP Client
  EtherNet/IP Adapter
Configuration Options
- Web Console (HTTPS)
  Device Search Utility (DSU)
Management
- ARP
  DHCP Client
  DNS
  HTTP
  HTTPS
  SMTP
  SNMP Trap
  SNMPv1/v2c/v3
  TCP/IP
  UDP
MIB
- RFC1213, RFC1317
Time Management
- NTP Client

Security Functions

Authentication
- Local database
Encryption
- HTTPS
  AES-128
  AES-256
  SHA-256
Security Protocols
- SNMPv3
  SNMPv2c Trap
  HTTPS (TLS 1.3)

Serial Interface

No. of Ports
- 4
Connector
- DB9 male
Serial Standards
- RS-232/422/485
Baudrate
- 300 bps to 921.6 kbps
Data Bits
- 7, 8
Parity
- None
  Even
  Odd
  Space
  Mark
Stop Bits
- 1, 2
Flow Control
- RTS Toggle (RS-232 only)
  RTS/CTS
RS-485 Data Direction Control
- Automatic Data Direction Control (ADDC)
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
  software configurable
Terminator for RS-485
- 120 ohms
  software configurable
Isolation
- 2 kV (built-in)

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial Protocols
- Modbus RTU/ASCII Client

Modbus RTU/ASCII

Mode
- Client
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Server Connections
- 31
Max. No. of Commands
- 128 per serial port

Modbus TCP

Mode
- Client
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Server Connections
- 32
Max. No. of Commands
- 128
Total Output Data Size
- 4000 bytes
Total Input Data Size
- 4000 bytes

EtherNet/IP

Mode
- Adapter
CIP Objects Supported
- Identity
  Message Router
  Assembly
  Connection Manager
  TCP/IP interface
  Ethernet link
  Port
Max. No. of Scanner Connections
- 8 (read/write)
Input Data Size
- 496 bytes/connection (total: 3968 bytes) bytes
Output Data Size
- 496 bytes/connection (total: 3968 bytes) bytes

Memory

microSD Slot
- Up to 32 GB (SD 2.0 compatible)

Power Parameters

Input Voltage
- 12 to 48 VDC
Input Current
- 455 mA (max)
Power Connector
- Spring-type Euroblock terminal

Relays

Contact Current Rating
- Resistive load: 2 A @ 30 VDC

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 42 x 90 x 130 mm (1.65 x 3.54 x 5.1 in)
Weight
- 403 g (0.89 lb)

Environmental Limits

Operating Temperature
- -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- EN 61010-2-201
  UL 61010-2-201
EMC
- EN 61000-6-2/-6-4
EMI
- FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF
Freefall
- IEC 60068-2-31
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
  IEC 60068-2-64

MTBF

Time
- 689,989 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
