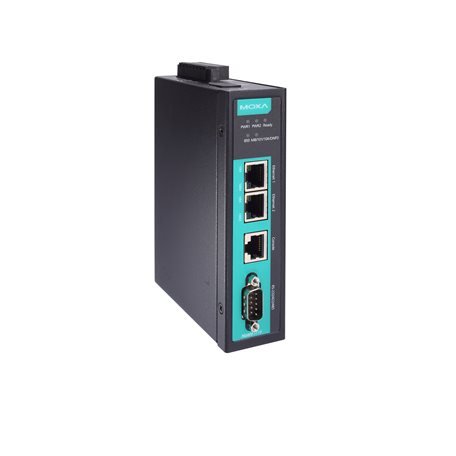

Moxa MGate 5119-T

Artikelnummer: MGate 5119-T
Kategorie: MGate 5119 Series
Hersteller: Moxa

1-port DNP3/IEC 101/IEC 104/Modbus-to-IEC 61850 gateways, -40 to 75°C operating temperature

1.122,10 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

MGate 5119-T

MGate 5119 Series

1-port DNP3/IEC 101/IEC 104/Modbus-to-IEC 61850 gateways, -40 to 75°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2
  Auto MDI/MDI-X connection
Magnetic Isolation Protection
- 1.5 kV (built-in)

Ethernet Software Features

Industrial Protocols
- Modbus TCP Client (Master)
  IEC 60870-5-104 Client
  IEC 61850 MMS Server
  DNP3 TCP Master
Configuration Options
- Web Console (HTTP/HTTPS)
  Device Search Utility (DSU)
Management
- ARP
  DHCP Client
  DNS
  HTTP
  HTTPS
  SMTP
  SNMP Trap
  SNMPv1/v2c/v3
  TCP/IP
  Telnet
  SSH
  UDP
  NTP Client
MIB
- RFC1213, RFC1317
Time Management
- NTP Client

Security Functions

Authentication
- Local database
Encryption
- HTTPS
  AES-128
  AES-256
  SHA-256
Security Protocols
- SNMPv3
  SNMPv2c Trap
  HTTPS (TLS 1.3)

Serial Interface

Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
No. of Ports
- 1
Connector
- DB9 male
Serial Standards
- RS-232/422/485
Baudrate
- 50 bps to 921.6 kbps
Data Bits
- 7, 8
Parity
- Even
  Mark
  None
  Odd
  Space
Stop Bits
- 1, 2
Flow Control
- RTS Toggle (RS-232 only)
  RTS/CTS
RS-485 Data Direction Control
- Automatic Data Direction Control (ADDC)
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
- 120 ohms
Isolation
- 2 kV (built-in)

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial Protocols
- Modbus RTU/ASCII Master
  IEC 60870-5-101 Master (Balanced/Unbalanced)
  DNP3 Serial Master

Modbus RTU/ASCII

Mode
- Master
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands
- 128

Modbus TCP

Mode
- Client (Master)
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Server Connections
- 32
Max. No. of Commands
- 128

IEC 60870-5-104

Mode
- Client
Objects Supported
- Single point
  Double point
  Step position
  Bit string of 32 bit
  Measured value (normalized)
  Measured value (scaled)
  Measured value (floating)
  Integrated totals
Max. No. of Server Connections
- 32
Max. No. of Information Objects
- 1200 points

IEC 60870-5-101

Mode
- Master (Balanced/Unbalanced)
Objects Supported
- Single point
  Double point
  Step position
  Bit string of 32 bit
  Measured value (normalized)
  Measured value (scaled)
  Measured value (floating)
  Integrated totals
Max. No. of Slave Connections
- 1 (Balanced), 31 (Unbalanced)
Max. No. of Information Objects
- 1200 points

DNP3 Serial

Mode
- Master
Objects Supported
- Binary inputs
  Analog inputs
  Counters
  Frozen counters
  Binary outputs
  Analog outputs
Max. No. of Outstation Connections
- 16
Max. No. of Objects
- 1200 points

DNP3 TCP

Mode
- Master
Objects Supported
- Binary inputs
  Analog inputs
  Counters
  Frozen counters
  Binary outputs
  Analog outputs
Max. No. of Outstation Connections
- 16
Max. No. of Objects
- 1200 points

IEC 61850

Mode
- MMS Server
Max. No. of Client Connections
- 16
Max. No. of Datasets
- 99
Max. No. of Reports
- 99
Max. No. of Data Objects
- 1200 points

Memory

No. of Data Points Supported
- 1,200 points
microSD Slot
- Up to 32 GB (SD 2.0 compatible)

Power Parameters

Input Voltage
- 12 to 48 VDC
Input Current
- 455 mA @ 12 VDC
Power Connector
- Screw-fastened Euroblock terminal

Relays

Contact Current Rating
- Resistive load: 2 A @ 30 VDC

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 36 x 120 x 150 mm (1.42 x 4.72 x 5.91 in)
Weight
- 517 g (1.14 lb)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 10 V/m
  IEC 61000-4-8 PFMF: 100 A/m
Safety
- IEC 60950-1
  IEC 62368-1
  UL 60950-1
  UL 62368-1
Freefall
- IEC 60068-2-32
Shock
- IEC 60068-2-27
  IEC 61850-3 Edition 2.0
Power Substation
- IEEE 1613
  IEC 61850-3
Vibration
- IEC 60068-2-6
  IEC 60068-2-64
  IEC 61850-3 Edition 2.0

MTBF

Time
- 1,180,203 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
