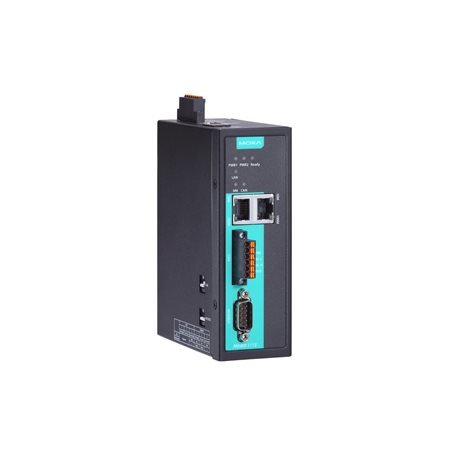

Moxa MGate 5118-T

Artikelnummer: MGate 5118-T
Kategorie: MGate 5118 Series
Hersteller: Moxa

1-port J1939 to Modbus/PROFINET/EtherNet/IP gateway, -40 to 75°C operating temperature

777,63 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

MGate 5118-T

MGate 5118 Series

1-port J1939 to Modbus/PROFINET/EtherNet/IP gateway, -40 to 75°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2
  Auto MDI/MDI-X connection
Magnetic Isolation Protection
- 1.5 kV (built-in)

Ethernet Software Features

Industrial Protocols
- Modbus TCP Client (Master), Modbus TCP Server (Slave), PROFINET IO Device, EtherNet/IP Scanner, EtherNet/IP Adapter
Configuration Options
- Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console
Management
- ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MIB
- RFC1213, RFC1317
Time Management
- NTP Client

Security Functions

Authentication
- Local database
Encryption
- HTTPS, AES-128, AES-256, SHA-256
Security Protocols
- SNMPv3
  SNMPv2c Trap
  HTTPS (TLS 1.3)

Serial Interface

Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
No. of Ports
- 1
Connector
- DB9 male
Serial Standards
- RS-232/422/485
Baudrate
- 50 bps to 921.6 kbps
Data Bits
- 7, 8
Parity
- None, Even, Odd, Space, Mark
Stop Bits
- 1, 2
Flow Control
- RTS Toggle (RS-232 only), RTS/CTS
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
- 120 ohms
Isolation
- 2 kV

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Configuration Options
- Serial Console
Industrial Protocols
- J1939, Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave

Modbus RTU/ASCII

Mode
- Master, Slave
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands
- 128

Modbus TCP

Mode
- Client (Master), Server (Slave)
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Client Connections
- 16
Max. No. of Server Connections
- 32
Max. No. of Commands
- 128

PROFINET

Mode
- IO Device
Max. No. of IO Controller Connections
- 1 (for read/write)
Input Data Size
- 512 bytes
Output Data Size
- 512 bytes

EtherNet/IP

Mode
- Scanner, Adapter
CIP Objects Supported
- Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port
Max. No. of Scanner Connections
- 1 (for read-only), 1 (for read/write)
Max. No. of Adapter Connections
- 4
Input Data Size
- 496 bytes
Output Data Size
- 496 bytes

CAN Interface

Industrial Protocols
- J1939
No. of Ports
- 1
Connector
- Spring-type Euroblock terminal
Baudrate
- 250 Kbps, 500 Kbps, 1 Mbps
Terminator
- 120 ohms
Isolation
- 2 kV (built-in)

J1939

Max. No. of Commands
- 256
Input Data Size
- 2048 bytes
Output Data Size
- 2048 bytes

Memory

microSD Slot
- Up to 32 GB (SD 2.0 compatible)

Power Parameters

Input Voltage
- 12 to 48 VDC
Input Current
- 416 mA @ 12 VDC
Power Connector
- Spring-type Euroblock terminal

Relays

Contact Current Rating
- Resistive load: 2 A @ 30 VDC

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)
Weight
- 589 g (1.30 lb)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- EN 62368-1, UL 61010-2-201
EMC
- EN 61000-6-2/-6-4
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF
Hazardous Locations
- ATEX, Class I Division 2, IECEx
Freefall
- IEC 60068-2-32
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6, IEC 60068-2-64

MTBF

Time
- 727,873 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
