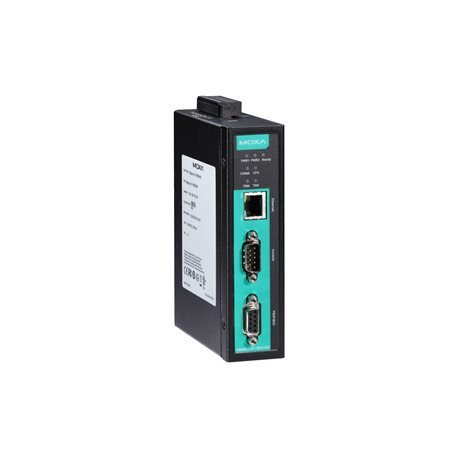

Moxa MGate 5101-PBM-MN-T

Moxa MGate 5101-PBM-MN-T

Artikelnummer: MGate 5101-PBM-MN-T
Kategorie: MGate 5101-PBM-MN Series
Hersteller: Moxa

1-port PROFIBUS master-to-Modbus TCP gateway, 12 to 48 VDC, -40 to 75°C operating temperature

1.347,50 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

MGate 5101-PBM-MN-T

MGate 5101-PBM-MN Series

1-port PROFIBUS master-to-Modbus TCP gateway, 12 to 48 VDC, -40 to 75°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 1 (auto MDI/MDI-X connection)
Magnetic Isolation Protection
- 1.5 kV (built-in)

Ethernet Software Features

Industrial Protocols
- Modbus TCP Client (Master)
  Modbus TCP Server (Slave)
Configuration Options
- Web Console (HTTP/HTTPS)
  Device Search Utility (DSU)
  MGate Manager
  Telnet Console
Management
- ARP
  DHCP Client
  DNS
  HTTP
  HTTPS
  SMTP
  SNMP Trap
  SNMPv1/v2c/v3
  TCP/IP
  Telnet
  SSH
  UDP
  NTP Client
MIB
- RFC1213, RFC1317
Time Management
- NTP Client

Security Functions

Authentication
- Local database
Encryption
- HTTPS
  AES-128
  AES-256
  SHA-256
Security Protocols
- SNMPv3
  SNMPv2c Trap
  HTTPS (TLS 1.3)

Serial Interface

Console Port
- RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND), DB9 male (115200, n, 8, 1)

Serial Software Features

Configuration Options
- Serial Console
Industrial Protocols
- PROFIBUS DP-V1 Master

Modbus TCP

Mode
- Client (Master), Server (Slave)
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Client Connections
- 16
Max. No. of Server Connections
- 32
Max. No. of Commands
- 100
Input Data Size
- 1536 bytes
Output Data Size
- 1536 bytes

PROFIBUS Interface

Industrial Protocols
- PROFIBUS DP
No. of Ports
- 1
Connector
- DB9 female
Signals
- PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V
Baudrate
- 9600 bps to 12 Mbps
Isolation
- 2 kV (built-in)

PROFIBUS

Mode
- DP-V1 Master
Input Data Size
- 1536 bytes
Output Data Size
- 1536 bytes

Power Parameters

Input Voltage
- 12 to 48 VDC
Input Current
- 365 mA @ 12 VDC
Power Connector
- Screw-fastened Euroblock terminal

Relays

Contact Current Rating
- Resistive load: 2 A @ 30 VDC

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Weight
- 500 g (1.10 lb)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF
Safety
- IEC 60950-1
  UL 60950-1
  EN 62368-1
Hazardous Locations
- ATEX
  Class I Division 2
  IECEx
Freefall
- IEC 60068-2-32
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
  IEC 60068-2-64

MTBF

Time
- 1,082,881 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
