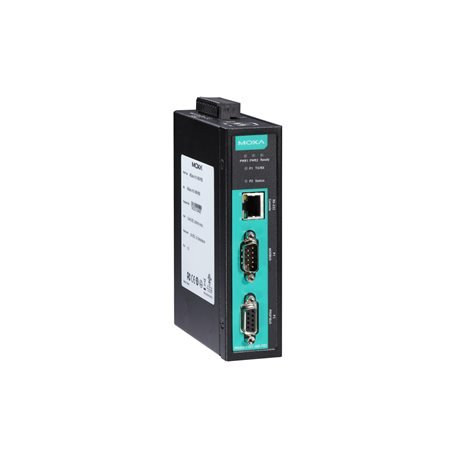

Moxa MGate 4101-MB-PBS

Moxa MGate 4101-MB-PBS

Artikelnummer: MGate 4101-MB-PBS
Kategorie: MGate 4101-MB-PBS Series
Hersteller: Moxa

1-port Modbus-to-PROFIBUS Slave gateway, 12 to 48 VDC, 0 to 60°C operating temperature

650,72 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

MGate 4101-MB-PBS

MGate 4101-MB-PBS Series

1-port Modbus-to-PROFIBUS Slave gateway, 12 to 48 VDC, 0 to 60°C operating temperature

Serial Interface

Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
No. of Ports
- 1
Connector
- DB9 male
Serial Standards
- RS-232/422/485
Baudrate
- 50 bps to 921.6 kbps
Data Bits
- 7, 8
Parity
- None, Even, Odd, Space, Mark
Stop Bits
- 1, 2
Flow Control
- DTR/DSR
  RTS/CTS
RS-485 Data Direction Control
- Automatic Data Direction Control (ADDC)
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
- 120 ohms
Isolation
- 2 kV (I models)

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Configuration Options
- MGate Manager
Industrial Protocols
- Modbus RTU/ASCII Master
  Modbus RTU/ASCII Slave
  PROFIBUS DP-V0 Slave

Modbus RTU/ASCII

Mode
- Master, Slave
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands
- 100
Input Data Size
- 7744 bytes
Output Data Size
- 7744 bytes

PROFIBUS Interface

Industrial Protocols
- PROFIBUS DP
No. of Ports
- 1
Connector
- DB9 female
Baudrate
- 9600 bps to 12 Mbps
Isolation
- 2 kV (built-in)
Signals
- PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V

PROFIBUS

Rotary Switch
- PROFIBUS addresses 0-99 (addresses 100-125 supported through software configuration)
Mode
- DP-V0 Slave
Max. No. of Master Connections
- 1
Max. No. of PROFIBUS I/O Modules
- 24 per page
Max. No. of PROFIBUS Pages
- 32
Input Data Size
- 7744 bytes
Output Data Size
- 7744 bytes

Power Parameters

Input Voltage
- 12 to 48 VDC
Input Current
- 275 mA @ 12 VDC
Power Connector
- Screw-fastened Euroblock terminal

Relays

Contact Current Rating
- Resistive load: 1 A @ 24 VDC

Physical Characteristics

Housing
- Metal
Dimensions
- 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Weight
- 500 g (1.10 lb)
IP Rating
- IP30
  Note: It is recommended to attach the M3x3mm Nylok screws at the rear side

Environmental Limits

Operating Temperature
- 0 to 60°C (32 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF
Safety
- IEC 60950-1
  UL 60950-1
  IEC 62368-1
  UL 62368-1
Hazardous Locations
- ATEX
  Class I Division 2
  IECEx
Freefall
- IEC 60068-2-32
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
  IEC 60068-2-64

MTBF

Time
- MGate 4101-MB-PBS models: 1,537,948 hrs
  MGate 4101I-MB-PBS models: 1,315,666 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
