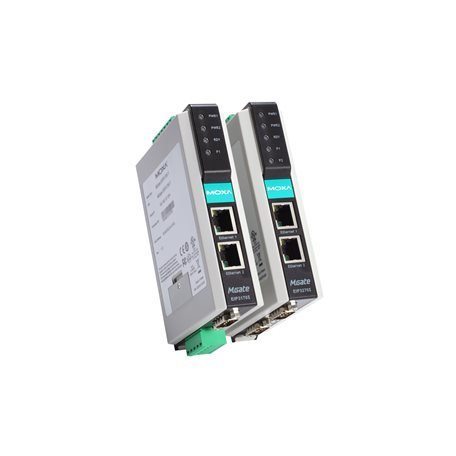

Moxa MGate EIP3270-T

Moxa MGate EIP3270-T

Artikelnummer: MGate EIP3270-T
Kategorie: MGate EIP3170/EIP3270 Series
Hersteller: Moxa

2-port EtherNet/IP-to-DF1 gateway, -40 to 75°C operating temperature

765,87 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

MGate EIP3270-T

MGate EIP3170/EIP3270 Series

2-port EtherNet/IP-to-DF1 gateway, -40 to 75°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2
  Auto MDI/MDI-X connection

Ethernet Software Features

Industrial Protocols
- Ethernet/IP (PCCC)
Configuration Options
- MGate Manager
  Telnet Console
Management
- ARP
  DHCP Client
  SNMPv1
  TCP/IP
  Telnet
  UDP
MIB
- RFC1213, RFC1317

Serial Interface

No. of Ports
- 2
Connector
- 2 x DB9 male
Serial Standards
- RS-232
  RS-422
Baudrate
- 1200 bps to 921.6 kbps
Data Bits
- 8
Parity
- None
  Even
  Odd
Stop Bits
- 1, 2
Flow Control
- RTS/CTS
  DTR/DSR (RS-232 only)

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial Protocols
- DF1

DF1 (Transparent)

Mode
- Full duplex
Max. No. of Client Connections
- 8

Power Parameters

Input Voltage
- 12 to 48 VDC
Input Current
- 435 mA @ 12 VDC

Relays

Contact Current Rating
- Resistive load: 1 A @ 30 VDC

Physical Characteristics

Housing
- Plastic top cover, metal bottom plate
IP Rating
- IP30
Dimensions (with ears)
- 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)
Dimensions (without ears)
- 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
Weight
- 380 g (0.84 lb)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 4 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
  IEC 61000-4-11
Safety
- IEC 60950-1
  UL 60950-1
  EN 62368-1
  UL 508
Hazardous Locations
- ATEX
  Class I Division 2
  IECEx If you need an IECEx certificate for this product, please contact a Moxa sales representative.
Freefall
- IEC 60068-2-32
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
  IEC 60068-2-64

MTBF

Time
- 1,204,573 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
