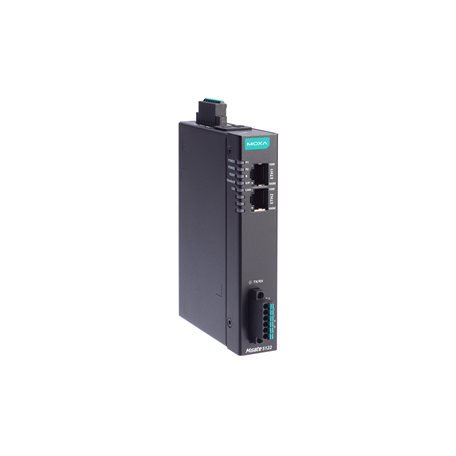

Moxa MGate 5122

Moxa MGate 5122

Artikelnummer: MGate 5122
Kategorie: MGate 5122 Series
Hersteller: Moxa

1-port CANopen/J1939-to-EtherNet/IP gateways, -10 to 60°C operating temperature

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.

Beschreibung

MGate 5122

MGate 5122 Series

1-port CANopen/J1939-to-EtherNet/IP gateways, -10 to 60°C operating temperature

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)
- 2
  Auto MDI/MDI-X connection
Magnetic Isolation Protection
- 1.5 kV (built-in)

Ethernet Software Features

Industrial Protocols
- EtherNet/IP Adapter
Configuration Options
- Web Console (HTTPS)
  Device Search Utility (DSU)
Management
- ARP
  DHCP Client
  DNS
  HTTP
  HTTPS
  SMTP
  SNMP Trap
  SNMPv1/v2c/v3
  TCP/IP
  UDP
MIB
- RFC1213
Time Management
- NTP Client

Security Functions

Authentication
- Local database
Encryption
- HTTPS
  AES-128
  AES-256
  SHA-256
Security Protocols
- SNMPv3
  SNMPv2c Trap
  HTTPS (TLS 1.3)

CAN Interface

No. of Ports
- 1
Connector
- Spring-type Euroblock terminal
Standards
- ISO 11898-2
Baudrate
- CANopen: 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 Mbps
  J1939: 250 kbps, 500 kbps, 1 Mbps
Terminator
- 120 ohms
  software configurable
Signals
- CAN_H, CAN_L, GND, Ext_CAN_H, Ext_CAN_L, CAN_Shield

CAN Software Features

Industrial Protocols
- CANopen master, J1939

CANopen

Mode
- Master
Max No. of Nodes
- 64
Max No. of Receive PDOs
- 256
Max No. of Transmit PDOs
- 256
SDOs
- Supported
Input Data Size
- 2048 bytes
Output Data Size
- 2048 bytes

J1939

Max. No. of Commands
- 256
Input Data Size
- 2048 bytes
Output Data Size
- 2048 bytes

EtherNet/IP

Mode
- Adapter
CIP Objects Supported
- Identity
  Message Router
  Assembly
  Connection Manager
  TCP/IP interface
  Ethernet link
  Port
Max. No. of Scanner Connections
- 4
Input Data Size
- 496 bytes
  (bytes/connection, total: 1984 bytes)
Output Data Size
- 496 bytes
  (bytes/connection, total: 1984 bytes)

Memory

microSD Slot
- Up to 32 GB (SD 2.0 compatible)

Power Parameters

Input Voltage
- 12 to 48 VDC
Input Current
- 455 mA (max)
Power Connector
- Spring-type Euroblock terminal

Relays

Contact Current Rating
- Resistive load: 2 A @ 30 VDC

Physical Characteristics

Housing
- Metal
IP Rating
- IP30
Dimensions
- 25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)
Weight
- 294 g (0.65 lb)

Environmental Limits

Operating Temperature
- -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

Safety
- EN 61010-2-201
  UL 61010-2-201
EMC
- EN 61000-6-2/-6-4
EMI
- FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF
Freefall
- IEC 60068-2-31
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
  IEC 60068-2-64

MTBF

Time
- 1,408,984 hrs hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
