Moxa CP-138E-A-I w/o cable

Moxa CP-138E-A-I w/o cable

Artikelnummer: CP-138E-A-I w/o cable
Kategorie: CP-118E-A-I/138E-A-I Series
Hersteller: Moxa

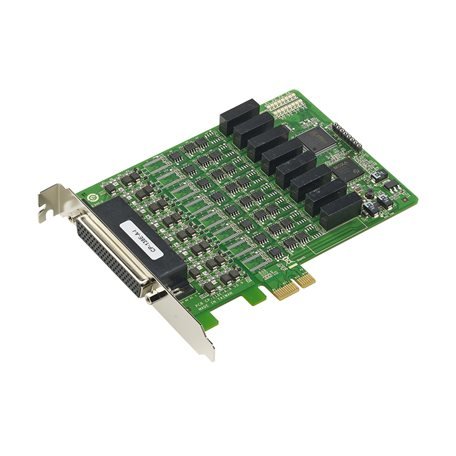

8-port RS-422/485 PCI Express board with 4 kV surge protection, 2 kV electrical isolation, 0 to 55°C operating temperature

836,43 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

CP-138E-A-I w/o cable

CP-118E-A-I/138E-A-I Series

8-port RS-422/485 PCI Express board with 4 kV surge protection, 2 kV electrical isolation, 0 to 55°C operating temperature

Serial Interface

Comm. Controller
- 16C550C compatible
Bus
- PCI Express 1.0
Connector
- DB78 female
FIFO
- 128 bytes
Max. No. of Boards per PC
- 8
No. of Ports
- 8
Serial Standards
- RS-422
  RS-485
Baudrate
- 50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None
  Even
  Odd
  Space
  Mark
Flow Control
- None
  XON/XOFF
Isolation
- 2 kV
Surge
- 4 kV

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND

DIP Switch Configuration

Serial Interface
- RS-422
  RS-485

Serial Software Features

Windows Drivers
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64)/2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers
- Linux kernel 5.x
  Linux kernel 4.x
  Linux kernel 3.x
  Linux kernel 2.6.x
  Linux kernel 2.4.x
UNIX Drivers
- Solaris 10
  UnixWare 7
  SCO OpenServer 5
  SCO OpenServer 6
Arm®-based Platform Support
- Linux Kernel 5.x / 4.x

Power Parameters

Input Current
- 2,356 mA @ 3.3 VDC

Physical Characteristics

Dimensions
- 107 x 136.9 mm (4.21 x 5.39 in)
Weight
- 139.7 g (0.31 lb)

LED Interface

LED Indicators
- Built-in Tx, Rx LEDs for each port

Environmental Limits

Operating Temperature
- 0 to 55°C (32 to 131°F)
Storage Temperature (package included)
- -20 to 85°C (-4 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class B
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 390,883 hrs
  221,331 hrs
Standards
- Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
