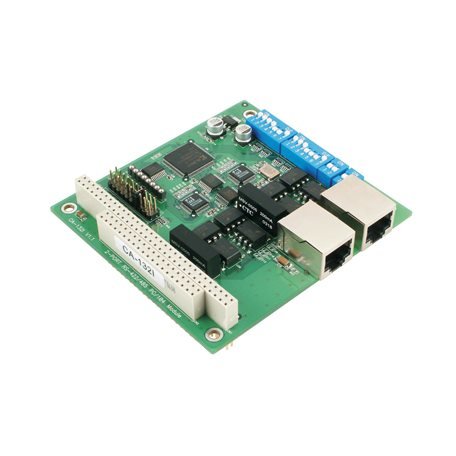

Moxa CA-132I

Artikelnummer: CA-132I
Kategorie: CA-132/132I Series
Hersteller: Moxa

PC/104 bus, 2-port RS-422/485 module with 2 kV optical isolation

215,40 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

CA-132I

CA-132/132I Series

PC/104 bus, 2-port RS-422/485 module with 2 kV optical isolation

Serial Interface

Comm. Controller
- 16C550C or compatible x 2
Bus
- PC/104 bus
Connector
- 20-pin box header
DIP Switches
- I/O base address, Interrupt vector
IRQ
- 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared for all ports)
FIFO
- 64 bytes
Max. No. of Boards per PC
- 8
No. of Ports
- 2
Serial Standards
- RS-422, RS-485
Baudrate
- 50 bps to 921.6 kbps
Data Bits
- 5, 6, 7, 8
Stop Bits
- 1, 1.5, 2
Parity
- None, Even, Odd, Space, Mark
Flow Control
- None, XON/XOFF
Isolation
- 2 kV

Serial Signals

RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND

Serial Software Features

Windows Drivers
- DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers
- Linux kernel 2.4.x, Linux kernel 2.6.x
UNIX Drivers
- FreeBSD 4.x, QNX 4, SCO UNIX, OpenServer

Power Parameters

Input Current
- 190 mA @ 5 VDC
Input Voltage
- 5 VDC

Physical Characteristics

Dimensions
- 90 x 96 mm (3.54 x 3.78 in)

LED Interface

LED Indicators
- Built-in Tx, Rx LEDs for each port

Environmental Limits

Operating Temperature
- 0 to 55°C (32 to 131°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 0.5 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
Environmental Testing
- IEC 60068-2-1
  IEC 60068-2-2
  IEC 60068-2-3
  IEC 60068-2-14
Vibration
- IEC 60068-2-6

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 536,288 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
