Moxa CB-602I-T w/o Cable

Moxa CB-602I-T w/o Cable

Artikelnummer: CB-602I-T w/o Cable
Kategorie: CB-602I Series
Hersteller: Moxa

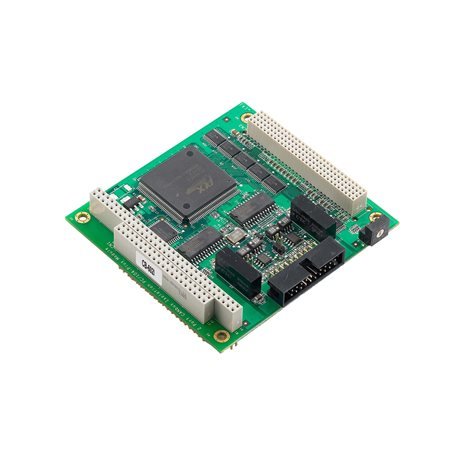

2-port CAN bus PC/104-Plus module, with isolation, -40 to 85°C operating temperature

483,83 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

CB-602I-T w/o Cable

CB-602I Series

2-port CAN bus PC/104-Plus module, with isolation, -40 to 85°C operating temperature

Serial Interface

Isolation
- 2 kV
Max. No. of Boards per PC
- 8

CAN Interface

Baudrate
- 10/20/50/125/250/500/800/1000 kbps, user-defined
Connector
- 20-pin box header
No. of Ports
- 2

Environmental Limits

Operating Temperature
- -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/24
EMI
- CISPR 32, FCC Part 15B Class B
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 248,563 hrs
Standards
- Telcordia (Bellcore), GB

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
